Post your 386 Speedsys results here

Topic actions

First post, by feipoa

User metadata
Rank l33t++
Rank
l33t++

As the topic suggests, post your Speedsys specs for your 386 system. I thought it would be nice to keep these all together for quick reference. Ideally, we want to see results with cache and memory timings optimised. Please also note which motherboard chipset, CPU, and FPU are used.

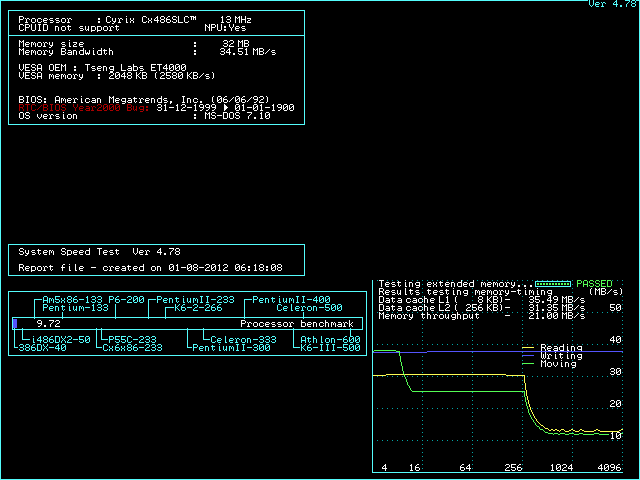

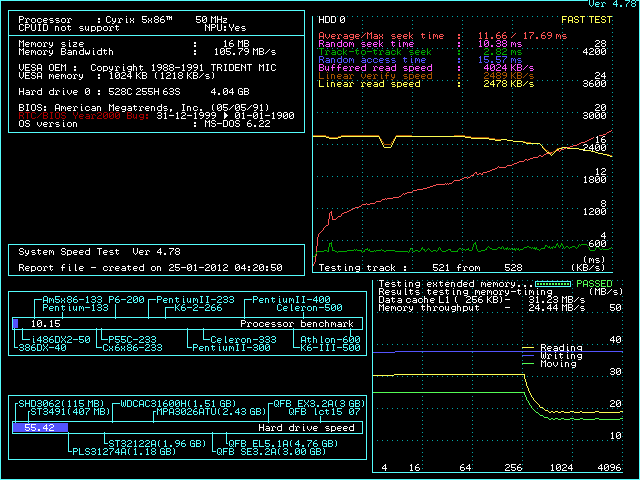

I have attached results from a CHIPS-based 386 and a SiS-based 386. The CHIPS board contains F82C351/355/358 chipsets, while the SiS contains a single SiS460. Both motherboards support 256 KB L2 cache, 32 MB of RAM, and a Cyrix/TI 486DLC. The SiS board also seems to work with a 486SXL w/8 KB of L1 cache, as shown by the L1 segment in Speedsys. The CHIPS board has a 486DLC inserted. Both results are with a Cyrix CX-83D87-40GP FPU.

I have only begun my journey into the world of 386 optimisation. What are the fastest 386 chipsets to work with a 486DLC-40 or 486SXL-40?

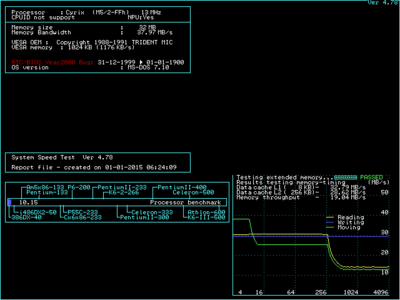

UMC481-based motherboard

Filename
File size
12.53 KiB
Views
10136 views
File license
Fair use/fair dealing exception

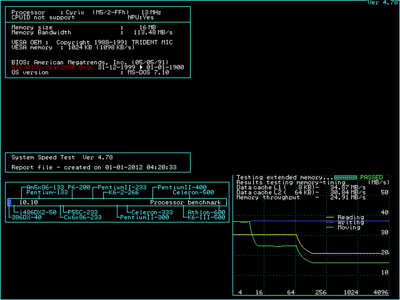

CHIPS351-based motherboard - Biostar MB-1340C

Filename
File size
12.71 KiB
Views
10135 views
File license
Fair use/fair dealing exception

Attachments

Last edited by feipoa on 2015-04-06, 12:14. Edited 9 times in total.

Plan your life wisely, you'll be dead before you know it.

Reply 2 of 325, by feipoa

User metadata
Rank l33t++
Rank
l33t++

Could you also note which chipset the motherboard was used and what CPU/FPU are installed? I have edited the original post to reflect this. I'm trying to get an idea for which motherboards have the best L2 and memory throughput.

Yes, that was a fantastic thread. I'm hoping this thread will mainly contain just the Speedsys results and system specifications. I've enclosed their results, however I don't know which chipset they used. I'm particularly interested in what chipset is in Old Thrashbarg's computer.

Attachments

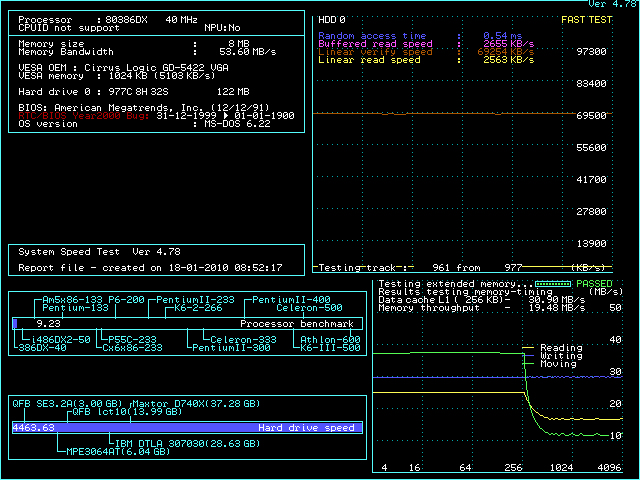

  • Elianda.gif
    Filename
    File size
    15.72 KiB
    Views
    15274 views
    File license
    Fair use/fair dealing exception
  • Old_Thrashbarg.jpg
    Filename
    File size
    58.51 KiB
    Views
    15275 views
    File license
    Fair use/fair dealing exception
  • RG100.jpg
    Filename
    File size
    286.05 KiB
    Views
    15275 views
    File license
    Fair use/fair dealing exception

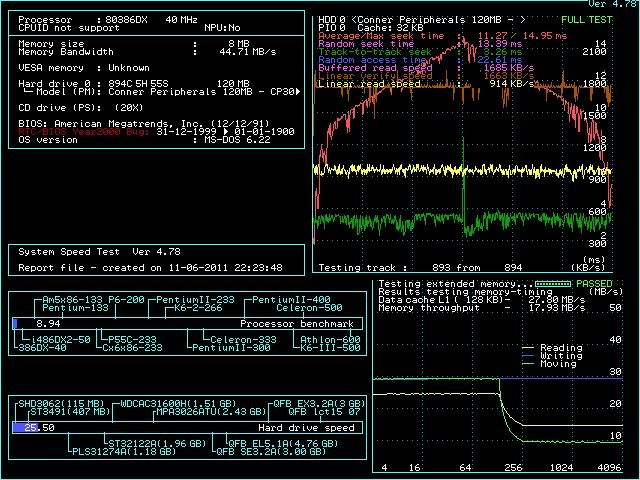

  • Chewhacca.jpg
    Filename
    File size
    90.63 KiB
    Views
    15275 views
    File license
    Fair use/fair dealing exception

Plan your life wisely, you'll be dead before you know it.

Reply 3 of 325, by Old Thrashbarg

User metadata
Rank Oldbie
Rank
Oldbie

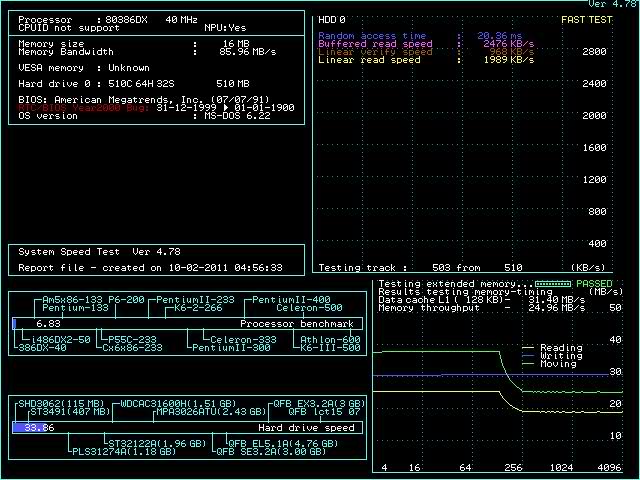

I'm particularly interested in what chipset is in Old Thrashbarg's computer.

Mine is the old Sis 'Rabbit' chipset, with the 85C310/320/330 + 85C206. It's a Chaintech 325/333/340SCD motherboard.

If it matters, it has a Cyrix x87DLC/33 copro, and was set for a 10mhz ISA bus speed.

Also, I have 20ns cache, so I couldn't tighten the latency settings all the way. IIRC I was running a 3-2-2-2 setting, but the BIOS also has options for 3-1-1-1 or 2-1-1-1 that I could use if I had faster cache. I can't remember what the memory wait states were set to... maybe if I get some time I'll pull the machine out and check.

Reply 4 of 325, by feipoa

User metadata
Rank l33t++
Rank
l33t++

Wow, so you can get your cache and maybe RAM timings even better? That is amazing. That board would be the clear winner of the 386 race.

I just so happen to have a 325SD/325SCD/333SCD/340SCD board, but about 30 traces have been entirely eaten away by the acid battery. It is the worst case of battery acid death I've seen on a board. Even the through-hole copper cylinders have been eaten away, which is the worst news. I will try to fix it, but if there are any centre layer contact points at the through-hole, connection won't be made. I'll try to stuff in some conductive silver and a copper wire lead for the though holes.

If you ever bring that board out again, could you send me high resolution photos of about 3" square around the area where the rechargeable battery once was? I need top and bottom of the board. I'd need this to follow the traces for areas on my board where the trace outline is no longer visible (due to the ISP). I have the official printed manual and could make a PDF of it if there is interest in this.

Plan your life wisely, you'll be dead before you know it.

Reply 5 of 325, by Old Thrashbarg

User metadata
Rank Oldbie
Rank
Oldbie

Pulling the board isn't a problem, but my digicam quit working awhile ago and I haven't got round to replacing it yet. Not that it would've been able to take a detailed photo like that anyway.

However, I'll try to remember that request for when I can get ahold of a new camera.

Reply 6 of 325, by dca2

User metadata
Rank Newbie
Rank
Newbie

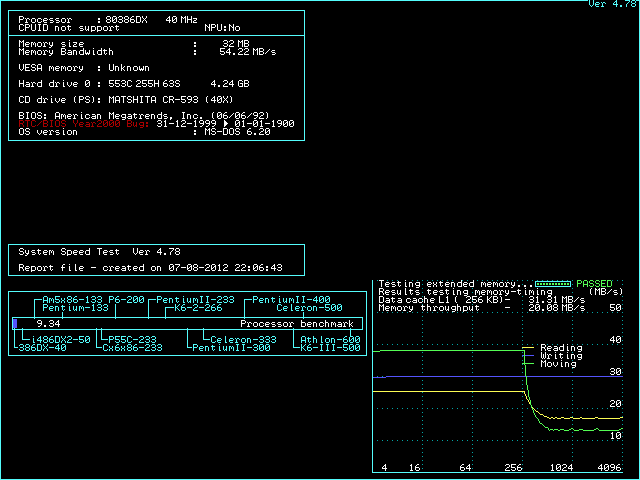

Motherboard: PC Chips M-321
Chipset: PC Chips 4L04F1282/4L04F1666/82C206
Cache: 256k 15ns WB (write-back chip installed)
Memory: 32M Parity
CPU: AM386DX/DXL-40
FPU: No

Attachments

  • M321.gif
    Filename
    File size
    9.81 KiB
    Views
    15089 views
    File comment
    M321+386DX40
    File license
    Fair use/fair dealing exception

Reply 7 of 325, by dca2

User metadata
Rank Newbie
Rank
Newbie

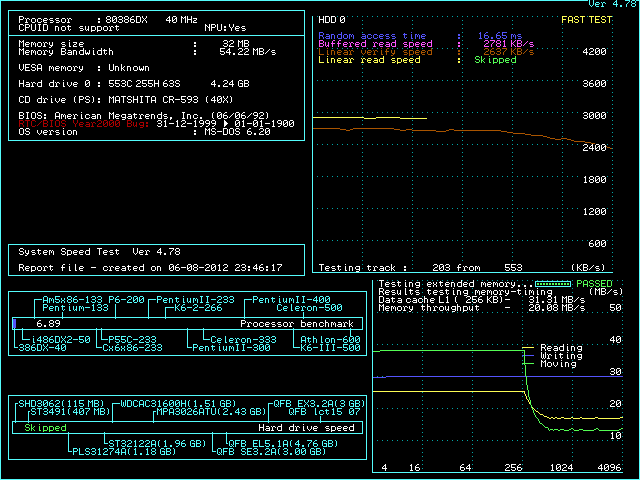

Motherboard: PC Chips M-321
Chipset: PC Chips 4L04F1282/4L04F1666/82C206
Cache: 256k 15ns WB (write-back chip installed)
Memory: 32M Parity
CPU: AM386DX/DXL-40
FPU: CX-83D87-40-GP

Attachments

  • M321_FPU.gif
    Filename
    File size
    14.35 KiB
    Views
    15088 views
    File comment
    M321 + 386DX-40 + CX83D87-40
    File license
    Fair use/fair dealing exception

Reply 8 of 325, by dca2

User metadata
Rank Newbie
Rank
Newbie

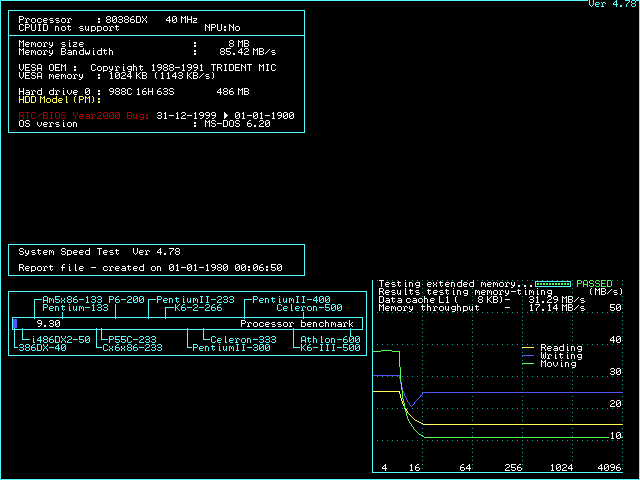

Motherboard: MX-386
Chipset: MACRONIX MX83C305FC/MX83C306FC
Cache: 8k integrated
Memory: 8M
CPU: AM386DX-40
FPU: No

Attachments

  • MX386.gif
    Filename
    File size
    9.81 KiB
    Views
    15086 views
    File comment
    MX-386 + 386DX-40
    File license
    Fair use/fair dealing exception

Reply 9 of 325, by dca2

User metadata
Rank Newbie
Rank
Newbie

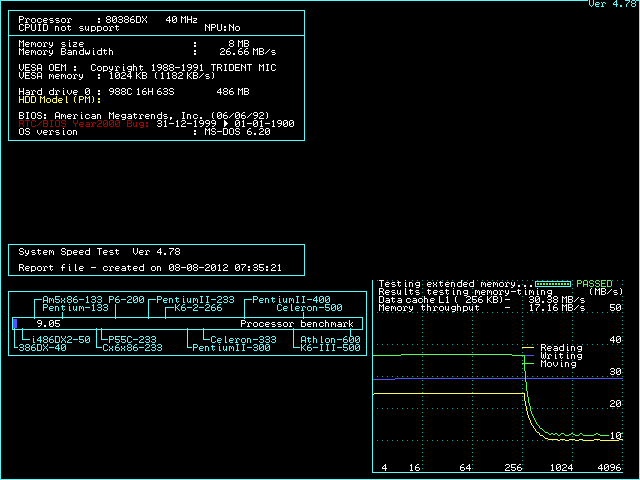

Motherboard: Unknown 386/486 hybrid
Chipset: Unichip U4800/SIS 85C206
Cache: 256k 20ns WB
Memory: 8M
CPU: AM386DX-40
FPU: No

Attachments

  • UN386.gif
    Filename
    File size
    10.05 KiB
    Views
    15084 views
    File comment
    Hybrid Mobo + 386DX-40
    File license
    Fair use/fair dealing exception

Reply 10 of 325, by dca2

User metadata
Rank Newbie
Rank
Newbie

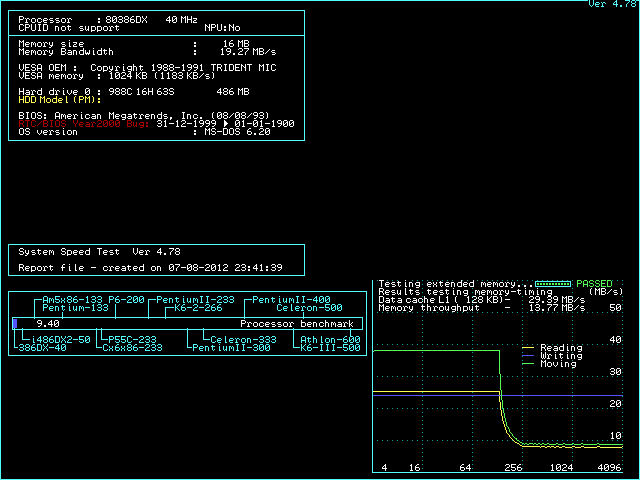

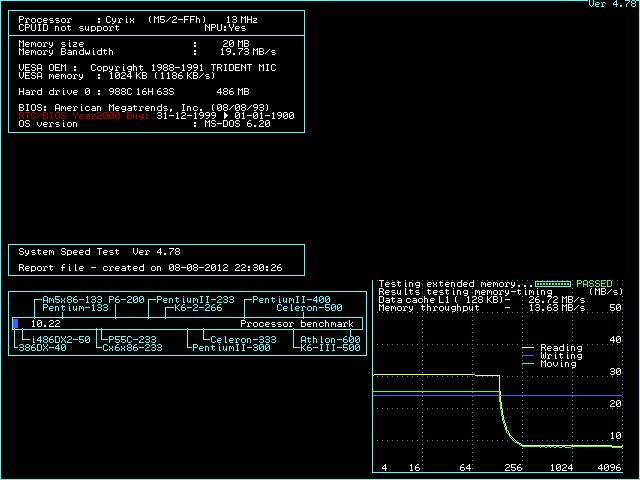

Motherboard: PC Chips M-326
Chipset: SARC RC4018A4 | UMC UM82C493F
Cache: 128k 20ns WT
Memory: 16M 60ns Parity
CPU: AM386DX-40
FPU: No

Attachments

  • M326.gif
    Filename
    File size
    9.1 KiB
    Views
    15083 views
    File comment
    M326 + 386DX-40
    File license
    Fair use/fair dealing exception

Reply 11 of 325, by dca2

User metadata
Rank Newbie

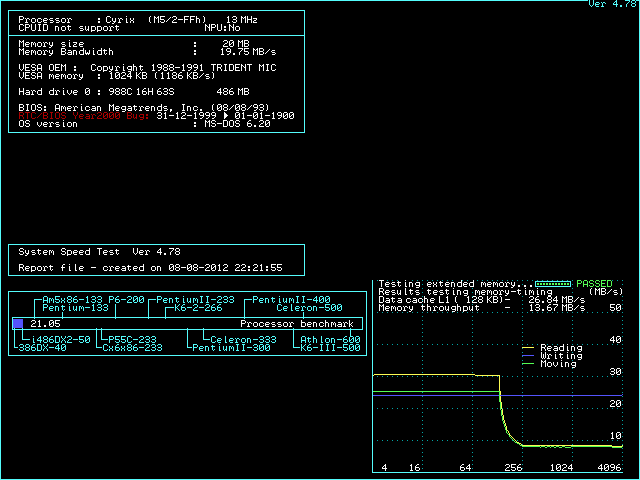

Rank
Newbie

Motherboard: PC Chips M-326
Chipset: SARC RC4018A4 | UMC UM82C493F
Cache: 128k 20ns WT
Memory: 20M Parity
CPU: TI486DLC-40 (1k L1-cache)
FPU: No

Attachments

  • M326_DLC.gif
    Filename
    File size
    9.88 KiB
    Views
    15082 views
    File comment
    M326 + 486DLC-40
    File license
    Fair use/fair dealing exception
Last edited by dca2 on 2012-08-09, 13:47. Edited 1 time in total.

Reply 12 of 325, by dca2

User metadata
Rank Newbie
Rank
Newbie

Motherboard: PC Chips M-326
Chipset: SARC RC4018A4 | UMC UM82C493F
Cache: 128k 20ns WT
Memory: 20M Parity
CPU: TI486DLC-40 (1k L1-cache)
FPU: CX-87DLC-40QP

Attachments

  • M326_87D.gif
    Filename
    File size
    9.89 KiB
    Views
    15079 views
    File comment
    M326 + 486DLC-40 + 87DLC-40QP
    File license
    Fair use/fair dealing exception

Reply 13 of 325, by elianda

User metadata
Rank l33t
Rank
l33t

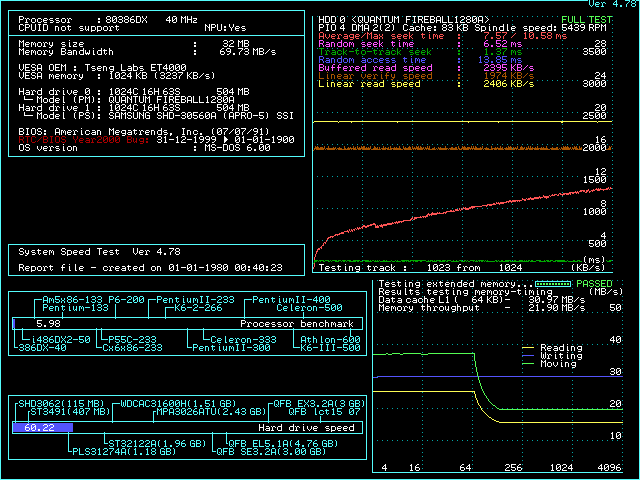

Here are two systems I have:
CPU: AMD 386DX-40 with i387-33
Mainboard: ETEQ386-8
RAM: 32 MB (8 x 4 MB SIMM)
Graphics card: TSENG ET4000 with 1 MB and Truecolor DAC (image similar)
Network card: 3Com 3C509b / 10 MBit/s (image similar)
Soundcards: SB 16 ASP (DSP 4.05) with WaveBlaster (CT1900) and Gravis Ultrasound PnP with 8 MB
HDD: Quantum Fireball 1280A, Samsung SHD-30560A
CD: Sony CDU-33A double speed drive on proprietary controller
Disk: 3.5" and 5.25" drive

CPU: AMD 386DX-40 with Cyrix FasMath CX83D87-40-GP
Mainboard: SiS chipset
RAM: 32 MB (8 x 4 MB SIMM)
Graphics cards:
TSENG ET4000 with 1 MB and Truecolor DAC (image similar)
Number Nine GXiTC with Acumos2 VGA part 512 kB and TIGA with 4 MB framebuffer and 1 MB instruction RAM.
Network card: 3Com Etherlink III
Soundcards:
Primax Altrasound (identical to GUS CD3) with 1 MB
Terratec EWS64S with 18 MB
Mass storage: Adaptec 1542B with Micropolis 4421 HDD (1 GB useable)
5.25" and 3.5" HD disk drive attached to the Adaptec controller
Serial/Parallel port card with 16450 UARTs.
Sony CDU-33A doublespeed CD-ROM on proprietary controller card.
Seventeam ST-221WHT AT power supply

Here are also links to images of the hardware: http://mail.lipsia.de/~enigma/neu/retropcs.html

I have no speedsys result screen from the Ali chipset 386 system though.
