Postby GL1zdA » 2009-6-18 @ 23:01

ATX Note: Some (perhaps all) Dell ATX boards pre-Pentium4 have a proprietary ATX power pin-out. Any ATX PSU will plug in, but the board will burn up if you power up unless it's the Dell pinout.
http://pinouts.ru/Power/dell_atxpower_pinout.shtml

Intel iSBC 386AT-25

486 Motherboards

Intel 403E

Classic/PCI Expandable Desktop (Ninja)
- Socket 3, 420EX (Aries), Baby AT

Classic/PCI i486 (Alfredo)
manual PDF
- Socket 3, 420TX (Saturn), Baby AT

Pentium Motherboards
Classic/PCI Pentium (Batman)
manual PDF
- Socket 4, 430LX (Mercury), Baby AT
- There are a few versions of this board. Hard to find info. Some have SCSI onboard.
- ISA secondary IDE (fairly sure). Old-style direct mapped cache.

Premiere/PCI LC (Robin LC)

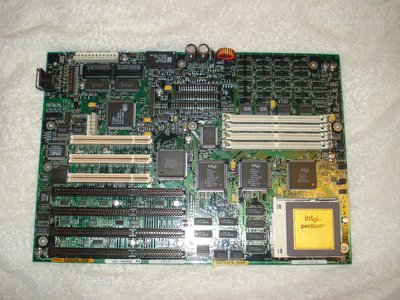

Premiere/PCI LC


Premiere/PCI II (Plato)
- Socket 5, 430NX (Neptune), Baby AT
- Very similar to "Batman" mobo but with the slightly different chipset and socket.

Advanced/ZP (Zappa)
Manual (doc)
- Socket 5, 430FX (Triton), Baby AT

Advanced/EV (Endeavor)
manual PDF
- Socket 5 or 7, 430FX, Baby AT
- Optional S3 Trio64 1MB (up to 2MB) and/or Creative Vibra 16S audio

Advanced/AS (Atlantis)
manual PDF
- Socket 7, 430FX, Baby AT
- Optional ATI 264CT video with 1MB (up to 2MB) and/or Crystal CS4232 audio
- A lot like Endeavor.

Advanced/ATX (Thor)
manual PDF
- Socket 7, 430FX, ATX
- Optional S3 Trio64V+ 1MB (up to 2MB) and/or Crystal CS4232 audio
- Seems to be Intel's first ATX mobo.

TE430VX (Tiger Eye)
manual PDF
- Socket 7, 430VX (Triton III), ATX
- optional S3 Trio64V+ 1MB (up to 2MB) and/or Creative Vibra 16C audio

AG430HX (Agate)
manual PDF
- Socket 7, 430HX (Triton II), ATX
- ATI 264GT graphics w/ 2MB EDO and optional Yamaha OPL YMF701 audio

TC430HX (Tucson)
manual PDF
- Socket 7, 430HX, ATX
- optional S3 Trio64V+ or S3 ViRGE with 2MB and/or Yamaha OPL3-SA and OPL4-ML (option)

Advanced/ML (Marl)
manual PDF
- Socket 7, 430HX, ATX

AN430TX (Anchorage)
manual PDF
- Socket 7, 430TX, ATX
- optional ATI Rage II+ and/or Yamaha OPL3-SA3 & OPL4-ML (option)
- optional video capture and TV-out

LT430TX (Lone Tree)
manual PDF
- Socket 7, 430TX, ATX
- optional ATI Rage II+ and/or Yamaha OPL3-SA3 & OPL4-ML (option)
- OEM AN430TX w/o some options



Pentium Pro Motherboards
Performance/PR PR440FX (Providence)
manual PDF
- Dual Socket 8, 440FX, ATX
- Adaptec 7880 SCSI, optional Intel Etherexpress Pro/100B LAN
- optional Crystal CS4236 audio

Performance/VS VS440FX (Venus)
manual PDF
- Socket 8, 440FX, ATX
- Optional Crystal CS4236 audio
- some have USB
- I own one of these. A great Pentium Pro mobo that's very stable and even overclockable with an undocumented multiplier setting. Only downside is rather slow BIOS memory counting.

Performance/AU (Aurora)
manual PDF
- Socket 8, 450KX, ATX

AP440FX (Apollo / Krakatoa)
- Socket 8, 440FX, LPX



Pentium II Motherboards
PD440FX (Portland)
manual PDF
- Slot 1, 440FX, ATX. SCSI
- optional Yamaha OPL3-SA3 and OPL4-ML (option)

AL440LX (Atlanta)
manual PDF
- Slot 1, 440LX, ATX
- optional Yamaha OPL3-SA3 and OPL4-ML (option)

DK440LX (Dakota)
manual PDF
- Dual Slot 1, 440LX, ATX.
- Adaptec 7895 SCSI
- optional Intel 82557 LAN and optional Crystal CS4236B audio

SE440BX-1 (Seattle)
manual PDF
- Slot 1, 440BX, ATX. Pentium 2 - 3 (Katmai P3).

SE440BX-2 (Seattle 2)
product guide PDF
manual PDF
- Slot 1, 440BX, ATX. Pentium 2,3.
- Coppermine processors on rev 754552-200 or later, 754558-200 or later, A01450-200 or later.

SE440BX-3 (Seattle 3)
manual PDF
- Slot 1, 440BX, ATX. Pentium 2,3. Coppermine.
- OEM only

RC440BX (Rochester)
manual PDF
- Slot 1, 440BX, uATX.
- Katmai P3 support on 718163-208 or later, 723888-205 or later, 724299-205 or later
- NVIDIA RIVA 128ZX w/ 8MB
- Sound Blaster AudioPCI 64V

SR440BX (Sun River)
promo PDF
manual PDF
Anandtech review (A-)
- Slot 1, 440BX, uATX. Pentium 2/3.
- NVIDIA RIVA TNT w/ 16MB
- Sound Blaster AudioPCI 64V
Last edited by GL1zdA on 2018-3-21 @ 10:21, edited 30 times in total.
User avatar
GL1zdA
Oldbie

Posts: 746
Joined: 2008-2-29 @ 10:41
Location: Warsaw, PL

Re: Intel-built 486/Pentium/PPro/PII motherboard guide

Postby GL1zdA » 2009-6-19 @ 06:18

I still haven't found time to use my Intel 'Ninja' 486 motherboard. Does anyone know what for is this funny little PSU connector on this board? Also own 2 AN430TX, one with ATI onboard VGA and one without.
User avatar
GL1zdA
Oldbie

Posts: 746
Joined: 2008-2-29 @ 10:41
Location: Warsaw, PL

Re: Intel-built 486/Pentium/PPro/PII motherboard guide

Postby swaaye » 2009-6-19 @ 06:24

I'd say that's an aux power connector. I'm gonna guess that it's optional. Give it a try. :)

There's something very similar on Intel ATX mobos rather often.

BTW, it would be cool to get a photo of that Ninja mobo so I can add it here.
swaaye
Moderator

Posts: 7106
Joined: 2002-7-22 @ 21:24
Location: WI, USA

Re: Intel-built 486/Pentium/PPro/PII motherboard guide

Postby Old Thrashbarg » 2009-6-19 @ 13:53

On my IBM, that extra power connector goes to the riser card, so I suspect it might provide power for the PCI slots or something. Supplementary power, maybe, to take some of the load of the main power connectors? Not sure, but it would make sense.

Also, with some of the ATX Intel boards you have to be very careful. The ones made for Dell, like many of the SE440BX-3's, have the same additional power connector, but it's for a proprietary Dell PSU, and that little connector carries the 3.3V lines. You can physically plug a standard ATX into the main power connector, but the pins are switched around in a non-standard layout, so you will fry the board if you don't use a Dell PSU (or an ATX modified to the Dell pin layout).
Old Thrashbarg
Oldbie

Posts: 1607
Joined: 2009-6-08 @ 14:30
Location: Central FL

Re: Intel-built 486/Pentium/PPro/PII motherboard guide

Postby swaaye » 2009-6-19 @ 14:50

Ah yes that's right. I forgot about Dell's proprietary ATX power connections. The SE440BX that my brother had was one of those and I sold it with the PSU when it came time to upgrade. Will add that little tidbit.

I'm not sure if that started earlier than 440BX though.


As for that aux power connection, it looks like quite a few of the above Pentium mobos have it as well. And considering it's right up against the PCI slots, yup I think it's supplementary PCI power for whatever reason....
swaaye
Moderator

Posts: 7106
Joined: 2002-7-22 @ 21:24
Location: WI, USA

Re: Intel-built 486/Pentium/PPro/PII motherboard guide

Postby Old Thrashbarg » 2009-6-19 @ 15:08

I'm not sure if that started earlier than 440BX though.


It started back when Dell switched to the ATX form factor, in the late Pentium 1 era. I believe the Dimension P133 was one of the first.
Old Thrashbarg
Oldbie

Posts: 1607
Joined: 2009-6-08 @ 14:30
Location: Central FL

Re: Intel-built 486/Pentium/PPro/PII motherboard guide

Postby GL1zdA » 2009-6-24 @ 14:00

swaaye wrote:BTW, it would be cool to get a photo of that Ninja mobo so I can add it here.

User avatar
GL1zdA
Oldbie

Posts: 746
Joined: 2008-2-29 @ 10:41
Location: Warsaw, PL

Re: Intel-built 486/Pentium/PPro/PII motherboard guide

Postby Amigaz » 2009-6-24 @ 14:09

GL1zdA wrote:
swaaye wrote:BTW, it would be cool to get a photo of that Ninja mobo so I can add it here.



Snatched cache and Dallas DS rtc/cmos chip..."shivers" :shocked:

User avatar
Amigaz
Oldbie

Posts: 1696
Joined: 2007-3-03 @ 09:01
Location: Stockholm, Sweden

Re: Intel-built 486/Pentium/PPro/PII motherboard guide

Postby GL1zdA » 2009-6-24 @ 14:53

Amigaz wrote:
GL1zdA wrote:
swaaye wrote:BTW, it would be cool to get a photo of that Ninja mobo so I can add it here.



Snatched cache

I probably take some cache from another board. There will be only problem with the dirty bit cache.

Amigaz wrote:and Dallas DS rtc/cmos chip..."shivers" :shocked:

Well, if you want an Intel mobo you have to accept them the way they are :)
User avatar
GL1zdA
Oldbie

Posts: 746
Joined: 2008-2-29 @ 10:41
Location: Warsaw, PL

Re: Intel-built 486/Pentium/PPro/PII motherboard guide

Postby swaaye » 2009-6-24 @ 23:41

Thanks for the photo, GL1zdA.
swaaye
Moderator

Posts: 7106
Joined: 2002-7-22 @ 21:24
Location: WI, USA

Re: Intel-built 486/Pentium/PPro/PII motherboard guide

Postby retro games 100 » 2009-6-25 @ 10:48

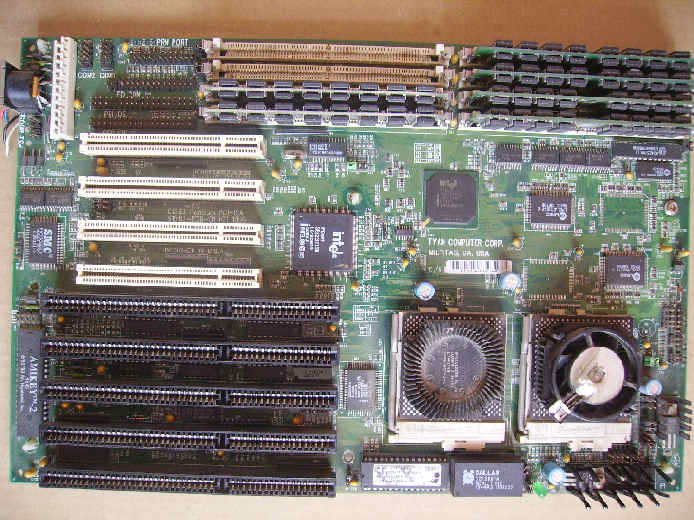

The Tyan S1563D is a dual socket 7 processor mainboard, based on the Intel 430HX(II) chipset. Thought you might like to see a pic.
