Reply 9240 of 27186, by xjas

User metadata
Rank l33t
Rank
l33t

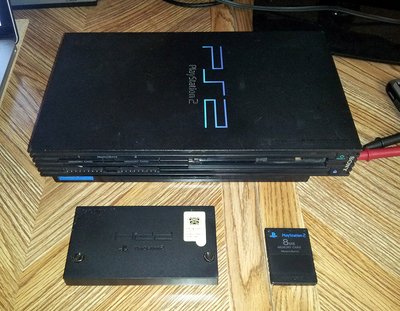

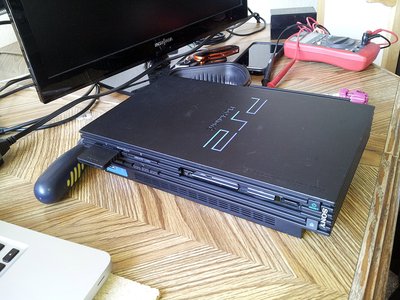

I finally got a HDD/network adapter and Free McBoot memory card for my O.G. fat PS2, so I busted it out. This thing's had a hard life & was apparently treated pretty rough by previous owners, but it works 100% flawlessly and the DVD drive is super quiet, so I want to keep it going and give it a comfortable, gentle old age. 😀 Naturally "installing a HDD" turned into a full-on teardown and cleaning.

Filename
File size
266.53 KiB
Views
1245 views
File license
Fair use/fair dealing exception
Filename
File size
154.62 KiB
Views
1245 views
File license
Fair use/fair dealing exception

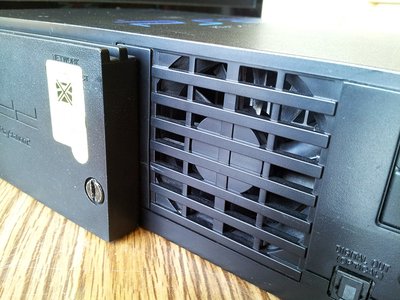

^^ Sony, helpfully warning you not to plug a phone jack into the network port. I guess somebody had to try it... Incidentally this is a JDM network adapter, the North American one includes a modem. I figured the chances of me using a modem on a PS2 are literally 0%, and this was local and cheap.

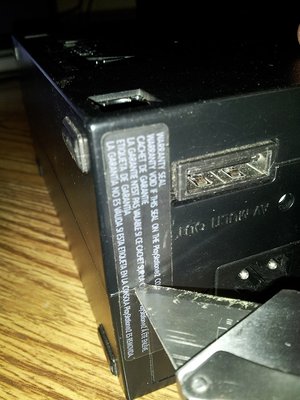

Step 1: void the warranty. It's amazing how many of my dumb projects begin with this step.

Filename
File size
190.57 KiB
Views
1245 views
File license
Fair use/fair dealing exception

Got it apart, and:

Filename
File size
254.76 KiB
Views
1245 views
File license
Fair use/fair dealing exception

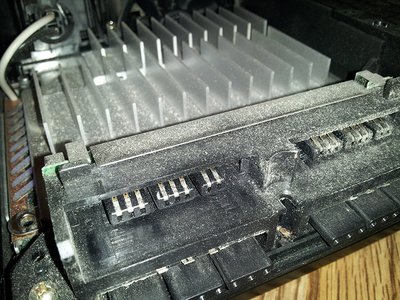

Eww...

Filename
File size
234.84 KiB
Views
1245 views
File license
Fair use/fair dealing exception

EWW...

Last edited by xjas on 2018-07-19, 01:28. Edited 1 time in total.

twitch.tv/oldskooljay - playing the obscure, forgotten & weird - most Tuesdays & Thursdays @ 6:30 PM PDT. Bonus streams elsewhen!

Reply 9241 of 27186, by xjas

User metadata
Rank l33t
Rank
l33t
Filename
File size
200.07 KiB
Views
1245 views
File license
Fair use/fair dealing exception

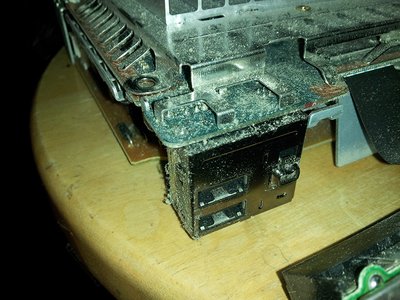

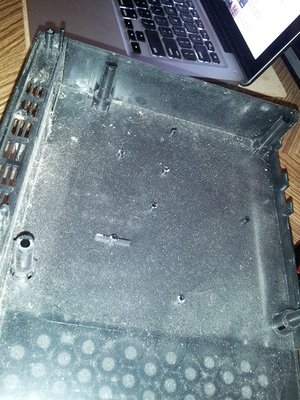

OGOD.

Filename
File size
225.13 KiB
Views
1245 views
File license
Fair use/fair dealing exception

Hell. No.

...actually it wasn't that bad, but I figure that dust isn't helping anything. The outer case was easy to clean:

Filename
File size
124.73 KiB
Views
1245 views
File license
Fair use/fair dealing exception

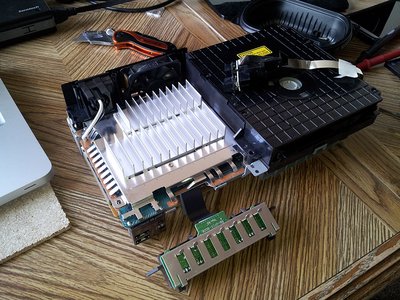

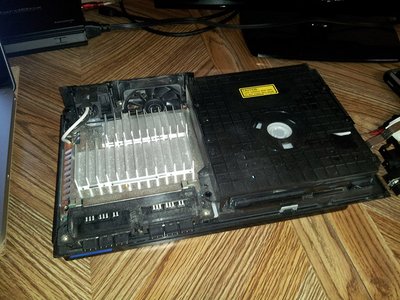

The inside is kind of a board sandwich. My original idea was to disassemble everything, vacuum it out, replace the 2032 battery and re-apply all the thermal goo, but when I saw how tightly it was put together and considering it was working perfectly when I pulled it apart, I sanely decided to scale back my plans.

Incidentally If your PS2 isn't keeping time and you want to replace the clock battery, it's predictably located on the motherboard between both RF shields. You pretty much have access to it at the very last stage of total disassembly. Sheer genius, Sony.

Even though I stopped taking it apart at this stage, the vacuum & canned air blaster did a pretty good job of the "organ block":

Filename
File size
321.31 KiB
Views
1245 views
File license
Fair use/fair dealing exception

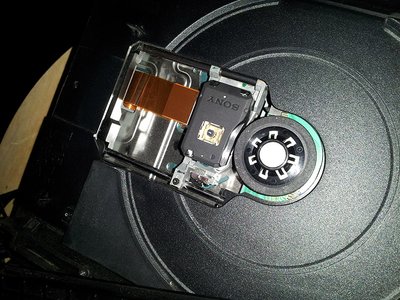

And I took the opportunity to clean the DVD tray & dust off the laser:

Filename
File size
242.64 KiB
Views
1245 views
File license
Fair use/fair dealing exception

twitch.tv/oldskooljay - playing the obscure, forgotten & weird - most Tuesdays & Thursdays @ 6:30 PM PDT. Bonus streams elsewhen!

Reply 9242 of 27186, by xjas

User metadata
Rank l33t
Rank
l33t

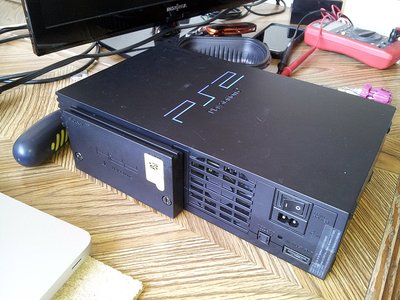

Back together and looking good!

Filename
File size
265.92 KiB
Views
1245 views
File license
Fair use/fair dealing exception
Filename
File size
260.29 KiB
Views
1245 views
File license
Fair use/fair dealing exception
Filename
File size
183.86 KiB
Views
1245 views
File license
Fair use/fair dealing exception

No HDD in there yet - I seem to have depleted my stash of spare IDE drives lately, although I have an 80GB in a test machine that'll go in there once I dig it out. You can order 3rd-party SATA adapters off Ebay but like I said this was local, and cheap.

Another system modded!

twitch.tv/oldskooljay - playing the obscure, forgotten & weird - most Tuesdays & Thursdays @ 6:30 PM PDT. Bonus streams elsewhen!

Reply 9243 of 27186, by Merovign

User metadata
Rank Member
Rank
Member

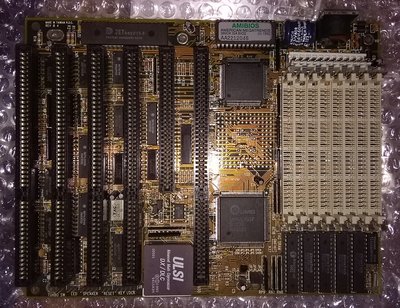

Need to desolder that bad battery and clean up a little corrosion, but I've seen worse. In case it's not clear, it's an AMD 386/40. Odd layout, very compact, lots of ISA slots. I *might* be able to fit a 1/2 AA 3.6V battery in there, but probably not a socket for one.

Filename
File size
862.57 KiB
Views
1217 views
File license
Fair use/fair dealing exception

*Too* *many* *things*!

Reply 9244 of 27186, by peido

User metadata
Rank Member
Rank
Member
xjas wrote:

OGOD.

Hell. No.

...actually it wasn't that bad, but I figure that dust isn't helping anything.

It looked really bad, but turned out great.

Reply 9245 of 27186, by canthearu

User metadata
Rank Oldbie
Rank
Oldbie

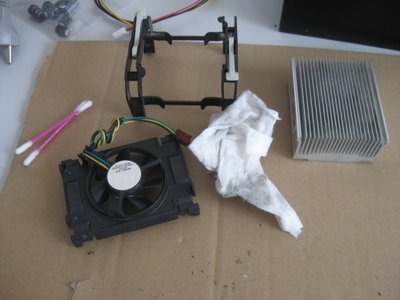

I received my pair of 600mhz P-III processors with 100mhz FSB, so I used one to upgrade my voodoo 3 3000 card system with Asus P2B motherboard.

Not a bad increase over the 350mhz processor I originally had in it.

Reply 9246 of 27186, by liqmat

User metadata
Rank l33t
Rank
l33t
lvader wrote:

I’m quite interested in this because I have a couple of case covers that need a paint job. i havn’t experimented yet but getting the right paint gloss level and colour is probably key.

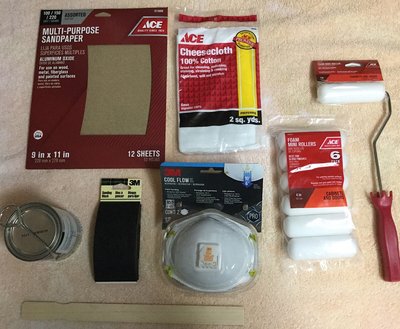

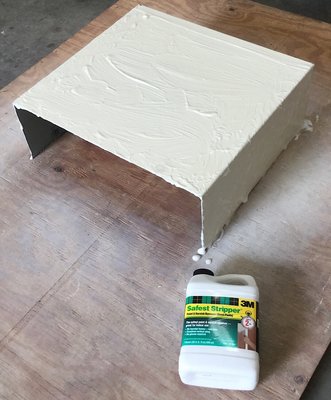

You know that nightmare where you are running down a hallway and the hallway keeps getting longer and longer? Yeah, I'm still running.

Filename
File size
709.11 KiB
Views
1122 views
File license
Fair use/fair dealing exception
Filename
File size
197.21 KiB
Views
1122 views
File license
Fair use/fair dealing exception
Filename
File size
371.43 KiB
Views
1122 views
File license
Fair use/fair dealing exception

Reply 9247 of 27186, by xjas

User metadata
Rank l33t
Rank
l33t
peido wrote:

It looked really bad, but turned out great.

Thanks! Much happier knowing it's not a cake of filth & dust on the inside. 😀 Incidentally the 80GB HDD I wanted to put in it wouldn't fit (the spacing between the IDE & Molex connectors was wrong), but I found an empty 40GB Maxtor that would work, so stuffed it in. Not as much space as I wanted, but should be enough room for ~90% of the games I play regularly as well as some other misc. homebrew & ISOs.

Today I busted out my SUPER rusty lockpicking skills and managed to open one up. It was on this:

Filename
File size
192.97 KiB
Views
1097 views
File license
Fair use/fair dealing exception

For some reason this thing was locked despite not having a laptop attached, and that meant no laptop could be attached, rendering it useless. Which is probably why I found it in the bin. Well, I wouldn't have won any awards for style or technical execution, but I got it open (it's not a very complicated lock.) I probably haven't picked a lock since high school and was never that good, but handy to know I can still do it.

...as to why I knew how to pick locks back in high school, let's not even go there. 😜

twitch.tv/oldskooljay - playing the obscure, forgotten & weird - most Tuesdays & Thursdays @ 6:30 PM PDT. Bonus streams elsewhen!

Reply 9248 of 27186, by PcBytes

User metadata
Rank Oldbie
Rank
Oldbie

Your 80GB drive is likely an WD, and those won't fit in the network adapter unless you hack the metal shield. There's a guide on the internet on how to do that.

"Enter at your own peril, past the bolted door..."
Main PC: i5 3470, GB B75M-D3H, 16GB RAM, 2x1TB
98SE : P3 650, Soyo SY-6BA+IV, 384MB RAM, 80GB

Reply 9249 of 27186, by peido

User metadata
Rank Member
Rank
Member
xjas wrote:

Incidentally the 80GB HDD I wanted to put in it wouldn't fit (the spacing between the IDE & Molex connectors was wrong), but I found an empty 40GB Maxtor that would work, so stuffed it in. Not as much space as I wanted, but should be enough room for ~90% of the games I play regularly as well as some other misc. homebrew & ISOs.

PcBytes wrote:

Your 80GB drive is likely an WD, and those won't fit in the network adapter unless you hack the metal shield. There's a guide on the internet on how to do that.

I disassembled my PS2 network adapter and now I can pull the connectors to make them fit in any hard drive. I just have to be careful when handling.

Reply 9250 of 27186, by ultra_code

User metadata
Rank Oldbie
Rank
Oldbie

Oh. My. God.

A lot of sh-*cough* has happened in the past two/three days.

xjas wrote:

Back together and looking good!

No HDD in there yet - I seem to have depleted my stash of spare IDE drives lately, although I have an 80GB in a test machine that'll go in there once I dig it out. You can order 3rd-party SATA adapters off Ebay but like I said this was local, and cheap.

Another system modded!

It's funny, because the same day you posted this (Wednesday), I too just finished soft-modding my fat model 30001 PS2 following this awesome guide (note: you have to use the copy of FreeMCBoot he provides; I believe it's a custom version with extra files that enables access to the FreeHDBoot's apps while running FreeMCBoot when you follow his steps).


As you can tell, the first game I loaded up onto the 250GB Seagate HDD -

PcBytes wrote:

Your 80GB drive is likely an WD, and those won't fit in the network adapter unless you hack the metal shield.

RIP my 500GB Western Digital IDE HDD I originally bought for it

- was Metal Gear Solid 3: Snake Eater. Man, it's like night-and-day on the hard drive. I noticed when playing the game off the disc slower loading times, as well as distasteful stuttering. I think my PS2's optical drive is feeling it's age. I mean, when I pop open the disc tray, it doesn't open up all the way and immediately stop; instead, as it is about to finish opening, it begins to sound like it's rubbing up against something and slows down a bit and then stops. It works, but obviously not as it should.

Any who, what a great game. I think though I need a better analog-to-HDMI converter and a better PS2 display cable, because I noticed weird not-game-induced effects while I played. Besides, I bet the image quality would be much, much better too. Thank you again xjas for sharing with me that video dealing with the PS2's video:

xjas wrote:

Here's more info than you ever thought you wanted about the PS2's video modes (including how to fix it 'blind' if you set it to the wrong mode and can't see what you're doing on the TV.)

It's going to come in handy still. 😀 Regardless, I'm happy with the result.

Afterwards, I got to trying to update my new Windows Vista Ultimate installation on my high-end Asus P5E WE Professional motherboard workstation w/ Core 2 Quad Q9850, which I plan to use to test components and such - a test bench in a PC case, as it were.


Up to that point, like I was a month ago, I was stuck trying to update Vista to SP1 from the Windows Updater, but it seemed as though Vista would not download and install SP1 until I installed the LAN driver for the board (the download link for the driver on Asus's website doesn't work; I have been trying to work with Asus for the past month to get me that damn driver, and am still waiting 😠 ; if that doesn't work out, though, the last chance I have is to download a seemingly newer version of the driver straight from Marvell, the maker of the driver that Asus "has" for their LAN ports on the board, and hope it's what I need). So, I finally decided to just bypass Windows Updater and download the SP from Microsoft directly and try to install it that way.


Well, what do you know, it work! I was finally able to update to SP1, and from there update to SP2 using Windows Updater, and because of all of that, install Google Chrome and get all of my bookmarks (just in case). I also went ahead and installed IE9, the last version for Vista. Again, though, after all of that, I'm at odds with Windows Updater. The newer version Updater that was installed after SP2 continually hangs at "searching for updates" for hours, and I think, like with trying to install SP1, it has to do with using the generic Ethernet driver provided with VIsta. My troubles never seem to end. 😀

Moving on, yesterday, I got my replacement Socket 7 board to be used instead of that poor Asus TX97-XE board I had to return - an Intel LT430XT. And man, my impressions of it are pretty good. Sure, the front I/O is really weird and unconventional, the layout of the RAM slots is weird too, there's a large heatsink for the VRM (?) (and man, that heatsink will get so hot you can cook an egg on it), and the BIOS is much less feature-packed than that Asus board (just from looking through the screenshot-filled manual that Asus provided for that motherboard; really wanted that cache-disabling feature to be able to slow down the system to 386 and 486 speeds, but I think there are software solutions for that so, *shrug*, I'll deal with it), but it's still a solid board overall. Can't find anything inherently wrong with it.

The sad thing, though, is that there are like no other Socket 7 boards on ebay of the same caliber like the Asus TX97-XE and few like my Intel LT430XT that support SDRAM, have the Intel chipset, and are of the ATX form factor and have an ATX power connector 😢 . There's actually this website I found while looking elsewhere for such a motherboard called Interloper.com that sells some boards that match these specifications, but likewise, only a few (mostly weird-name brands). They actually sell the same exact Intel LT430XT that I bought for less than I paid for it (I forgot about it, and only after I bought the board did I remember 🤣 ), and actually have this OP-looking ALI-chipset Microstar board for a cool crisp $350 if you're interested. Actually, while just looking throw my bookmarks found this other site selling an Asus TX97-X motherboard (basically a TX97-XE with EDO SIMM and SDRAM DIMM slots) for only $30 more than I spent on this Intel board. Now I'm kinda angry at myself. 😠 ... 🤣 Too late now.

Anywho, I spent a couple of hours cleaning the board, putting it together with the other components (Pentium MMX 233MHZ, 32MB SDRAM, Cirrus Logic GD5446 as recommended by PhilsComputerLab with what appears to be the max number of onboard memory chips, AWE64 Value, and an 8GB SanDisk Ultra CF card) -


- updating the BIOS, installing MS-DOS 6.22 (after finding out that to be able to have 2GB partitions instead of 0.5GB FAT16 ones, I had to enable "LBA mode" for the CF card in the BIOS), and finally, to truly test out the capabilities of the machine, I installed The Need for Speed SE and played that for an hour or two.


Was the FPS bad? Yes, yes it was (go figure with only a 2D card in DOS and with medium/high settings at 640x480), between I would say 15-60-like FPS. Is the game bloody challenging? Yes, very. But, it was still very fun, and was a good demonstration that everything worked. I was pleasantly surprised, though, to find the in-game videos to actual display at all.


On my P3 system, I can hear the videos' audio, but nothing is displayed. 🙁 I know that there is supposedly a hex edit you can do to fix TNFS's weird video behavior, which is technically for a different problem than mine, but I have yet to try it, though.

Finally, after I got done doing all of that with my P1 setup, I took time to turn on and configure an Xbox 360 E I bought from ebay. All seems to work. 😀


I plan to use this to play Xbox 360 and Original games that are not supported on my Xbox One S. I also bought a new 500GB HDD to replace its 250GB 'cause, you know, make it balla, and to hopefully completely meet all of my storage needs for this console. 😀

*sigh* Okay, still there? I applaud you. That's all I have to say. I spent probably 2+ hours typing all of this. Hope you enjoyed. 😀

Now, if you excuse me, I have some Jojo's Bizarre Adventures to watch and other work to do.

Last edited by ultra_code on 2018-11-05, 21:59. Edited 1 time in total.

Builds

Reply 9251 of 27186, by appiah4

User metadata
Rank l33t++
Rank
l33t++

Dissassembled my new Sound Canvas SD-35, which was surprisingly clean on the inside despite all the dirt and grime on the outside. Replaced the coin battery, fixed the Stop button which now works but isn't as tactile as the others (so I will eventually replace it later on). It's now fully functional. I will order a black GOTEK unit next month, flash it with FlashFloppy and replace the floppy drive.

Retronautics: A digital gallery of my retro computers, hardware and projects.

Reply 9253 of 27186, by appiah4

User metadata
Rank l33t++
Rank
l33t++
oeuvre wrote:

love me some Ferrari 512TR

Testarossa is the best Ferrari ever.

Retronautics: A digital gallery of my retro computers, hardware and projects.

Reply 9254 of 27186, by ultra_code

User metadata
Rank Oldbie
Rank
Oldbie
appiah4 wrote:
oeuvre wrote:

love me some Ferrari 512TR

Testarossa is the best Ferrari ever.

Personally, I have a strange affinity for the Toyota Supra. I think it is its curvy body and mid-tier performance. 😀

Builds

Reply 9256 of 27186, by KCompRoom2000

User metadata
Rank Oldbie
Rank
Oldbie
the_ultra_code wrote:

I too just finished soft-modding my fat model 30001 PS2 following this awesome guide (note: you have to use the copy of FreeMCBoot he provides; I believe it's a custom version with extra files that enables access to the FreeHDBoot's apps while running FreeMCBoot when you follow his steps).

I think my PS2's optical drive is feeling it's age. I mean, when I pop open the disc tray, it doesn't open up all the way and immediately stop; instead, as it is about to finish opening, it begins to sound like it's rubbing up against something and slows down a bit and then stops. It works, but obviously not as it should.

That doesn't sound surprising considering you have the original SCPH-30001 model, that was the model of the PS2 that I had during my childhood, I remember having hard times trying to get it to load discs. I think somehow the original optical drives don't age well.

I have an original Playstation 2 (SCPH-50001 - not the same as the one I had back then) with a Network Adapter that I wouldn't mind putting a hard drive in, I have a few spare IDE hard drives that should work with it so all I need now is a FreeMCBoot memory card.

xjas wrote:

Step 1: void the warranty. It's amazing how many of my dumb projects begin with this step.

It's not like Sony still honors the warranty on such an old console so it doesn't really matter anyway. You'd be surprised how many devices require you to "void" the warranty before you can service them. I'm sure you've noticed the Original XBOX has a few of its screws hidden underneath its stickers. 😜

Reply 9257 of 27186, by Tiido

User metadata
Rank l33t
Rank
l33t

http://www.tmeeco.eu/BitShit/PCschit/RTCfix.jpg

I fixed the RTC module of my 486, it is amazing it lasted 24 years !

T-04YBSC, a new YMF71x based sound card & Official VOGONS thread about it
Newly made 4MB 60ns 30pin SIMMs ~
mida sa loed ? nagunii aru ei saa 😜

Reply 9258 of 27186, by liqmat

User metadata
Rank l33t
Rank
l33t

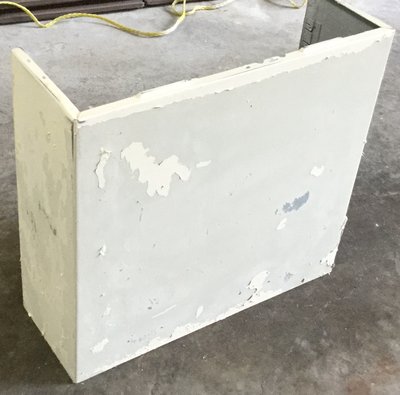

After a 24 hour wait the paint remover stripped 4 coats of spray paint off and I see some raw metal. One more coat of paint remover overnight should get me a bare metal case shell. Then time to paint on the new enamel coat.

Filename
File size
364.67 KiB
Views
948 views
File license
Fair use/fair dealing exception

Reply 9259 of 27186, by LHN91

User metadata
Rank Member
Rank
Member
KCompRoom2000 wrote:
That doesn't sound surprising considering you have the original SCPH-30001 model, that was the model of the PS2 that I had durin […]
Show full quote
the_ultra_code wrote:

I too just finished soft-modding my fat model 30001 PS2 following this awesome guide (note: you have to use the copy of FreeMCBoot he provides; I believe it's a custom version with extra files that enables access to the FreeHDBoot's apps while running FreeMCBoot when you follow his steps).

I think my PS2's optical drive is feeling it's age. I mean, when I pop open the disc tray, it doesn't open up all the way and immediately stop; instead, as it is about to finish opening, it begins to sound like it's rubbing up against something and slows down a bit and then stops. It works, but obviously not as it should.

That doesn't sound surprising considering you have the original SCPH-30001 model, that was the model of the PS2 that I had during my childhood, I remember having hard times trying to get it to load discs. I think somehow the original optical drives don't age well.

I have an original Playstation 2 (SCPH-50001 - not the same as the one I had back then) with a Network Adapter that I wouldn't mind putting a hard drive in, I have a few spare IDE hard drives that should work with it so all I need now is a FreeMCBoot memory card.

xjas wrote:

Step 1: void the warranty. It's amazing how many of my dumb projects begin with this step.

It's not like Sony still honors the warranty on such an old console so it doesn't really matter anyway. You'd be surprised how many devices require you to "void" the warranty before you can service them. I'm sure you've noticed the Original XBOX has a few of its screws hidden underneath its stickers. 😜

There's a way to set up the hard drive for a PS2 without a FreeMCBoot card - it's how I did mine recently. Just can't seem to find the guide I used, but basically you set it up as a PS2 hard drive and write a pre-built FreeHDBoot image over to it, and the PS2 can boot from that. Maybe a bit slower than from memory card but it's totally doable. Mine's got a 500 GB IDE Seagate drive in it, boots and runs games from the drive no problem, and I still haven't bothered to make a FreeMCBoot memory card.
