Re: What retro activity did you get up to today?

Postby retardware » 2019-7-16 @ 04:00

Sigh.
It was not as easy as anticipated to get my 486 assembled.

One major part of the difficulty was getting the parts:
-Headland HT340-cacheless chipset based mobo (it is the upgraded 486 version of the well-known HT12 286 mobo)
-Spea V7 Mercury (135MHz DAC) - only managed to find a dead one...
...so instead of that Spea V7 Mirage (100MHz DAC) with Micron RAMs
-VGA-modded Hercules card (98 Hz text/graphics mode refresh rate)
-AHA-1542CF SCSI disk controller with 2 Fujitsu 73GB 15k SCA drives attached
-Winbond IDE CDROM/Floppy/multi-IO
-SMC 8013EWC network card
-CMI-8330 SP-DIF soundcard
-16-bit 16650 serial card

Hardware seems to work fine so far.
Power supply is in spec (<40mV p-p ripple).

Now I can finally close the case to do some DOS windows setting up.

Some photos, from the workshop:


The cards. Almost full...



VGA output. Very sharp, as one can expect from 100MHz DAC. Will be of better refresh rate after installing the spea utilities.



Hercules card output (rgb adjusted to my preferred bluish green).
(As its output is 0.7V max, it looks dark if the monitor is not turned bright. Will correct that some day)



Ah yes, the strange-looking Hercules clone card, respective what is remaining of it ...



And its 9pin-VGA cable adapter


Phew.
retardware
Oldbie

Posts: 642
Joined: 2019-1-30 @ 02:00

Re: What retro activity did you get up to today?

Postby twilliamc » 2019-7-16 @ 12:57

I finally got around to two mini-projects.

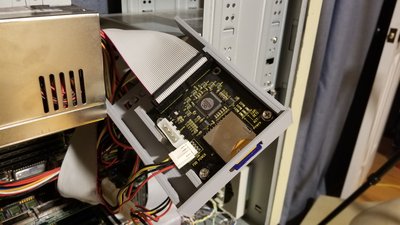

1. 3D printing the SD-IDE bracket a user posted on this forum. It has some issues with the rear screw holes not lining up, but I think that is more on the PCBs not being consistent than the print.

bracket

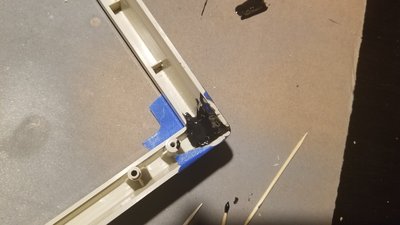

2. I originally purchased some plastic bonder to repair my car's bumper cover. Turns out it works REALLY well fixing cases too. I used a dremel to sand a wide V-groove in the plastic and cleaned it before applying the bonder. I still need to purchase plastic filler and paint to hide the crack (if possible). I could always leave it with a Kintsugi vibe.

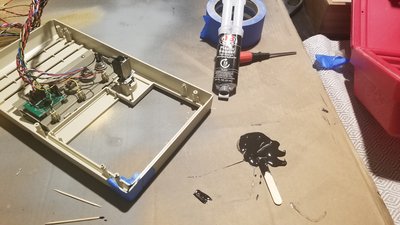

case fix


closeup
Vendex Turbo-888-XT: 8088, 640K, 360k 5.25FDDx2
Vendex Headstart III: 80286 @ 8/12MHz, 1MB RAM, 2GB CF, 1MB VGA, DOS/HOT/Win 3.0
Unnamed: 486DX4 @ 120MHz, 16MB, 2GB, 2MB VGA, SBPro 2.0, DOS/W3.11, W95
User avatar
twilliamc
Newbie

Posts: 38
Joined: 2018-4-13 @ 13:50

Re: What retro activity did you get up to today?

Postby imi » 2019-7-16 @ 20:52

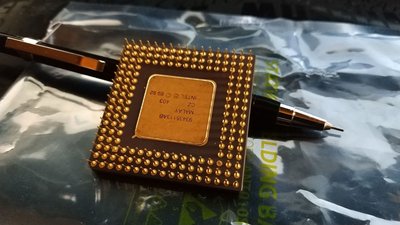

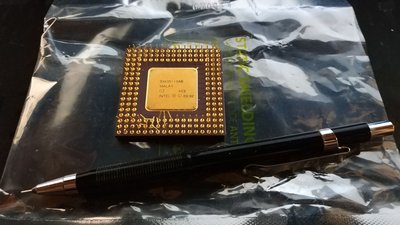

found a good use for my fine pencil today...

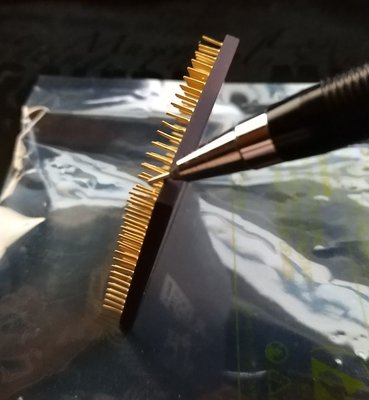

one of the pins was curled over 180°, had to get it out with a knife before I could slide the pencil over to try and wiggle it straight again

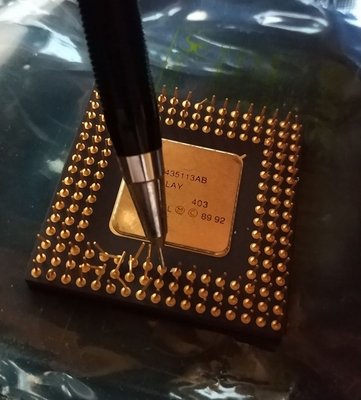

...not perfect... but usable I guess


all in all a lot easier than using tweezers



and now...

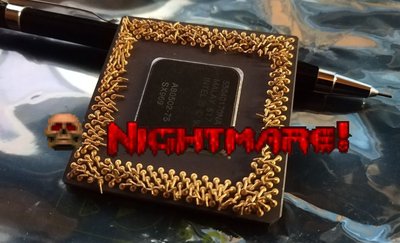

I am not quite sure yet if I should even bother with this one :dead:
I hate what some people are doing to these poor cpus :depressed:
User avatar
imi
Member

Posts: 123
Joined: 2019-6-16 @ 13:46
Location: europe

Re: What retro activity did you get up to today?

Postby wiretap » 2019-7-16 @ 21:13

Most of them were just tossed in a box with 40lb of other crap on top of them, then dug through over the years which causes all the bent pins in weird directions.
User avatar
wiretap
Member

Posts: 454
Joined: 2018-5-17 @ 08:26
Location: Michigan, USA

Re: What retro activity did you get up to today?

Postby brostenen » 2019-7-16 @ 21:20

appiah4 wrote:I guess once you go Amiga, there's no going back :)


Naaa.... Amiga's were an 1987 to 1992 thing. If your interest in old games are within those specific 5 years, then yes you are right.
Don't eat stuff off a 15 year old never cleaned cpu cooler.
Those cakes make you sick....

My blog: http://to9xct.blogspot.dk

001100 010010 011110 100001 101101 110011

Jah ich will trynen... Die Leute wie macht scheisse in dem Grünen.
User avatar
brostenen
l33t++

Posts: 5367
Joined: 2014-5-07 @ 21:13
Location: Northern Jutland, Denmark.

Re: What retro activity did you get up to today?

Postby oeuvre » 2019-7-16 @ 21:39

bent pins are the work of satan
Retro PC Intel i7 2600, 16GB, AMD FirePro V5800 1GB, SSD + HD, XP/7
Main Desktop AMD Ryzen 3700X, 32GB, AMD RX580 8GB, NVMe SSD + HD, 10
User avatar
oeuvre
l33t

Posts: 2879
Joined: 2015-3-31 @ 13:31
Location: USA

Re: What retro activity did you get up to today?

Postby appiah4 » 2019-7-16 @ 21:50

I had the pleasure of (not) cleaning up battery mess on a 286 motherboard:


It turned out relatively OK once everything was wiped/scraped off:


I'm now 90% confident it will work as opposed to 10% when I set out.

On the other hand now I have some exposed copper traces that I should probably coat/cover somehow? Would hot glue work in a pinch?
A500:+512K|ACA500+|C1084S
i386:Am386SX-25|4M|TVGA9000B|ES688
i486:U5S-33|8M|GD5428|CT2290/MUNT-Pi
i586:P133|32M|S3T64+/MX2|V1|CT3980/32M
i686:K6-2/400|64M|V2/SLI|CT4500/32M
S370:P3-1200|384M|GF4Ti4200|MX300
S754:A3700+|2G|X1950PRO|SB0350
User avatar
appiah4
l33t

Posts: 3760
Joined: 2017-2-19 @ 07:36

Re: What retro activity did you get up to today?

Postby 0x5f4e2a » 2019-7-16 @ 21:58

appiah4 wrote:I had the pleasure of (not) cleaning up battery mess on a 286 motherboard:


It turned out relatively OK once everything was wiped/scraped off:


I'm now 90% confident it will work as opposed to 10% when I set out.

On the other hand now I have some exposed copper traces that I should probably coat/cover somehow? Would hot glue work in a pinch?

Use a UV-curable epoxy. You can find this on aliexpress for about a dollar :cool:
0x5f4e2a
Newbie

Posts: 3
Joined: 2018-11-20 @ 21:28

Re: What retro activity did you get up to today?

Postby creepingnet » 2019-7-16 @ 23:49

Been busy as heck lately...have not had time to post.

Got the NEC Ready 9522 up and going full now with Win98SE on an 80GB 2.5" laptop drive with Maxblast for the DDO. The RTC has been modded/fixed so now it keeps settings and boots (it would drop HDD configuration on reboot rendering it unbootable till I fixed that).

Went to Fry's while hanging with family, bought the parts I needed to continue working on the light pen for the Tandy 1000. 3 Phototransistors to try out and a data to ide converter for some sick SATA tricks put with some drives I have laying around.

Lastly, I've been following the Computer Reset thing and flip.flopping back and fourth about it looking at plane prices and cost to drive and other travel logistics. That place is like a Mecca now but I'm holding off because I'd mostly just want CRTs and a DeskPro 386 most likely.
My DOS Boxen
85' Tandy 1000(a)- 8088/4.77, 640K, 8gb XT-IDE, TGA, 3-voice
89' GEM 286 - 286/12 w/287, 6MB, 1GB SCSI, 2XCD-ROM, ET-4000 1MB, SB Pro2
Creeping Net 486 - 486DX4100 WB, 128MB, 512K L2, 15GB+40GB, S3 809 2MB VLB SVGA, SBAWE64
User avatar
creepingnet
Member

Posts: 330
Joined: 2012-12-15 @ 05:51
Location: Trapped In the Computer

Re: What retro activity did you get up to today?

Postby detritus olentus » 2019-7-17 @ 00:22

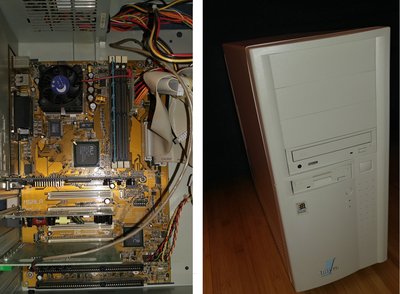

Picked this up at the flea market for a dollar and its hiding a cyrix cpu in a socket 7, a pleasant surprise. Just finished reassembling and it cleaned up nice!
Attachments
https://archive.org/details/@detritus_olentus
Where are my other retro New Jersey Folk?
AIM Phoenix: novusrexrgis
User avatar
detritus olentus
Newbie

Posts: 84
Joined: 2018-8-13 @ 20:02
Location: New Jersey

Re: What retro activity did you get up to today?

Postby chrismeyer6 » 2019-7-17 @ 00:25

Nice find. Which flea market did you goto?
chrismeyer6
Member

Posts: 197
Joined: 2015-10-13 @ 16:16
Location: NJ, USA

Re: What retro activity did you get up to today?

Postby detritus olentus » 2019-7-17 @ 00:26

Columbus Farmers Market
https://archive.org/details/@detritus_olentus
Where are my other retro New Jersey Folk?
AIM Phoenix: novusrexrgis
User avatar
detritus olentus
Newbie

Posts: 84
Joined: 2018-8-13 @ 20:02
Location: New Jersey

Re: What retro activity did you get up to today?

Postby oeuvre » 2019-7-17 @ 00:28

RIP panarin
Retro PC Intel i7 2600, 16GB, AMD FirePro V5800 1GB, SSD + HD, XP/7
Main Desktop AMD Ryzen 3700X, 32GB, AMD RX580 8GB, NVMe SSD + HD, 10
User avatar
oeuvre
l33t

Posts: 2879
Joined: 2015-3-31 @ 13:31
Location: USA

Re: What retro activity did you get up to today?

Postby bjwil1991 » 2019-7-17 @ 00:30

Is that a Biostar M5ALA board? That is really cool. And for $1? That's a bargain.
Discord: https://discord.gg/U5dJw7x
Systems from C64 to FX-6300.
User avatar
bjwil1991
l33t

Posts: 2510
Joined: 2013-8-14 @ 03:10
Location: SE, MI USA

Re: What retro activity did you get up to today?

Postby bjwil1991 » 2019-7-17 @ 00:35

wiretap wrote:Most of them were just tossed in a box with 40lb of other crap on top of them, then dug through over the years which causes all the bent pins in weird directions.

My thoughts exactly. When I replaced the VIA 700A Socket 370 CPU with the Celeron 1.4GHz I had on another board, I placed the CPU in the foam pad that came with the SRAM chips I bought on eBay and placed another one on top, and placed it in a used anti-static bag (not ripped) in case somebody wants it someday.

In fact, I shipped my old AMD 486 CPUs a few years back and did the same thing: placed the pins in the foam pads and in anti-static bags.

I also had some bent pins on the POD-100 Intel i486 processor that I fixed easily and they are still straight to this day.
Discord: https://discord.gg/U5dJw7x
Systems from C64 to FX-6300.
User avatar
bjwil1991
l33t

Posts: 2510
Joined: 2013-8-14 @ 03:10
Location: SE, MI USA

Re: What retro activity did you get up to today?

Postby Mister Xiado » 2019-7-17 @ 00:37

imi wrote:found a good use for my fine pencil today...

I am not quite sure yet if I should even bother with this one :dead:
I hate what some people are doing to these poor cpus :depressed:
If nothing else, you can rescue it from oblivion for bragging rights. I did that with a Pentium 4, and my scummy boss at the repair shop charged the customer for a whole new processor.
Image - Where it's always 1992 (or so).
Icons, wallpapers, and typical Oldternet nonsense.
User avatar
Mister Xiado
Member

Posts: 243
Joined: 2017-9-12 @ 23:04

Re: What retro activity did you get up to today?

Postby bjwil1991 » 2019-7-17 @ 00:48

That poor Pentium 1 75MHz processor. Heck, my 100MHz Pentium 1 pins get slightly bent because I forget that the CPU is on my desk at the moment until I got the heatsink fan to work properly since it was stiff.
Discord: https://discord.gg/U5dJw7x
Systems from C64 to FX-6300.
User avatar
bjwil1991
l33t

Posts: 2510
Joined: 2013-8-14 @ 03:10
Location: SE, MI USA

Re: What retro activity did you get up to today?

Postby Whatscheizer » 2019-7-17 @ 02:52

I've been steady working on a DOS build and I've been trying to get a 16 bit ISA sound card to work under Windows 98 DOS-Mode... which sounds simple enough but I've been running into some oddities. Probably caused by the sheer amount of cards and drivers I have circulated through the system. At this point I'm really not sure.

I started off with a Yamaha Audician32 card, that I was pretty happy with until it seemed that NFS SE didn't particularly care for the card. So I swapped that card out with an AWE64 Gold. Which was awesome, but I couldn't get any sound out of it in Lemmings. I like Lemmings. So I dropped down to a Sound Blaster 16 (CT2230)... I can't get low DMA working in any game on this card. Did a fresh install of drivers, I run Diagnose, everything passes and works fine, the software sets the lines in my autoexec and I have FM synth and all that goodness, just no sound effects.

The weird bit in regards to that CT2230 is that the drivers insists on setting the low DMA to 1. Which would be fine if it worked. I can try to force the resource settings in BIOS which seems to work for other cards, but the Sound Blaster drivers will only set DMA 1. It's just odd. I also have a CT1770 that actually has jumpers on the card itself to set resources. I tried swapping this in with DMA set to 0 and running Diagnose on that card still set DMA 1. Which again netted me no sound FX in games. So I gave up pulled the card and set the jumpers so the card would use DMA 1. Which is what the Sound Blaster drivers seemed to be so adamant I use. Guess what? Now I have sound FX. Isn't the point of Diagnose to sniff out what the settings are on the card, or what resources have been assigned to it and set the environment accordingly? It seems like this is backwards.

Anyway I was happy with this for a few moments until I found that the Adlib setting on Street Rod 2 absolutely would not make any noise that didn't sound like my PC was imploding on itself.

So now I'm back to my Audician32.

I don't know that I typed all of this looking for any help as much as I did just to walk myself back through it, but if anyone has some insight I'd appreciate it. I'm just getting back into DOS and I was pretty young last time I used it. I'm more familiar with Windows.
The rest of the settings for the card is address 220 IRQ 7 DMA 1, 5
Yamaha card takes address 220 IRQ 7 DMA 3 (no high DMA it seems)

I may just end up sticking with the Audician32 as it seems to be the card that breaks the least.

In fairness I am complicating things by running a second PCI card for Windows 98 but... I really don't think there is any conflict there. I even pulled the PCI card while I was troubleshooting. I didn't observe any change.

tl;dr
Sound cards are hard for me I guess.
Whatscheizer
Newbie

Posts: 2
Joined: 2019-7-17 @ 02:27

Re: What retro activity did you get up to today?

Postby Tiido » 2019-7-17 @ 03:26

You should try SETYMF with the YMF71x card, it probably gives better results : http://www.tmeeco.eu/TKAYBSC/
User avatar
Tiido
Oldbie

Posts: 956
Joined: 2018-1-14 @ 04:40
Location: Estonia

Re: What retro activity did you get up to today?

Postby bjwil1991 » 2019-7-17 @ 06:58

Cleaned and fixed my Lite-On LH-18A1P DVD burner as it refused to open without a disc in the drive. After cleaning, lubricating, and demagnetizing the tray, belt, and spindle, it opens and closes without any issues. Going to fix my other DVD drives soon for my Windows 98SE builds as they either don't read anything or can only read CDs and not DVDs very well.
Discord: https://discord.gg/U5dJw7x
Systems from C64 to FX-6300.
User avatar
bjwil1991
l33t

Posts: 2510
Joined: 2013-8-14 @ 03:10
Location: SE, MI USA
