Postby Fanatik » 2018-1-28 @ 21:52

I recently purchased a 286 PC Chips M216 Rev 1.2 motherboard along with a 25mhz cpu. I am under the impression that it doesn't support zero wait state. Is this a function of bios or a limitation of the board itself. Would it be possible to swap bios chips from a board that supports zero wait state? I really like the layout of this board and would like to use it.
Fanatik
Newbie

Posts: 19
Joined: 2018-1-25 @ 13:43

Re: PC Chips 286 M216 Motherboard

Postby Fanatik » 2018-1-29 @ 12:39

Anyone?
Fanatik
Newbie

Posts: 19
Joined: 2018-1-25 @ 13:43

Re: PC Chips 286 M216 Motherboard

Postby dieymir » 2018-1-29 @ 13:25

It's a limitation of memory speed. A 25Mhz. 286 will require very fast DRAM modules (<50ns) or a small amount of cache. Cache is done using SRAM memory chips that don't need refreshing and are much faster (<25ns).

You have a calculator here:

https://matrix.home.xs4all.nl/calc/waitstates.html

According to it you'll need at least 1 WS for 60ns DRAM memory modules. For 0 WS operation you need at least 28ns DRAM memory modules which, AFAIK, are not feasible.
dieymir
Newbie

Posts: 30
Joined: 2017-2-11 @ 08:53

Re: PC Chips 286 M216 Motherboard

Postby Fanatik » 2018-1-30 @ 01:00

There are plenty of people running 286's in zero wait state. It was also advertised heavily in Pc magazines in the 80's. I'm just wondering if I can swap bios chips so I can run my memory in zero wait state.
Fanatik
Newbie

Posts: 19
Joined: 2018-1-25 @ 13:43

Re: PC Chips 286 M216 Motherboard

Postby feipoa » 2018-1-30 @ 05:34

I didn't realise PC Chips made 286 motherboards. Post a photo? I wonder what their first motherboard was?
User avatar
feipoa
l33t

Posts: 4590
Joined: 2011-3-07 @ 13:54
Location: Canada

Re: PC Chips 286 M216 Motherboard

Postby Moogle! » 2018-1-30 @ 17:53

Did you buy the one from that guy in Ukraine? I got his M219.

I have only seen one stick of 50ns 30pin simm in my life.
Moogle!
Member

Posts: 267
Joined: 2008-4-21 @ 01:03

Re: PC Chips 286 M216 Motherboard

Postby Fanatik » 2018-1-31 @ 01:50

Yes, it is from the guy in the Ukraine. I also bought an Ocetek Pony motherboard that looks very similar.
Fanatik
Newbie

Posts: 19
Joined: 2018-1-25 @ 13:43

Re: PC Chips 286 M216 Motherboard

Postby Fanatik » 2018-1-31 @ 01:51

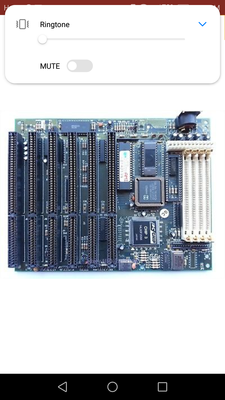

Pic of the motherboard
Attachments
Fanatik
Newbie

Posts: 19
Joined: 2018-1-25 @ 13:43

Re: PC Chips 286 M216 Motherboard

Postby Fanatik » 2018-1-31 @ 01:52

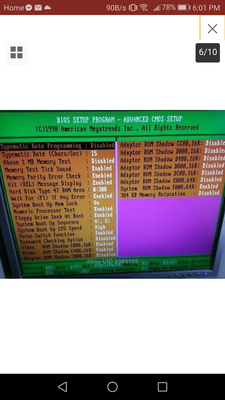

Here is a pic of the bios. Notice how there isn't an option to run the dram in 0 wait state?
Attachments
Fanatik
Newbie

Posts: 19
Joined: 2018-1-25 @ 13:43

Re: PC Chips 286 M216 Motherboard

Postby Moogle! » 2018-1-31 @ 05:05

I've been curious as to whether or not the ram runs at the CPU speed on the faster 286s, or if it runs at the speed of the system bus. To get 0 wait states on a 25Mhz CPU, you would need 40ns ram, something I have never actually seen. For 20Mhz, you would need 50ns, which is rare as hens teeth and no one buying a 286 at that point was going to be buying something as expensive as 50ns ram.

16Mhz needs 60ns, 12.5Mhz need 80ns, 10mhz needs 100ns, 8Mhz needs 120ns, 6Mhz needs 150ns, and 4.77/5Mhz needs 200ns.

On the other hand, I may be completely misunderstanding what wait states are and how they work. I can find little actual information about this, at least nothing that is clear on the matter.

EDIT: Missed the third post in this thread. Nice find.
Moogle!
Member

Posts: 267
Joined: 2008-4-21 @ 01:03

Re: PC Chips 286 M216 Motherboard

Postby Fanatik » 2018-1-31 @ 14:04

Check out EKB's 286 setup. That is a fast 286 with 0 wait state memory.
Fanatik
Newbie

Posts: 19
Joined: 2018-1-25 @ 13:43

Re: PC Chips 286 M216 Motherboard

Postby Anonymous Coward » 2018-1-31 @ 14:28

Find out what kind of chipset your motherboard actually uses. PCchips normally relabels chipsets from other companies. Then see if you can find a MR-BIOS replacement. This might allow you to play with memory timings. Alternatively, you can try running AMISETUP V2.99 to see if there are any hidden features you can manipulate.
Will the highways on the internets become more few?
V'Ger XT|Upgraded AT|Ultimate 386|Super VL/EISA 486|SMP VL/EISA Pentium
User avatar
Anonymous Coward
l33t

Posts: 2540
Joined: 2008-3-20 @ 05:37
Location: Shandong, China

Re: PC Chips 286 M216 Motherboard

Postby Fanatik » 2018-1-31 @ 16:17

I believe Mr Bios is shut down. Couldn't I swap a bios chip from another board?
Fanatik
Newbie

Posts: 19
Joined: 2018-1-25 @ 13:43

Re: PC Chips 286 M216 Motherboard

Postby feipoa » 2018-1-31 @ 19:28

Fanatik wrote:I believe Mr Bios is shut down. Couldn't I swap a bios chip from another board?

For this board, typically yes, if the chipset is the same.
User avatar
feipoa
l33t

Posts: 4590
Joined: 2011-3-07 @ 13:54
Location: Canada

Re: PC Chips 286 M216 Motherboard

Postby Moogle! » 2018-2-01 @ 07:24

I thought 286 BIOSes were interchangeable, regardless of chipset? Or is that only for older BIOSes?

When I get my board I will dump mine.

Fanatik, was there a reason you chose that board over the other one that had a 25Mhz cpu on it?
Moogle!
Member

Posts: 267
Joined: 2008-4-21 @ 01:03

Re: PC Chips 286 M216 Motherboard

Postby Fanatik » 2018-2-01 @ 14:06

I heard bad things about the M209. I heard it was slow, plus I didn't like the fact that the cpu is soldered in. I bet your bios won't have the option for zero wait state either.
Fanatik
Newbie

Posts: 19
Joined: 2018-1-25 @ 13:43

Re: PC Chips 286 M216 Motherboard

Postby Fanatik » 2018-2-01 @ 14:19

https://www.ebay.com/itm/PC-Chips-286-U ... 1438.l2649
Here is an auction for M-209 instructions and utilities disk, for anyone who is interested.
Fanatik
Newbie

Posts: 19
Joined: 2018-1-25 @ 13:43

Re: PC Chips 286 M216 Motherboard

Postby Moogle! » 2018-2-01 @ 18:26

Fanatik wrote:I heard bad things about the M209. I heard it was slow, plus I didn't like the fact that the cpu is soldered in. I bet your bios won't have the option for zero wait state either.


Mine is the (219), not 209. ;)
Moogle!
Member

Posts: 267
Joined: 2008-4-21 @ 01:03

Re: PC Chips 286 M216 Motherboard

Postby Fanatik » 2018-2-01 @ 19:12

I meant the M219. Google it. It was somebody on this forum I believe EKB, that mentioned it.
Fanatik
Newbie

Posts: 19
Joined: 2018-1-25 @ 13:43

Re: PC Chips 286 M216 Motherboard

Postby derSammler » 2018-2-01 @ 19:29

dieymir wrote:According to it you'll need at least 1 WS for 60ns DRAM memory modules. For 0 WS operation you need at least 28ns DRAM memory modules which, AFAIK, are not feasible.

That's not correct. Calculation is "1000 / MHz = RAM speed in ns". E.g. 1000 / 25 = 40ns. Normally, it's ok if RAM is specified slightly slower, so 50ns should work as well (I run my 16 MHz 286 with 0 WS and 70ns RAM). If you add 1 WS, RAM can be 80ns instead of 40ns, but since the 286 has no cache, speed would equal a 12.5 MHz CPU then. The latter was actually the case with the few 25 MHz 286 that hit the market. They were slower than 16 MHz ones since no RAM fast enough for 0 WS was available.
derSammler
Oldbie

Posts: 1016
Joined: 2017-4-14 @ 11:30
Location: Germany
