Re: BlasterBoard 2.0 : A modern SB 2.0-compatible ISA sound card

Postby LABS » 2019-4-09 @ 11:21

I love DHL because sometimes they deliver pure happiness))
Ohh yes... just received some PCBs from the factory :happy:

ph 09.04.2019, 11 53 35.jpg

ph 09.04.2019, 12 05 20.jpg
In comparison with DIY prototype

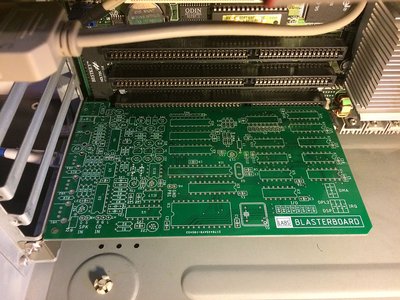

It fits great in ISA slot:

ph 09.04.2019, 12 29 28.jpg

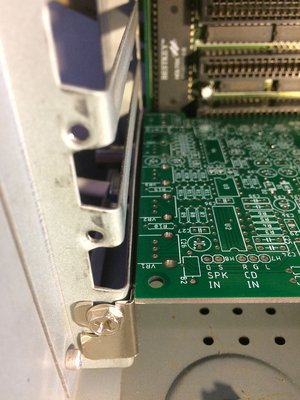

And has a nice 1mm gap for the metal bracket:

ph 09.04.2019, 12 29 53.jpg

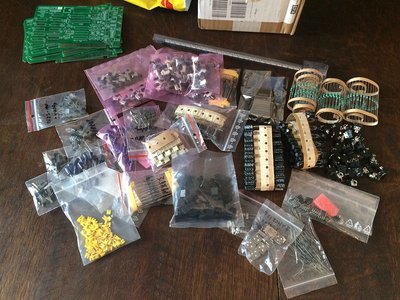

Still receiving components for DIY kits, this is just about 1/10 of all it needs:

ph 09.04.2019, 13 19 47.jpg

Currently I'm working on assembly manual and preparing a big youtube video about this project.

If anyone is interested and wants to build the card yourself - DIY kits will be available soon for about 85 EUR (estimated), which will include ENIG-finished PCB (gold-plated), custom metal bracket, all components (157 in total) and a printed assembly manual. If you only want the card and do not want to solder it yourself - I can solder and check it for you.

Firmware source code will be available on Github as soon as everything will be ready.
User avatar
LABS
Newbie

Posts: 66
Joined: 2018-6-07 @ 16:49
Location: Riga, LV

Re: BlasterBoard 2.0 : A modern SB 2.0-compatible ISA sound card

Postby root42 » 2019-4-09 @ 11:33

Yup, will be interested, including bracket, for self soldering. Looks awesome!
Soldering, retro game reviews and more on YouTube and Bonus videos
Me playing games on my 286 and on my Sega MD2 on Twitch
80386DX@25 MHz, 8 MiB RAM, Tseng ET4000 1 MiB, schlae AdLib, PC MIDI Card + SC55MkII, XT CF Lite, OSSC 1.6
User avatar
root42
Oldbie

Posts: 976
Joined: 2018-1-27 @ 13:23

Re: BlasterBoard 2.0 : A modern SB 2.0-compatible ISA sound card

Postby Tiido » 2019-4-09 @ 14:07

This is very awesome ~
User avatar
Tiido
Oldbie

Posts: 678
Joined: 2018-1-14 @ 04:40
Location: Estonia

Re: BlasterBoard 2.0 : A modern SB 2.0-compatible ISA sound card

Postby canthearu » 2019-4-09 @ 14:26

I notice your prototype uses a whole lot of IC sockets.

Are you planning on supplying sockets for all the ICs on the production boards?

I'd prefer sockets only for ICs that are flashable, like the ATmega chip, or other chips that particularly susceptible to heat damage. (and maybe the Opamp ICs in the amplifier, as people like to switch them)
canthearu
Member

Posts: 458
Joined: 2018-5-26 @ 01:00

Re: BlasterBoard 2.0 : A modern SB 2.0-compatible ISA sound card

Postby LABS » 2019-4-09 @ 15:39

root42 wrote:Yup, will be interested, including bracket, for self soldering. Looks awesome!

Deal, you'll get the first one!

Tiido wrote:This is very awesome ~

Indeed, man :happy: Thanks!

canthearu wrote:I notice your prototype uses a whole lot of IC sockets.

Are you planning on supplying sockets for all the ICs on the production boards?

I'd prefer sockets only for ICs that are flashable, like the ATmega chip, or other chips that particularly susceptible to heat damage. (and maybe the Opamp ICs in the amplifier, as people like to switch them)

All ICs were socketed because it was a prototype, so ICs could be changed easily if anything is wrong etc. The kit will only include 28 DIP socket for the Atmega chip for reflashing purposes.
User avatar
LABS
Newbie

Posts: 66
Joined: 2018-6-07 @ 16:49
Location: Riga, LV

Re: BlasterBoard 2.0 : A modern SB 2.0-compatible ISA sound card

Postby Cyrix200+ » 2019-4-09 @ 17:55

Put me on the list also please, I'd love to build one!
User avatar
Cyrix200+
Oldbie

Posts: 862
Joined: 2015-5-11 @ 15:52
Location: The Netherlands

Re: BlasterBoard 2.0 : A modern SB 2.0-compatible ISA sound card

Postby dreamblaster » 2019-4-09 @ 21:05

also interested to build one ! put me on the list please.
Visit http://www.serdashop.com for retro sound cards, MIDI PCB's, and video converters
OPL2LPT, OPL3LPT, X2, S2, S2P, MCE2VGA, ... many projects ! Have a look, and thanks for your support !
dreamblaster
Oldbie

Posts: 655
Joined: 2015-1-18 @ 19:34
Location: Belgium

Re: BlasterBoard 2.0 : A modern SB 2.0-compatible ISA sound card

Postby Vaudane » 2019-4-09 @ 22:44

I'd love to build one too, stick me on the list plz :)
User avatar
Vaudane
Newbie

Posts: 73
Joined: 2018-7-30 @ 14:47
Location: UK

Re: BlasterBoard 2.0 : A modern SB 2.0-compatible ISA sound card

Postby appiah4 » 2019-4-09 @ 23:37

Still havent built the adlib or snark barker so I cant justify the cost here but it is an amazing project...
1989:A500|1M|ACA500+|C1084S
1992:HIPPO-VL+|U5SX-33|8M|GD5428|CT2290|S2
1995:P5I430VX|P133|32M|T64+/MX2|V1|CT3980/32M
1998:MI5VP4|K6-2/400|128M|V2-1000/SLI|CT4500/32M
2001:GA-6OXT|P3-1200|384M|GF3Ti200|MX300
2004:K8VD|3700+|2G|X1950PRO|SB0350
User avatar
appiah4
l33t

Posts: 3138
Joined: 2017-2-19 @ 07:36

Re: BlasterBoard 2.0 : A modern SB 2.0-compatible ISA sound card

Postby LABS » 2019-4-10 @ 10:25

Cyrix200+ wrote:Put me on the list also please, I'd love to build one!

dreamblaster wrote:also interested to build one ! put me on the list please.

Vaudane wrote:I'd love to build one too, stick me on the list plz :)

You got it! Will pm you the details when the kits are ready.
User avatar
LABS
Newbie

Posts: 66
Joined: 2018-6-07 @ 16:49
Location: Riga, LV

Re: BlasterBoard 2.0 : A modern SB 2.0-compatible ISA sound card

Postby canthearu » 2019-4-10 @ 11:39

LABS wrote:
canthearu wrote:I notice your prototype uses a whole lot of IC sockets.

Are you planning on supplying sockets for all the ICs on the production boards?

I'd prefer sockets only for ICs that are flashable, like the ATmega chip, or other chips that particularly susceptible to heat damage. (and maybe the Opamp ICs in the amplifier, as people like to switch them)

All ICs were socketed because it was a prototype, so ICs could be changed easily if anything is wrong etc. The kit will only include 28 DIP socket for the Atmega chip for reflashing purposes.


Awesome, sounds great. Sign me up for a kit as well!
canthearu
Member

Posts: 458
Joined: 2018-5-26 @ 01:00

Re: BlasterBoard 2.0 : A modern SB 2.0-compatible ISA sound card

Postby tomdearden » 2019-4-10 @ 12:01

Hi - if you're still taking requests for kits, I'd love the chance to build one of these, too!
tomdearden
Newbie

Posts: 2
Joined: 2018-4-04 @ 19:42

Re: BlasterBoard 2.0 : A modern SB 2.0-compatible ISA sound card

Postby Eleanor1967 » 2019-4-10 @ 14:47

I would also like a kit!
Eleanor1967
Member

Posts: 171
Joined: 2016-9-18 @ 09:31
Location: Europe

Re: BlasterBoard 2.0 : A modern SB 2.0-compatible ISA sound card

Postby LABS » 2019-4-10 @ 15:12

canthearu wrote:Awesome, sounds great. Sign me up for a kit as well!

tomdearden wrote:Hi - if you're still taking requests for kits, I'd love the chance to build one of these, too!

Eleanor1967 wrote:I would also like a kit!

Added to the list
User avatar
LABS
Newbie

Posts: 66
Joined: 2018-6-07 @ 16:49
Location: Riga, LV

Re: BlasterBoard 2.0 : A modern SB 2.0-compatible ISA sound card

Postby obaltus » 2019-4-11 @ 19:02

Hello,

I am also very interested. Please put me on the list :)
obaltus
Newbie

Posts: 11
Joined: 2016-8-23 @ 19:32

Re: BlasterBoard 2.0 : A modern SB 2.0-compatible ISA sound card

Postby MJay99 » 2019-4-11 @ 20:00

And if your list still has open slots, I'd be very happy to take and solder one, too.
MJay99
Newbie

Posts: 10
Joined: 2018-9-13 @ 14:22
Location: Bavaria, Germany

Re: BlasterBoard 2.0 : A modern SB 2.0-compatible ISA sound card

Postby matze79 » 2019-4-12 @ 07:30

If anyone is interested and wants to build the card yourself - DIY kits will be available soon for about 85 EUR (estimated), which will include ENIG-finished PCB (gold-plated), custom metal bracket, all components (157 in total) and a printed assembly manual. If you only want the card and do not want to solder it yourself - I can solder and check it for you.

Firmware source code will be available on Github as soon as everything will be ready.


Nice i also would like to get a Kit maybe 2 if possible.
https://dosreloaded.de - The German Retro DOS PC Community
https://www.retroianer.de
matze79
Oldbie

Posts: 1347
Joined: 2014-12-12 @ 14:25
Location: Germany, Frankonia

Re: BlasterBoard 2.0 : A modern SB 2.0-compatible ISA sound card

Postby LABS » 2019-4-12 @ 17:07

obaltus wrote:Hello,

I am also very interested. Please put me on the list :)

MJay99 wrote:And if your list still has open slots, I'd be very happy to take and solder one, too.

matze79 wrote:Nice i also would like to get a Kit maybe 2 if possible.

You got it! :happy:
User avatar
LABS
Newbie

Posts: 66
Joined: 2018-6-07 @ 16:49
Location: Riga, LV

Re: BlasterBoard 2.0 : A modern SB 2.0-compatible ISA sound card

Postby LABS » 2019-4-12 @ 22:00

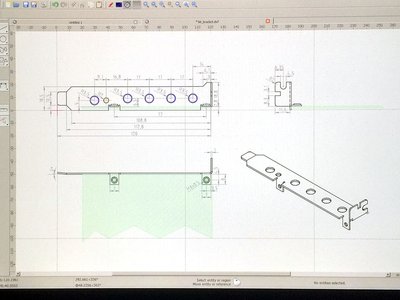

Just finished drawing the bracket, hope to get them manufactured during next week

User avatar
LABS
Newbie

Posts: 66
Joined: 2018-6-07 @ 16:49
Location: Riga, LV

Re: BlasterBoard 2.0 : A modern SB 2.0-compatible ISA sound card

Postby Mihail1810 » 2019-4-13 @ 07:16

If not a secret, where you want order brackets?
User avatar
Mihail1810
Newbie

Posts: 8
Joined: 2019-1-19 @ 20:24
Location: USSR
