I'm trying to make my own MHz display with turbo button, that I will install into an ATX case with Baby AT motherboard. I have an exiting display from another case, but trying to figure out how this works. Is there anywhere information about 7 segment displays and using an ON/ON switch to make a similar one? How do I found out if it is a common anode or cathode display?

Reply 1 of 3, by luckybob

Posted on 2016-08-01, 21:08

luckybob Offline

Rank l33t

Rank: l33t
Posts: 4827
Joined: 2009-04-30, 04:43

Apply power and test it out. Thats the only real advice here. Everything is going to be trail and error. use a 5v supply and go nuts.

It is a mistake to think you can solve any major problems just with potatoes.

Reply 2 of 3, by Formulator

Posted on 2016-08-02, 01:11

Formulator Offline

Rank Member

Rank: Member
Posts: 127
Joined: 2015-05-10, 00:53
Location: The Silicon Prairie

Using tabbed jumpers speeds up the process.

Reply 3 of 3, by Beegle

Posted on 2016-08-02, 03:05

Beegle Offline

Rank Member

Rank: Member
Posts: 475
Joined: 2013-12-01, 02:15

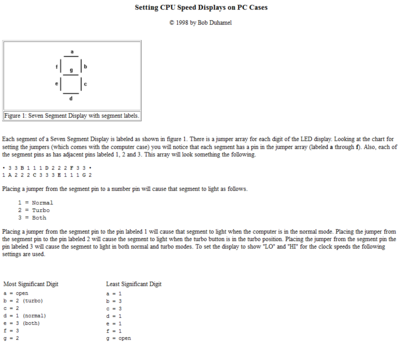

Someone found this for me on a diy forum when I was building my retro build, and I had trouble with this too. So far this info never failed me. Enjoy!
