douglar wrote on 2024-12-27, 01:17:

Here's what I came up with: https://www.thingiverse.com/make:1207377 […]
Show full quote

douglar wrote on 2024-12-22, 16:28:

Anyone know of a 3d printable ISA/VLB card storage unit better than this one?

Here's what I came up with:
https://www.thingiverse.com/make:1207377

Tried to maximize strength and cleanability while minimizing filament use and overhangs

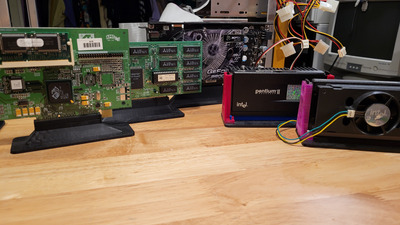

Wow, those look great, nice work! I have a few ideas, but have been too busy to work on it. I've made single card displays for PCI, AGP, PCI-E, and SLOT1/A. I haven't finalized them to my satisfaction yet. I want a fan header(s) on the Slot1/A stand and the AGP on is a bit loose since the slot is small.

has anyone encountered a suitable 2,5"->3,5" print with a "slot" for the startech ide2sat2-adapter?
I just got a 3d-printer, but I'm at loss with fusion360.

oh2ftu wrote on 2024-12-27, 15:01:

has anyone encountered a suitable 2,5"->3,5" print with a "slot" for the startech ide2sat2-adapter?
I just got a 3d-printer, but I'm at loss with fusion360.

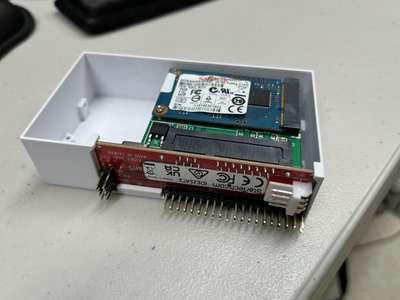

I did this for an Msata device.

https://www.tinkercad.com/things/dIGRnd9BlWk- … a-to-35-marvell

Maybe you could use that as a starting point and combine it with this?

https://www.tinkercad.com/things/k9WQeCkhbz1- … 5-to-35-adapter

Major Jackyl wrote on 2024-12-27, 01:44:

Wow, those look great, nice work! I have a few ideas, but have been too busy to work on it. I've made single card displays for PCI, AGP, PCI-E, and SLOT1/A. I haven't finalized them to my satisfaction yet. I want a fan header(s) on the Slot1/A stand and the AGP on is a bit loose since the slot is small.

I'm just trying to clean up my desk. So far so good!

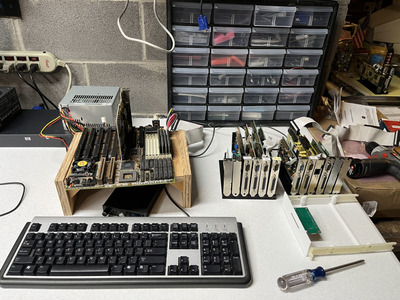

douglar wrote on 2024-12-28, 21:10:

Major Jackyl wrote on 2024-12-27, 01:44:

Wow, those look great, nice work! I have a few ideas, but have been too busy to work on it. I've made single card displays for PCI, AGP, PCI-E, and SLOT1/A. I haven't finalized them to my satisfaction yet. I want a fan header(s) on the Slot1/A stand and the AGP on is a bit loose since the slot is small.

I'm just trying to clean up my desk. So far so good!

Wow, I need a bigger desk ... or maybe just one where I don't have the setup for my work laptop as well 🤣

Are the labels on the cards index codes or short descriptions?

H3nrik V! wrote on 2024-12-28, 21:44:

Are the labels on the cards index codes or short descriptions?

Two digit codes. When I do DOS benchmarks on the VLB IDE cards, I name the 8.3 output files as [2 digit Card code][2 digit driver or Bios code][4 digit storage device code] Then when I load the files into the database, I can parse the file name to get the card info since these cards got no plug and play details. Putting the lable on the top makes it easier to spot the cards.

This is my first item I designed myself with fusion.
I used @douglar work for the ide2sat2 slot and modified it quite a bit.

I have yet to reprint it with looser nubs for ssd-mounting holes, and it will also have floppydrive-matched holes so it can be installed as a floppydrive as well. A facia might be needed..

Fusion took a while to get a hang of, I keep looking for ACAD-features, as I've used ACAD at work (electrical design) for 15 years 😀

oh2ftu wrote on 2024-12-29, 18:11:

Fusion took a while to get a hang of, I keep looking for ACAD-features, as I've used ACAD at work (electrical design) for 15 years 😀

I like the design. What's it look like with the clips on? What kind of build is it going in? PIO? MWDMA? UDMA?

I have not used Fusion. I use tinkercad and export an STL. I used to send it off to my public library to print, but now I import into Creality Print and create a gcode file for the printer.

I have multiple systems so I will be printing quite a few of these (maybe eight?).
What clips did you mean? 😀

oh2ftu wrote on 2024-12-30, 08:40:

I have multiple systems so I will be printing quite a few of these (maybe eight?).
What clips did you mean? 😀

Getting bridged sata devices to do MWDMA transfers can be a challenge. IDE contollers that do MWDMA but not UDMA are late 486 controllers like the CMD640 and PDC20630 up through the PIIX3 pentium south bridge from intel. Mostly systems that would have shipped with Windows 95. You can always fall back to the PIO modes.

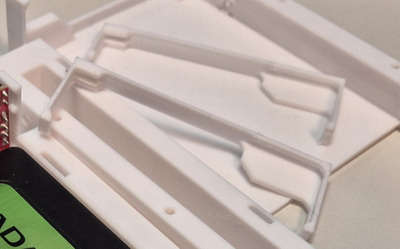

These were the clips I was talking about:

Oh, those were just prints to adjust the sata-adapter mount 😀

Hello!

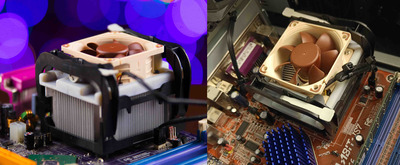

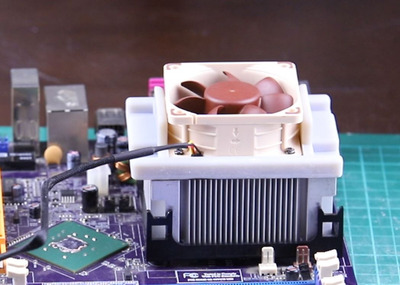

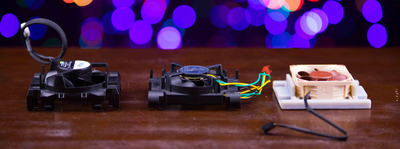

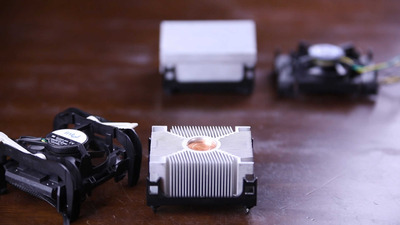

Got a tip this thread. This is an adapter that you can use to install a 60 mm fan to stock Intel socket 478 cooling assembly.

A video: https://youtu.be/xkzoRT0c4uE
Download: https://www.thingiverse.com/thing:6879228

As I worked through the AGP & PCIE, I realized that:

1. Newer cards often meant heavier cards that need better support
2. AGP & PCI cards have tables for stands that work a lot better than mounting on the contacts
3. Big flat bases use a lot of plastic and are prone to misprint
4. Needed to improve support for double width cards

So here's the new batch. Might be a little tweaking over the next few days, but pretty much done at this point:

ISA/VLB Card Stand:
https://www.tinkercad.com/things/16pMpNOqcl8- … d-stand-36-gram
https://www.thingiverse.com/thing:6919767
PCI Card Stand:
https://www.tinkercad.com/things/iYex3uzUq3u- … d-stand-24-gram
https://www.thingiverse.com/thing:6919775
AGP Card:
https://www.tinkercad.com/things/5mAiN2849sr- … d-stand-28-gram
https://www.thingiverse.com/thing:6919778
PCIE Card Stand:
https://www.tinkercad.com/things/gHMSxvgj37Y- … d-stand-36-gram
https://www.thingiverse.com/thing:6919789

Ok, so after a few attempts it seems quite ready. The mount itself is still a little flawed, but I'm waiting for better filament before a reprint.
These are not available on printables (yet) but at some point they will be.

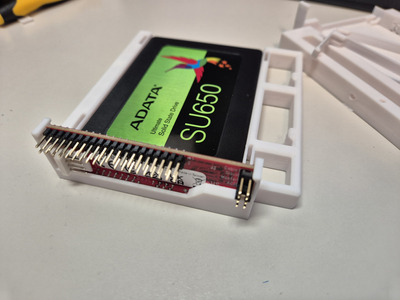

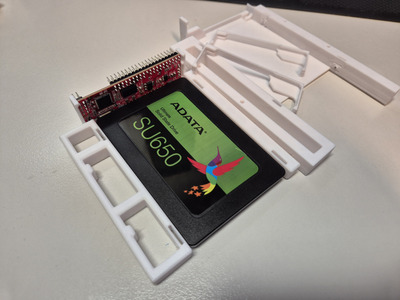

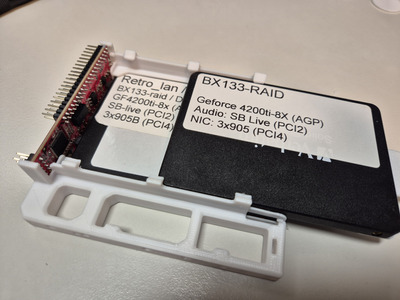

The SSD-adapter will hold a Startech-adapter with one drive connected. Another drive can be slotted in above it.
Only 7mm drives supported, but it's easily modified to take just one taller drive.
It has 3,5" dimensions with holes for 6-32UNC with HDD-spacing, as well as M3 holes with floppydrive-spacing. There's a faceplate that should fit a floppy slot too.

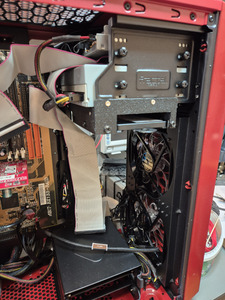

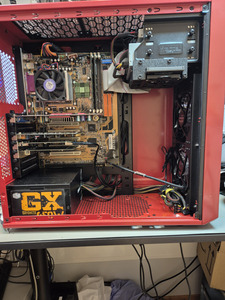

The side and front which accomodate mounting to the Fractal design Focus G case are screwed with 6-32UNC screws (also snap-on fitment). The front facia mounting also has slots for M3 square nuts if you prefer M3 countersunk screws.

khyypio wrote on 2025-01-02, 15:40:

Hello! […]
Show full quote

Hello!

Got a tip this thread. This is an adapter that you can use to install a 60 mm fan to stock Intel socket 478 cooling assembly.

A video: https://youtu.be/xkzoRT0c4uE
Download: https://www.thingiverse.com/thing:6879228

Very nice!

As long as the heat sink doesn't go beyond 60-70°C the 3D print should hold without warping if PETG is used.

I modified a Slotket mount from printables to work better with Asus S370 series slotkets. I also adapted the model to use the default intel supplied retention screws to eliminate the need for a new backplate.

pictures here:
Re: What retro activity did you get up to today?

stl here:
https://www.printables.com/model/1146783-asus … l-slotket-mount

douglar wrote on 2025-01-03, 12:52:

ISA Card Stand Revised: (Less plastic, easier to insert cards) https://www.tinkercad.com/things/5l1ZAej2Uer-isa-stand-x8-v2 […]
Show full quote

ISA Card Stand Revised: (Less plastic, easier to insert cards)
https://www.tinkercad.com/things/5l1ZAej2Uer-isa-stand-x8-v2

PCI Card Stand:
https://www.tinkercad.com/things/5somcojxj7R-pci-stand-8x

The attachment Photo Jan 03 2025, 7 41 56 AM.jpg is no longer available

The attachment Photo Jan 03 2025, 7 41 50 AM.jpg is no longer available

Any chance you could make one for AGP? I've got more of those than I remembered...

aspiringnobody wrote on 2025-01-14, 11:24:

Any chance you could make one for AGP? I've got more of those than I remembered...

I did the prototype but then I needed more filament. And then I got more filament but ran out of retro time. I’ll have something by the weekend.

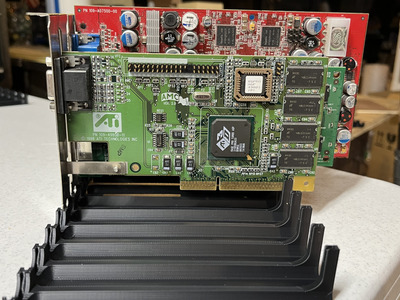

I need a second draft. The AGP cards have that high cut at the end.

douglar wrote on 2025-01-16, 01:49:

I need a second draft. The AGP cards have that high cut at the end.

Looking good!
