Predator99 wrote:Yes sure, I also noticed the cable on the MFM connector. The Drive is a Seagate ST251-1 and seems to be working. […]
Show full quote
95DosBox wrote:Make sure you hook up that 20pin MFM Hard drive connector that's loosely hanging almost off the pins or that Seagate hard drive […]
Show full quote
Predator99 wrote:
Looked quite unmodified to me so I powered on. All drives initialized and Post-Beep was there, but no picture on the screen. Was also not reproducable. Here we can see the reason why...
Make sure you hook up that 20pin MFM Hard drive connector that's loosely hanging almost off the pins or that Seagate hard drive won't be detectable.
Never seen such memory expansion connector
Haven't seen this before but boards like this existed back in the day from systems like the IBM PC where you had 64KB and needed some board to boost it 384KB or more. I think judging by the connector it's really an ISA 8-bit. But the problem is the board was too damn long so they decided to put another 8-bit ISA slot if you look at the far right stacked. So if you didn't put this into a case and removed the motherboard I think that memory board will work in any ISA slot. I think they customized this board for balancing the board rather than one end kind of dangling.
Yes sure, I also noticed the cable on the MFM connector. The Drive is a Seagate ST251-1 and seems to be working.
The Mainbaord seems to be similar to this one
http://stason.org/TULARC/pc/motherboards/A/AU … M-12-16-II.html
So it is not ISA but a 32-bit external memory card (8MB).
I inserted my diagnotic card in the front slot by mistake and it didnt work...so no ISA at all in this slot.

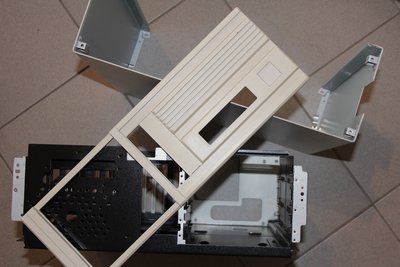

Not that much time at the moment, but I didnt want to wait too long to remove this battery. Therfore disassembled verything, the case enjoyed a bath in the dishwahser.

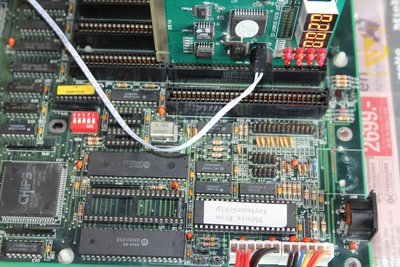

Cleaned the board but now it gives
00-02
(02)[Beep]=1-1-3 CMOS write/read test in-progress or failure.
Fixed the 5V trace on the board, but all others seem to be OK. Have to take a closer look at this.
A very strange motherboard indeed. From the link you provided.
SL1
32-bit external memory card (2MB)
SL2
32-bit external memory card (8MB)
So this indicates somehow it can get up to 8MB. How much onboard RAM could you install and would it add the 8MB on top of that or replace it? That would be impressive for a 286 back in the day. I think the most I would have seen typically might be 1MB on board but maybe 4MB could have been doable back then with a card.
But that link also warns on the 2MB card Note: The 512KB and 1.5MB settings are not recommended. So you are stuck with 1MB or 2MB .
I think the 8MB version was meant for certain motherboards with that peculiar slot placement. I don't think I ever had any of those. I only recall standard 8-bit and 16-bit ISA slots.
What is the name of that diagnostic board you are using?
I seem to recall one with name Blue in it that I have somewhere used in a computer store for testing systems.
Personally I'd hook up a regular internal PC speaker to the motherboard. Then get a VGA ISA card if you only got newer monitors for display output. Sometimes if you can't see the BIOS boot screen then you have some other issue that requires high level fixing which could be replacing capacitors or something more intense which I'd just move onto another MB unless you are an Engineer. Also some real older motherboards I had there was a MONO / COLOR switch so if this was set on Monochrome you would not get output possibly on VGA cards. So if you do own a monochrome monitor which I still have a few you could hook up a Monochrome graphics card to that. But what was common in that time era would have been a CGA card so finding those types of monitors are harder to come by if they still work. A few of mine have died over the years so VGA 8-bit cards are usually the best way to use these older relics. On top of all that I'd also hook back up that Floppy Disk/HD Controller card with a 5 1/4" 360KB drive with a bootable DOS disk like 3.30. Earlier 2.10 would have been great for these systems. If that controller card doesn't boot try another one. Sometimes these could also be bad and be the culprit. Also unhook the MFM Hard drive two cables 20pin and 34pin and disconnect the power on the Seagate hard drive side so it doesn't try to detect this. Sometimes a bad hard drive can stall the entire system from booting. I had a few Maxtors that gave up the ghost and I think it would try and detect it forever.
Trying to figure out the Hard Driver parameters was also another pain unless it was written on the drive. Then making sure your BIOS supported it. Assuming that Seagate still works I'd still go the Floppy Drive boot test first. Then you can try booting with the floppy drive lever disabled to see if the Hard drive can boot up to DOS if not you'll need the Floppy Disk method to low level format or use spinrite first to detect and fix any possible errors on the hard drive before using. These MFM hard drives always had tons of errors depending on the amount of usage it got. And not knowing the history of this computer this is the way to go before putting any data on it or you'll end up with a ton of CRC errors when accessing the files you thought successfully copied.
I can't remember if these memory upgrade boards simply worked and it recognized the full 8MB or did you have to load some DOS based driver before a memory manager to utilize it. Most of the systems I used the memory was socketed on the motherboard. And once 386 started using SIPPS or SIMMS it was less of a headache than cranking each chip one at a time.
bjwil1991 wrote:yawetaG wrote:Install a battery holder and appropriate battery. Some systems won't boot without a battery present.
Or a 5.5v memory super capacitor can be used in placed of the NiCd battery, or using a cordless phone NiMH battery pack to the motherboard (mounted somewhere safe, that is) since some boards don't have jumpers for an external battery pack.
The motherboards that could use 4 AA batteries were the nicest. But you had to make sure to replace these before they died or leaked and could damage the motherboard. I can't remember how long they typically lasted but they were easier to change. But from memory I don't recall any motherboards that didn't boot up without a battery pack. A lot of the earlier ones you had to buy a special I/O Clock card so that had a lithium battery on it to keep track of the date and time. Otherwise 1-1-1980 was usually the date. But I don't think that prevented any machine from booting. Which motherboards did you see this problem not booting up without a working battery?
