80386 BIOS image collection

Topic actions

First post, by Predator99

User metadata
Rank Oldbie
Rank
Oldbie

80286 BIOS image collection
80286 BIOS image collection

80386 BIOS image collection
80386 BIOS image collection

80486 BIOS image collection
80486 BIOS image collection

XT BIOS image collection
XT BIOS image collection

!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!

+++Discussions here please to keep readability
BIOS image collection - requests, discussion etc
+++Discussions here please to keep readability

!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!
Format:
#: ongoing number
Manufacturer/Identifier: Identification that can be read on the board
Chipset: main Chips used
BIOS/Version: optional
ZIP with images

Last edited by Predator99 on 2019-07-15, 22:58. Edited 4 times in total.

Reply 1 of 58, by Predator99

User metadata
Rank Oldbie
Rank
Oldbie

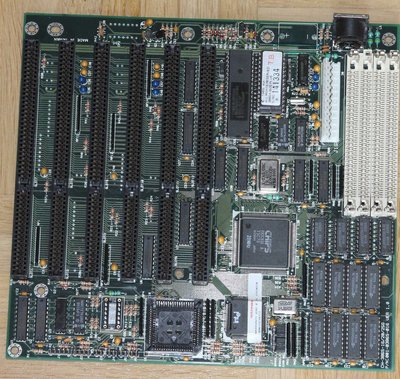

#1
Manufacturer/Identifier: CH-386S-16/20/25G P/N:001-0386S-016
Chipset: CHIPS F82C836

Filename
386-CH-386S.zip
File size
732.94 KiB
Downloads
45 downloads
File license
Fair use/fair dealing exception
Filename
File size
696.03 KiB
Views
2074 views
File license
Fair use/fair dealing exception

Reply 2 of 58, by Predator99

User metadata
Rank Oldbie
Rank
Oldbie

#2

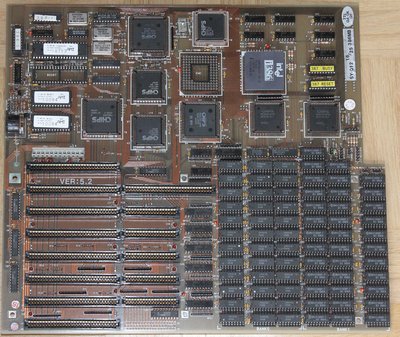

Manufacturer/Identifier: SY-012 16/25 386MB
Chipset: P82C310C; P82A306; P82A303; P82C206; P82A304; P82C302; P82B305

Filename
386-SY-012.zip
File size
949.96 KiB
Downloads
35 downloads
File license
Fair use/fair dealing exception
Filename
File size
883.44 KiB
Views
2074 views
File license
Fair use/fair dealing exception

Reply 3 of 58, by Predator99

User metadata
Rank Oldbie
Rank
Oldbie

#3
Manufacturer/Identifier: n/a
Chipset: FOREX FRX46C402 FRX36C300 SIS 85C206

Filename
386-Forex.zip
File size
1.13 MiB
Downloads
34 downloads
File license
Fair use/fair dealing exception
Filename
File size
1.09 MiB
Views
2074 views
File license
Fair use/fair dealing exception

Reply 4 of 58, by Predator99

User metadata
Rank Oldbie
Rank
Oldbie

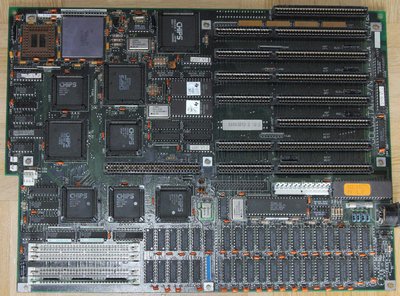

#4
Manufacturer/Identifier: GOLDSTAR P/N 611-606A
Chipset: CHIPS P82C206 P82C301 P82A303 P82C302 P82A304 P82A305 P82A306

Filename
386-Goldstar.zip
File size
1.04 MiB
Downloads
45 downloads
File license
Fair use/fair dealing exception
Filename
File size
1 MiB
Views
2073 views
File license
Fair use/fair dealing exception

Reply 5 of 58, by Predator99

User metadata
Rank Oldbie
Rank
Oldbie

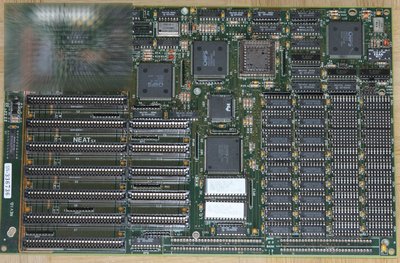

#5
Manufacturer/Identifier: NEATsx
Chipset: CHIPS P82C206 P82C811 P82C215

Filename
File size
789.29 KiB
Views
2073 views
File license
Fair use/fair dealing exception
Filename
386-NEATsx.zip
File size
866.75 KiB
Downloads
49 downloads
File license
Fair use/fair dealing exception

Reply 6 of 58, by Predator99

User metadata
Rank Oldbie
Rank
Oldbie

#6

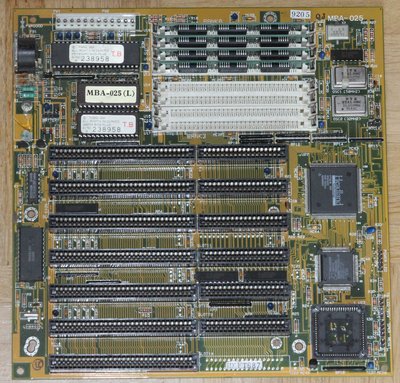

Manufacturer/Identifier: MBA-025
Chipset: Headland HT18/8

Filename
386-MBA-025.zip
File size
1.11 MiB
Downloads
31 downloads
File license
Fair use/fair dealing exception
Filename
File size
1.03 MiB
Views
2073 views
File license
Fair use/fair dealing exception

Reply 7 of 58, by Predator99

User metadata
Rank Oldbie
Rank
Oldbie

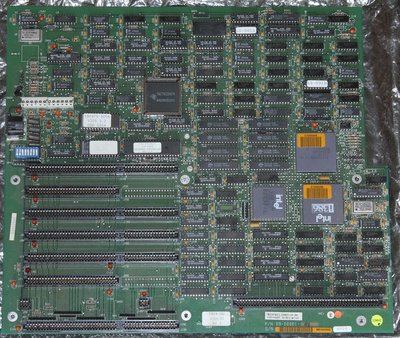

#7
Manufacturer/Identifier: Micronics P/N 09-00021 TANDON CORP 191944-003
Chipset: TACT82206FN; Intel A82385-33

Filename
386-Micronics-09-00021.zip
File size
967.63 KiB
Downloads
41 downloads
File license
Fair use/fair dealing exception
Filename
File size
862.9 KiB
Views
2073 views
File license
Fair use/fair dealing exception

Reply 8 of 58, by Predator99

User metadata
Rank Oldbie
Rank
Oldbie

#9
Manufacturer/Identifier: Shuttle 386SX
Chipset: KU82335 SX042, Intel N82230-2; Intel N82231-2

Filename
386-Shuttle386SX.zip
File size
867.13 KiB
Downloads
32 downloads
File license
Fair use/fair dealing exception
Filename
File size
772.79 KiB
Views
2073 views
File license
Fair use/fair dealing exception

Reply 9 of 58, by Predator99

User metadata
Rank Oldbie
Rank
Oldbie

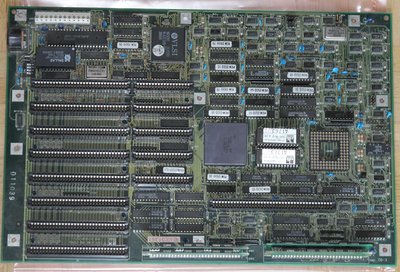

#10
Manufacturer/Identifier: DTK PEM 2530
Chipset: VLSI 9032BT 217203 VL82C100
(not the original BIOS, chips are damaged. But the uploaded one works without problems)

Filename
386-DTK PEM-2530.zip
File size
928.12 KiB
Downloads
30 downloads
File license
Fair use/fair dealing exception
386-DTK PEM-2530.jpg
Filename
386-DTK PEM-2530.jpg
File size
859.82 KiB
Views
2073 views
File license
Fair use/fair dealing exception

Riginal BIOS - thanks vann5176:

Filename
386-DTK PEM-2530 80386 BIOS .rar
File size
24.41 KiB
Downloads
19 downloads
File license
Fair use/fair dealing exception
Last edited by Predator99 on 2019-02-10, 09:37. Edited 2 times in total.

Reply 10 of 58, by Predator99

User metadata
Rank Oldbie
Rank
Oldbie

#11

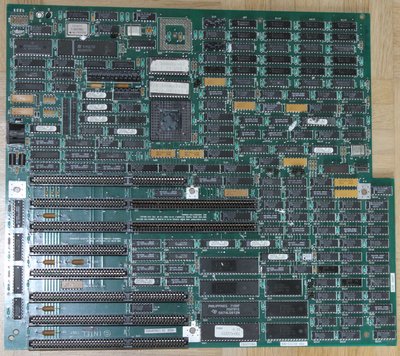

Manufacturer/Identifier: Intel 1987
Chipset: Intel P8237A, P8254; P8259A

Filename
386-Intel.zip
File size
1.17 MiB
Downloads
43 downloads
File license
Fair use/fair dealing exception
Filename
File size
1.14 MiB
Views
2073 views
File license
Fair use/fair dealing exception
Last edited by Predator99 on 2018-05-26, 06:51. Edited 1 time in total.

Reply 11 of 58, by Predator99

User metadata
Rank Oldbie
Rank
Oldbie

#12
Manufacturer/Identifier: n/a
Chipset: OPTi 82C392 82C391 UMC UM82C206F
image: tbd (soldered...)

Filename
File size
855.22 KiB
Views
2073 views
File license
Fair use/fair dealing exception

Reply 12 of 58, by Predator99

User metadata
Rank Oldbie
Rank
Oldbie

#13
Manufacturer/Identifier: 386SXU-A
Chipset: SiS 85C206 UMC UM82C336F/N
BIOS: missing 😉
EDIT: I can confirm this board boots with the #19 Image (3FLUD)

Filename
File size
840.2 KiB
Views
2072 views
File license
Fair use/fair dealing exception
Last edited by Predator99 on 2018-06-15, 09:21. Edited 2 times in total.

Reply 13 of 58, by quicknick

User metadata
Rank Member
Rank
Member

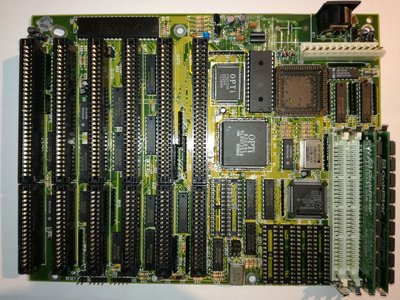

#14
Manufacturer/Identifier: DTK Computer PPM-3333P
(originally added as "Unknown 386SX-33 with cache")
Chipset: OPTi 82C291
Two BIOSes for this board, the original Award and an AMI found on the net.

Filename
Unknown 386SX OPTi291 Award+AMI.zip
File size
75.05 KiB
Downloads
37 downloads
File license
Fair use/fair dealing exception
Filename
File size
430.27 KiB
Views
2011 views
File license
Fair use/fair dealing exception
Last edited by quicknick on 2019-02-26, 22:36. Edited 1 time in total.

Reply 14 of 58, by quicknick

User metadata
Rank Member
Rank
Member

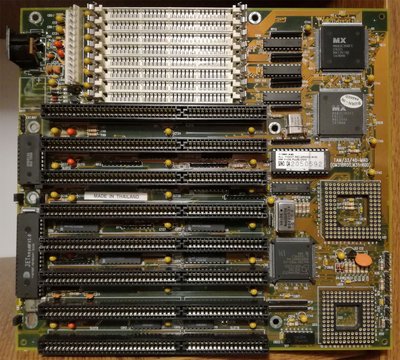

#15
Manufacturer/Identifier: TAM/33/40-MA0 (CM318R00,M31-R00)
Chipset: MX83C305, MX83C306

Filename
TAM_33_40-MA0 (386DX, MX83C305).zip
File size
36.82 KiB
Downloads
34 downloads
File license
Fair use/fair dealing exception
Filename
File size
470.23 KiB
Views
2010 views
File license
Fair use/fair dealing exception

Reply 15 of 58, by ATauenis

User metadata
Rank Member
Rank
Member

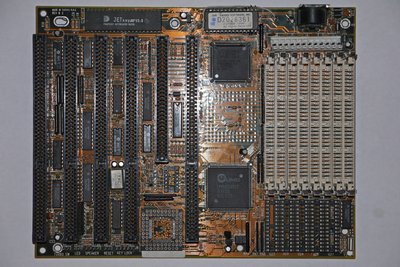

#16
Manufacturer/Identifier: Unknown rev.03 (looks like Magitronic TK-82C491-386-4N-D02C/US Technologies TK-82C491, 493 386-4N-D04/UM386 GRN/no-name 386-GRN).
Chipset: UMC UM82C491F
BIOS ID: 08/30/93-UMC-491-214X2000-OO

Filename
File size
1.5 MiB
Views
1811 views
File license
Fair use/fair dealing exception

BIOS:

Filename
386grn-like.zip
File size
41.9 KiB
Downloads
33 downloads
File license
Fair use/fair dealing exception

Note: The mobo requires cache to be installed for work! Without cache chips it does not starts at all, the code on PC Analyzer will be 00. With only Tag chip installed it can beep something about RAM, and with a full set of cache chips it is working.

#almost all other (but w/o images):
http://chukaev.ru54.com/bios_cs_en.htm
http://chukaev.ru54.com/bios_en.htm

Last edited by ATauenis on 2018-05-28, 19:19. Edited 2 times in total.

2×Soviet ZX-Speccy, 1×MacIIsi, 1×086, 1×286, 2×386DX, 1×386SX, 2×486, 1×P54C, 7×P55C, 6×Slot1, 4×S370, 1×SlotA, 2×S462, ∞×Modern.

Reply 16 of 58, by Anonymous Coward

User metadata
Rank l33t
Rank
l33t

Might I suggest also indicating which BIOS the board is using? Both the manufacturer, and the version number.

"Will the highways on the internets become more few?" -Gee Dubya
V'Ger XT|Upgraded AT|Ultimate 386|Super VL/EISA 486|SMP VL/EISA Pentium

Reply 18 of 58, by bakemono

User metadata
Rank Member
Rank
Member

#17
ID: Dell 386SX-33 with 2x 72-pin SIMMs, ISA riser slot
chipset: VLSI 82C311, Cirrus Logic GD5420
BIOS: 27C010 EPROM containing Quadtel VGA BIOS and Phoenix system BIOS 02/09/93

Jostens Learning Corporation 386/33SX
Copyright (C) 1990-1992 Dell Computer Corporation

Attachments

  • Filename
    dell386.zip
    File size
    68.03 KiB
    Downloads
    32 downloads
    File comment
    ROM image
    File license
    Fair use/fair dealing exception
  • dell386.jpg
    Filename
    File size
    548.15 KiB
    Views
    1890 views
    File comment
    board photo
    File license
    Fair use/fair dealing exception

Reply 19 of 58, by Tiido

User metadata
Rank Oldbie
Rank
Oldbie

#18
Board ID : SER-386AD III (written underside of the board)
Chipset : ALI M1429 A1 + ALI M1431 A2
BIOS : AMIBIOS 04/04/1993, on a 27C512 type ROM chip (64KB)
ID string : 40-0212-001133-00101111-040493-ALI1429-F

Filename
File size
714.91 KiB
Views
1881 views
File license
Fair use/fair dealing exception

Attachments

  • Filename
    SER386AD3.rar
    File size
    41.51 KiB
    Downloads
    34 downloads
    File license
    Fair use/fair dealing exception

T-04YBSC, a new YMF71x based sound card & Official VOGONS thread about it
Newly made 4MB 60ns 30pin SIMMs ~
mida sa loed ? nagunii aru ei saa 😜
