AGP port stuck in 1x mode

Topic actions

Post a reply

First post, by kaputnik

Posted on 2023-07-02, 12:08

kaputnik Offline

Rank Oldbie

Rank: Oldbie
Posts: 823
Joined: 2016-01-12, 11:00
Location: Stockholm, Sweden

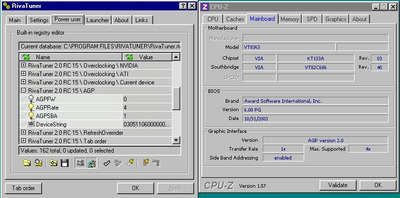

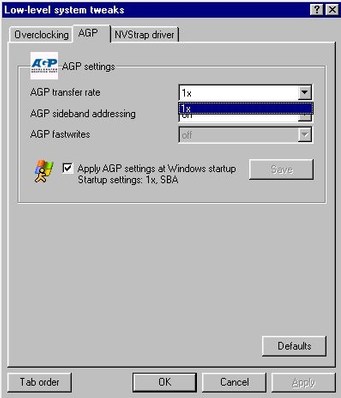

Finally recapped the mobo in my Athlon rig, and now I'm trying to solve a long standing problem. AGP is stuck in 1x mode.
