NEC MVA 1024 EGA / TIGA / PGC?

Postby Predator99 » 2019-1-16 @ 21:31

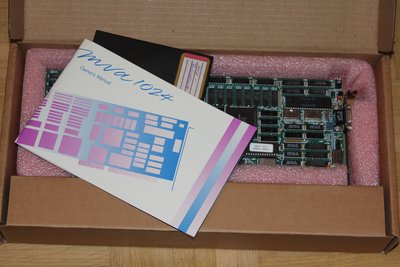

Arrived today:

Looks new, but Driver Disk is just a copy. Cover is missing, hope its readable.

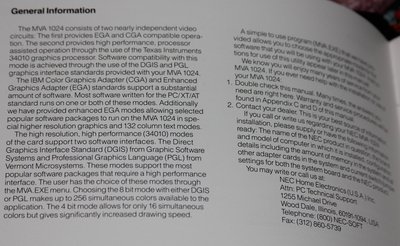

According to the manual its EGA/CGA comatible. Not sure about other features or PGC compatability. Output is analog at least.




Will test and post more when I have time ;-)
Predator99
Oldbie

Posts: 840
Joined: 2016-12-28 @ 19:09

Re: NEC MVA 1024 EGA / TIGA / PGC?

Postby Predator99 » 2019-1-17 @ 17:51

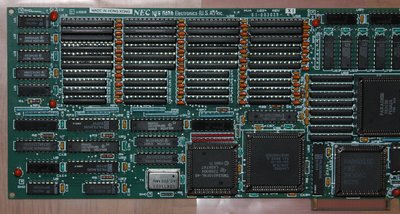

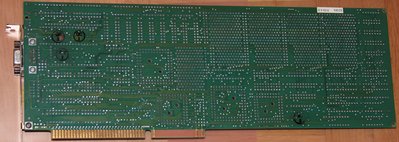

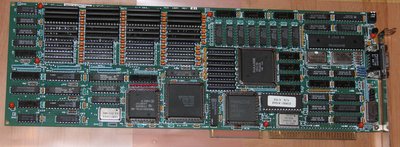

Better pictures of the card:





And driver disk is working :cool:
MVP1024-Driver Disk.rar
(317.94 KiB) Downloaded 3 times


Code: Select all

E:\
│   CGIDGIS.SYS
│   COFFLOAD.EXE
│   DGIS.EXE
│   DGIS.OUT
│   GEMFONTS.LST
│   GSSDGI.SYS
│   IMDOS.SYS
│   INSTALL.EXE
│   MVA.EXE
│   NECKEY.COM
│   PEGA3.SC
│   PEGA4.SC
│   PEGA5.SC
│   PEGA6.SC
│   PEGA7.SC
│   PGL.OUT
│   PGL640.EXE
│   PGLHIRES.EXE
│   README
│   SDEGA480.EGA
│   SDEGA480.SYS
│   SD_GDGI1.EGA
│   SETUP.TXT
│   VP1_1.TXT
│   XMODE.EXE
│
├───ACAD9
│       READ.ME
│       TSRADI2.EXE
│       TSRADI9.EXE
│       LIESMICH.VOR
│
├───CADVANCE
│       GS.DRV
│       README.DOC
│
├───CGI_DGIS
│       CGIDGIS.SYS
│       README.TXT
│
├───COMPVISN
│       DGIS.DEV
│       DGIS0.DIF
│       DGIS1.DIF
│       DGIS2.DIF
│
├───DGIS
│       DGIS.DRV
│       DGIS.GRB
│       DGIS.LGO
│       DGISAD9.EXE
│       DGISADI.EXE
│       DGISPREP.EXE
│       README
│       WINDGIS.BAT
│
├───VP
│       DGISPREP.DOC
│       DGISPREP.EXE
│       GEMFONTS.LST
│       GSSDGI.SYS
│       SD_GDGI1.EGA
│
├───GEMFONTS
│       IBMPSS07.FNT
│       IBMPSS10.FNT
│       IBMPSS14.FNT
│       IBMPSS18.FNT
│       IBMPSS36.FNT
│       IBMPTR07.FNT
│       IBMPTR10.FNT
│       IBMPTR14.FNT
│       IBMPTR18.FNT
│       IBMPTR36.FNT
│
├───PCAD
│       DDGIS.DRV
│
├───PGL
│       IMADI.CFG
│       IMADI.EXE
│       IMCON.EXE
│       IMPCAD.DRV
│
├───WIN2
│       DGIS.DRV
│       DGIS.GRB
│       DGIS.LGO
│       README
│
└───WP5
        DGIS.WPD

Predator99
Oldbie

Posts: 840
Joined: 2016-12-28 @ 19:09

Re: NEC MVA 1024 EGA / TIGA / PGC?

Postby Predator99 » 2019-1-18 @ 22:27

Manual:

NEC MVA 1024 Manual.pdf
(1.81 MiB) Downloaded 4 times
Predator99
Oldbie

Posts: 840
Joined: 2016-12-28 @ 19:09

Re: NEC MVA 1024 EGA / TIGA / PGC?

Postby Predator99 » 2019-1-19 @ 11:46

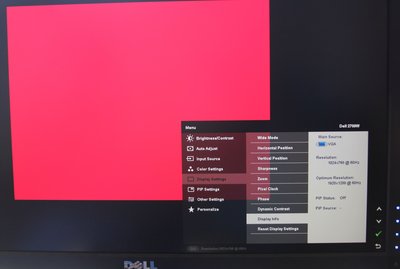

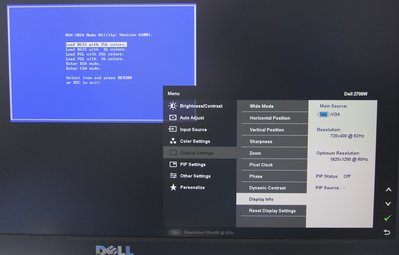

Did a first test and tried to connect to a VGA Monitor with a standard DB9-15Pin Adapter. Did not display anything on my Samtron. But to my surprise it worked on my Dell 2709W!

Did not expect it because the output has composite sync.

It seems it booted with CGA enabled. When I try to switch to EGA mode sync is lost. But the 1024x768 mode also works.



Predator99
Oldbie

Posts: 840
Joined: 2016-12-28 @ 19:09

Re: NEC MVA 1024 EGA / TIGA / PGC?

Postby Predator99 » 2019-1-20 @ 10:33

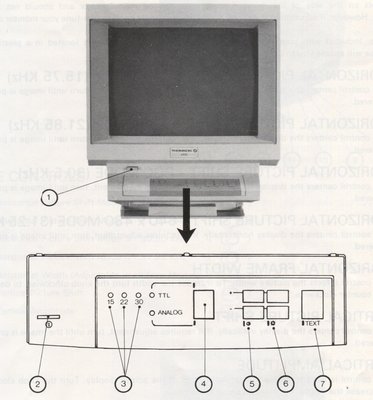

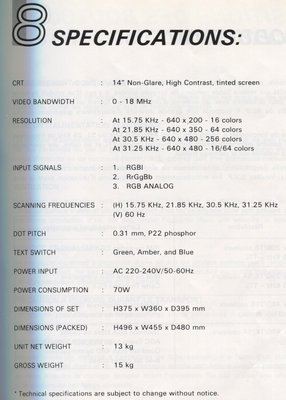

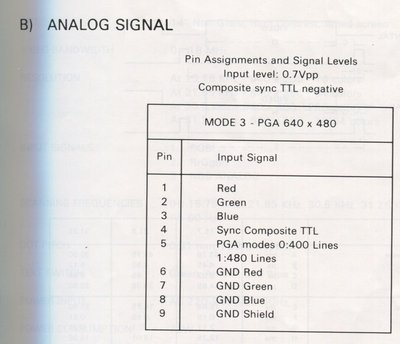

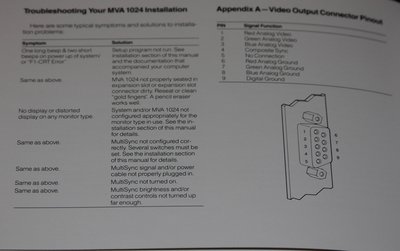

As the Pin assignments were identical I tried to connect to my Thomson EGA/PGC monitor. It doesnt sync in the correct way. I disconnected at once not to damage anything. Therefore...the output of the MVA is not compatible to PGA..nice card anyway ;-)





Predator99
Oldbie

Posts: 840
Joined: 2016-12-28 @ 19:09
