First post, by Predator99

Posted on 2020-08-23, 12:32

Predator99 Offline

Rank l33t

Rank: l33t
Posts: 2042
Joined: 2016-12-28, 19:09

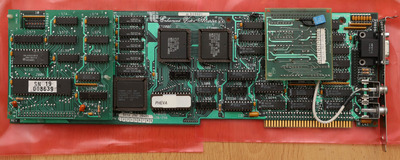

I think this nice card I got recently deserves its own topic 😉 Its a TSENG EVA/480 ET-2000 EGA card:

It has the same PCB as the NEC GB-1 COLOR GRAPHICS BOARD:
https://arvutimuuseum.ee/th99/v/M-O/52507.htm

Ad taken from here:
http://www.thecomputerarchive.com/Displays/Vi … Card%20BG-I.PDF

Filename: NEC MultiSync Graphics Card BG-I.PDF
File size: 852.94 KiB
Downloads: 105 downloads
File license: Fair use/fair dealing exception

There a two add-on boards.
One connected to the feature connector providing TV-out. Dont know why the cable is soldered to the connector. As far as I remember it can also be connected via the feature connector without extra cable. Maybe to improve quality.

The other one...dont know yet, its not a memory expansion.
There is a Z80 and a HM6116 CMOS RAM on it.
https://pdf1.alldatasheet.com/datasheet-pdf/v … CHI/HM6116.html
The card seems to work without it.

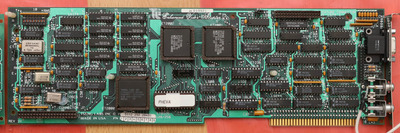

And without boards:

Pictures in operation later...

Reply 1 of 5, by Predator99

Posted on 2020-08-23, 21:10

Predator99 Offline

Rank l33t

Rank: l33t
Posts: 2042
Joined: 2016-12-28, 19:09

Newer revision of the card here:
Bought these (retro) hardware today

Composite out looks really nice on 320x200:

But is unusable with 640x350:

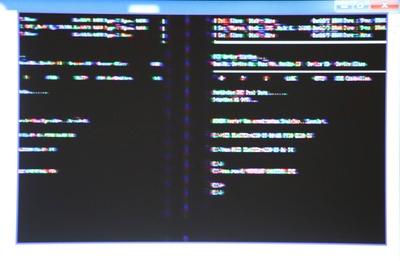

And all is in black and white. Dont know if this is caused by my LCD or if the circuit doesnt support color.

Digital out works as expected.

Reply 2 of 5, by Predator99

Posted on 2020-08-25, 08:28

Predator99 Offline

Rank l33t

Rank: l33t
Posts: 2042
Joined: 2016-12-28, 19:09

NSSI BIOS dump

[This is not a product of IBM (IBM is a trademark of International Business Machines Corp.)
* Copyright(c)1986 Tseng Laboratories, Inc. 07/28/86 V1.xx*

Filename: EGA ET2000.zip
File size: 11.7 KiB
Downloads: 79 downloads
File license: Fair use/fair dealing exception

Reply 3 of 5, by root42

Posted on 2020-08-25, 08:48

root42 Offline

Rank l33t

Rank: l33t
Posts: 2073
Joined: 2018-01-27, 13:23
Location: Germany

The black and white is probably because of PAL vs NTSC?

YouTube and Bonus
80486DX@33 MHz, 16 MiB RAM, Tseng ET4000 1 MiB, SnarkBarker & GUSar Lite, PC MIDI Card+X2+SC55+MT32, OSSC

Reply 4 of 5, by VileR

Posted on 2020-10-08, 00:50

VileR Offline

Rank l33t

Rank: l33t
Posts: 2157
Joined: 2003-05-14, 22:11
Location: 1-01-80 0:00a

Predator99 wrote on 2020-08-23, 12:32:
The other one...dont know yet, its not a memory expansion. There is a Z80 and a HM6116 CMOS RAM on it. https://pdf1.alldatasheet […]
Show full quote
The other one...dont know yet, its not a memory expansion.
There is a Z80 and a HM6116 CMOS RAM on it.
https://pdf1.alldatasheet.com/datasheet-pdf/v … CHI/HM6116.html
The card seems to work without it.

Oi. Came across this by accident, but that Z80 add-on is probably for register compatibility with CGA / Hercules / MDA:

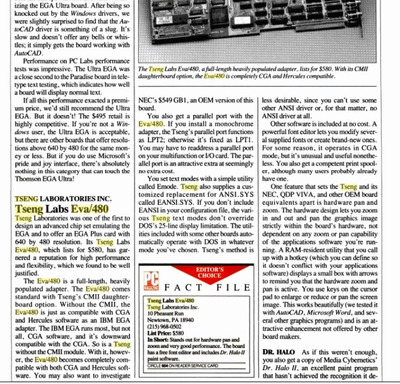

"A $50 optional daughterboard provides emulation of the CGA, HGC, and monochrome adapter." - https://archive.org/details/PC_Tech_Journal_v … de/2up?q=ET2000
And from someone's ebay listing: "the Z80 CMII module ... (Compatibility Module) manages CGA and Hercules compatibility. " - https://www.ebay.com/itm/Vintage-1986-NEC-MUL … U-/133185245469

That's for the non-"480" version of the EVA ET2000, although it still seems to have some pretty interesting features. Any chance you have any of the software or documentation for this thing?

[ WEB ] - [ BLOG ] - [ TUBE ] - [ CODE ]

Reply 5 of 5, by Predator99

Posted on 2020-10-08, 08:17

Predator99 Offline

Rank l33t

Rank: l33t
Posts: 2042
Joined: 2016-12-28, 19:09

Yes, also found that info:
https://books.google.de/books?id=gC-DsOtl2MgC … A%2F480&f=false

No software or doc, card comes from a scrap lot 😉
