4.2.2.2 Official product

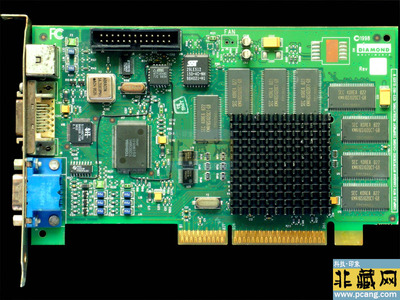

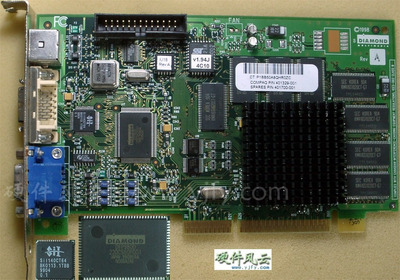

4.2.3 Viper V550 FP AGP
This model is an OEM version.
4.2.3.1 ES
After disassembling the machine, Diamond sends fully functional engineering samples to the manufacturer for use.

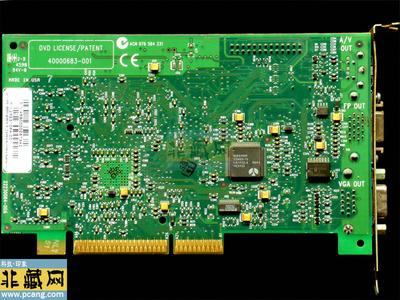

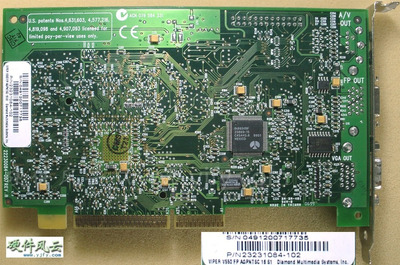

Viper V550 FP ES

4.2.3.2 Official product

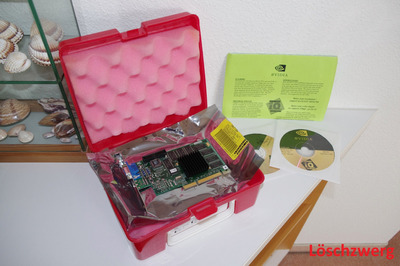

4.2.4 Riva TNT SDK

nVIDIA and STB graphics cards are optional for this component. I have an empty box to select Diamond. It is estimated that more Diamond graphics cards are used.
nVIDIA also presents engineering sample graphics cards in gift boxes to important customers.

4.3 STB

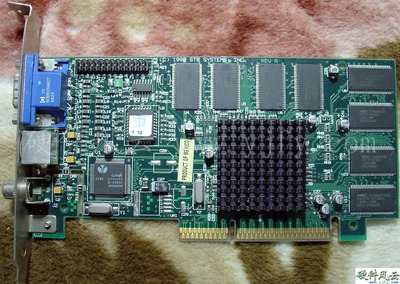

Velocity 4400

4.4 Visiontek

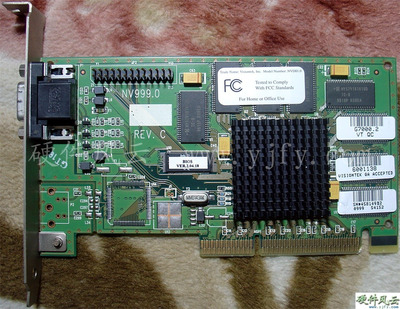

NVD01.0, this board type is very close to nVIDIA's Product Evaluation board.

4.5 ASUS

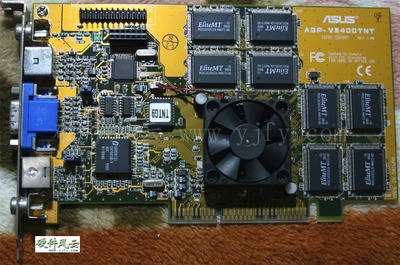

AGP-V3400TNT

4.6 Canopus

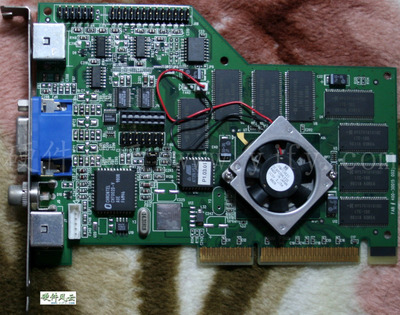

SPECTRA 5400

4.7.ELSA

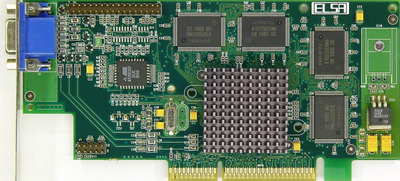

VICTORY II-A16

(From Palcal on vgamuseum.info)

4.8 Creative

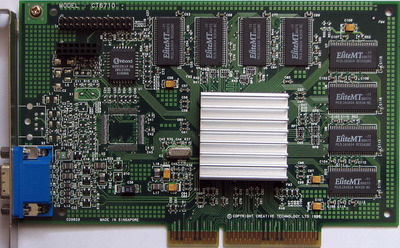

CT6710
(From Vlask on vgamuseum.info)

4.9 Hercules

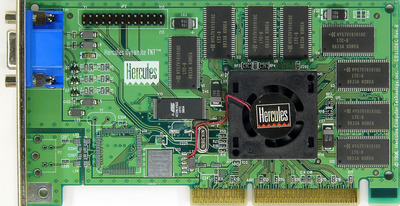

Dynamite TNT

(From Palcal on vgamuseum.info)

5. NV5 & NV6
Release Date：Mar 15th, 1999
The nVIDIA TNT2 was the first chipset to offer a 32-bit frame buffer for better quality visuals at higher resolutions, 32-bit color for more realistic colors, and a 32-bit Z/stencil buffer for incredible 3D effects—blazing

The TNT2 family is the first product line to offer "top-to-bottom" chips to satisfy the needs of every computer and user in the spectrum from basic to high-performance desktop PC computing.

The core code of Riva TNT2 is NV5, which is the cornerstone of nVIDIA's graphics dynasty so far. Thanks to the 0.25 micron process, the frequency of the nVIDIA Riva TNT2 Standard Edition has been increased to 125MHz. The frequency increase and the optimization of the core internals, the performance of nVIDIA Riva TNT2 With a big leap, the performance was unmatched at the time. In the later period, nVIDIA Riva TNT2 also uses NV6 with a 0.22 micron process, and the frequency is further improved.

Beginning with nVIDIA Riva TNT2, nVIDIA has marketed its products. At the high, middle and low end, nVIDIA Riva TNT2 chip derives TNT2 Ultra, TNT2 Pro, TNT2 M64, TNT2 Vanta, TNT2 Vanta LT, etc. Different models of products, with different capacities of video memory, the product line covers most of the market.

TNT2
Memory Speed:150 MHz
Pixels Per Second:230 Million
Memory Bandwidth:2.4GB/s

TNT2 Ultra
Memory Speed:183 MHz
Pixels Per Second:300 Million
Memory Bandwidth:2.9GB/s

TNT2 M64。

Later, with the progress of the process, NV6 also used 0.22 micron process, Release Date Oct 12th, 1999, and was named TNT2 PRO, which was also used in some TNT2 Ultra. After using the 0.22 micron process, the power consumption and heat generation of TNT2 PRO have been significantly reduced, the overclocking capability is stronger, and the cost performance is further improved. In addition to the high- and mid-end TNT2 standard version, nVIDIA also uses the 0.22 micron process NV6 chip to launch TNT2 Vanta and TNT2 M64 for low-end users.

The combination of reliability, compatibility, performance, and quality—at a low cost—has made nVIDIA Vanta the product of choice for leading OEMs and system integrators. The nVIDIA Vanta comes in 4-16MB configurations.

TNT2 Pro
Memory Speed:166 MHz
Pixels Per Second:284 Million
Memory Bandwidth:2.65GB/s

TNT2 M64
Memory Speed: 150 MHz
Pixels Per Second:230 Million
Memory Bandwidth:1.2GB/s

Vanta
Graphics Core:128-bit
Pixels per Second:200 Million
Memory Bandwidth:1.0GB/s

Vanta LT
Graphics Core:128-bit
Pixels per Second:160 Million
Memory Bandwidth:800 MB/s

5.1 nVIDIA

5.1.1 ES

5.1.1.1 CHIP EVALUATION board
The PCB date of the graphics card is 9850 weeks, earlier than the release date of Mar 15th, 1999 (9915 weeks).

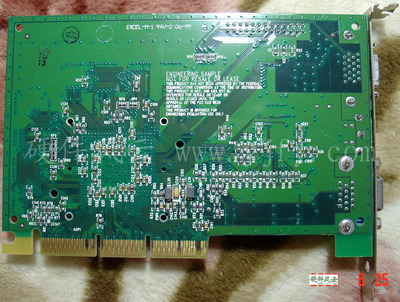

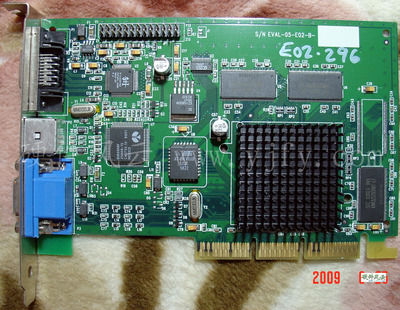

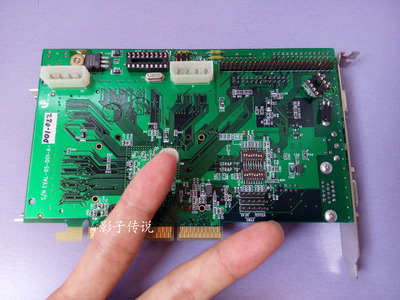

TNT2 CHIP EVALUATION board

5.1.1.2 PRODUCT EVALUATION board
PCB date 9906 weeks, earlier than the release date Mar 15th, 1999 (9915 weeks)

TNT2 PRODUCT EVALUATION board

5.1.1.3 Reference board
PCB date is 0010 week, and the release date is March 1, 2000 (0010 week).

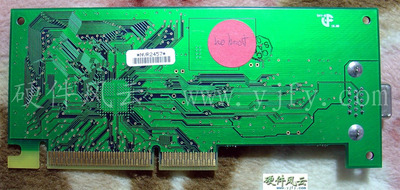

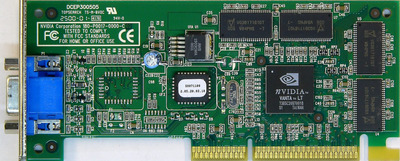

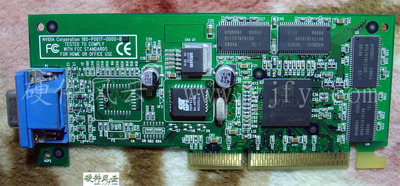

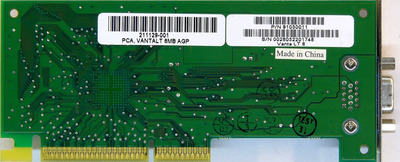

VANTA LT Reference board

The above graphics card is the public version or reference board often referred to now. The following graphics card is the manufacturer's public graphics card.

(From Palcal on vgamuseum.info)

5.1.2.1
nVIDIA subdivided the TNT2 graphics chip in this way, and Diamond only released three graphics cards to deal with it. At this time, Diamond was already showing fatigue.
5.2 Diamond
5.2.1 VIPER V770 ES

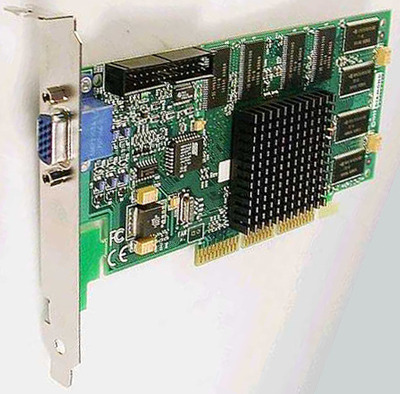

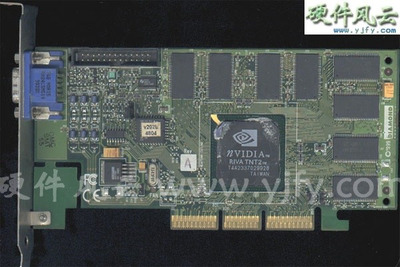

5.2.2 VIPER V770
TNT 2chip

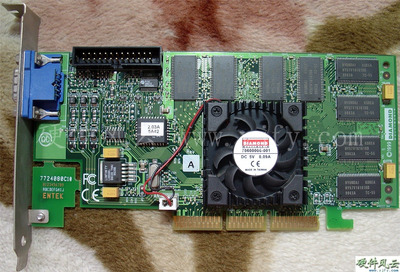

5.2.2 VIPER V770 Ultra
TNT2 Ultra chip

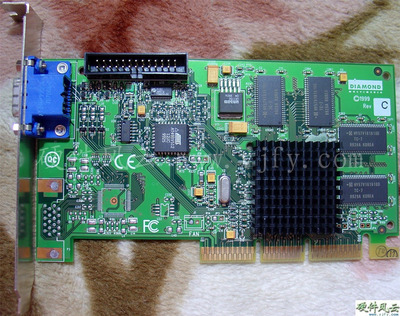

5.2.2 VIPER V730
Vanta chip

The PCB date of this graphics card is 9923 weeks, and Diamond was acquired by S3 on June 22, 1999 (9926 week).
It is a PCB board made before the acquisition. The memory chip date on the card is 9929 weeks, indicating that the card was finally manufactured by S3.

5.3 Gigabyte

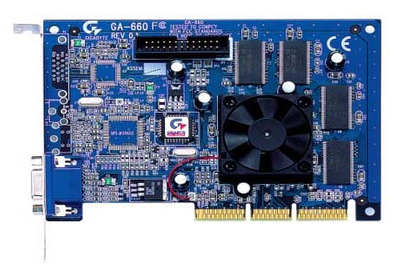

5.3.1 GA-660 ES

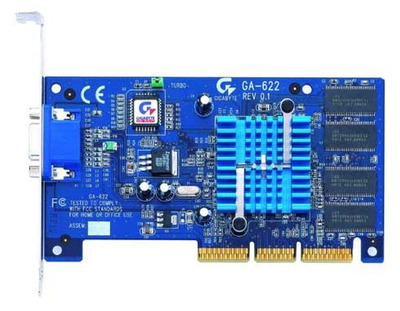

5.3.1 GA-622 ES
