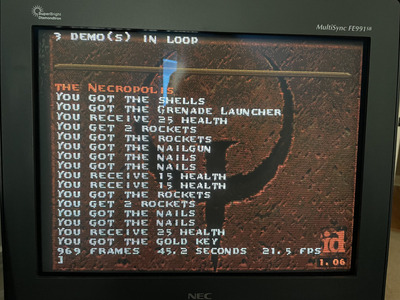

Attached are some images I took in preparation of the BL3 386 interposer hack. Another user commented that the Jaton has only 4 Vcc pins connected, but I won't be sure of the no-name interposer until I desolder the 386DX. Since there are four empty filter capacitor pads on the bottom of the PCB, I kind of assume there's also only 4 Vcc pins going to the QFP.

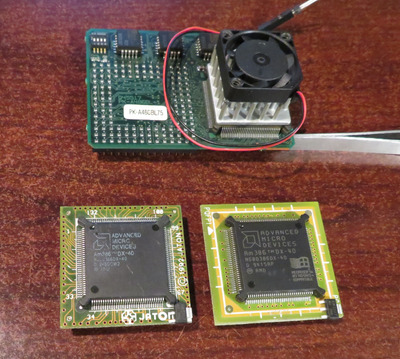

I've layed out the two interposers next to each other with the VRM on the PCB. The Jaton has the QFP leg over one of the VRM pins, but it might still be possible to use in this fashion. The Jaton does have more vias on the top which could increase the probability of a short. The VRM shown is the AM1117 adjustable.

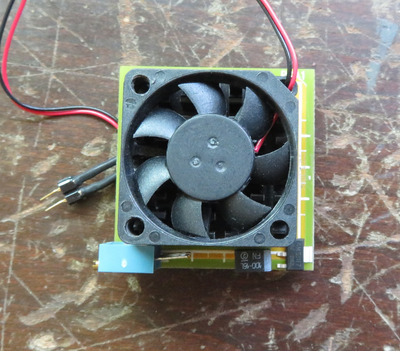

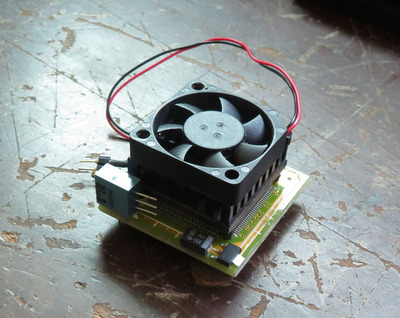

I've shown a trimmer from my bin, but most likely I'd source a trimmer with a side screw for easier voltage adjustment.
For the Evergreen Am5x86-133 interposer, I noticed that they always use a 100 uF tantalum for Vin and either 8x10 uF tantalum for Vout or 4x10 uF tantalum for Vout (different PCB revision). So perhaps I should copy this approach? If so, then add a 10 uF cap to each detached QFP Vcc lead? The Evergreen interposer also uses the 1117 VRM, but a different brand, EZ1117. Should I add a bypass capacitor to the adjust pin for ripple reduction, and if so, what value? 10 uF? Vout/Vref ~3.
