...also some new Boards:

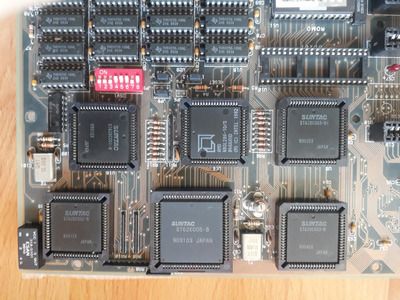

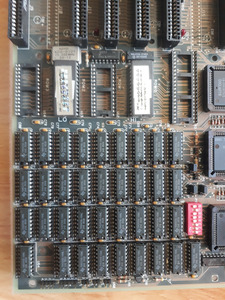

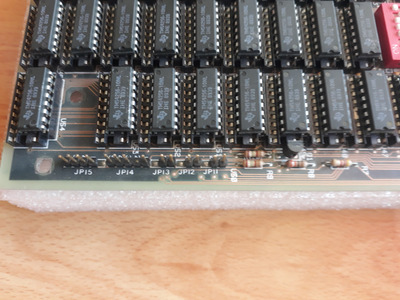

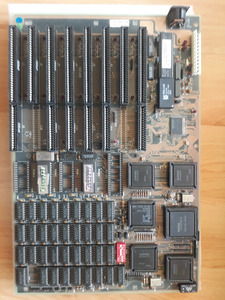

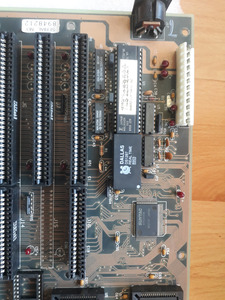

Hello, can't find any info about this board... Any idea about jumpers? For example where is turbo connector? External battery?

Suntac V2.06 (or V2.08) (wrote on board) Protek (wrote on board) BIOS 3.03HL "LOGO STAR" (shown under BIOS version line) AMD N80L286-10/S 1MB memory DIP switch (looks the same as on other Suntac boards)
ST62C005-B ST62BC00I-B ? ST62BC001-B ? ST62BC002-B ST62BC004-BI ST62BC003-B

This looks like the board I had. Mine also did not came with docs. If I recall correctly, it uses the same dip switch settings as other suntac boards.

HanJammer wrote on 2019-06-25, 13:41:

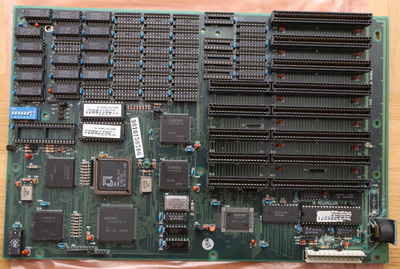

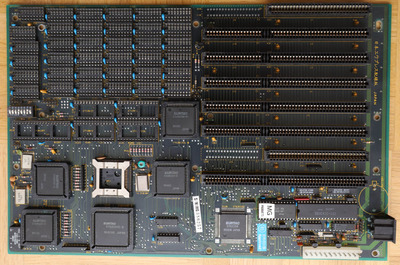

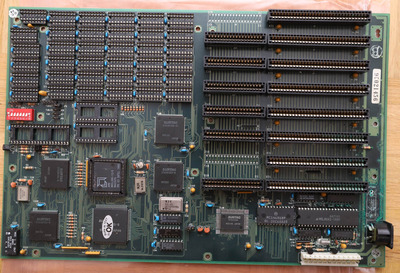

My collection of Suntac motherboards... all working perfectly fine. […]
Show full quote

My collection of Suntac motherboards... all working perfectly fine.






Hi : )

I have got a board with pretty much the same layout as yours but there is no DIP Switch, making it hard to right config the 4 sipp (1mb each) I am trying to install. There is a space designed to be a DIP but it is empty. The supposed sw1 and sw2 have both a jumper each, the rest are empty.

The board POST appears to be normal with 1mb onboard.

I am planning to remove the 2 jumpers and add a switcher or just add more jumpers, but the question is which of the 3 contacts do I have to short?

zecahue wrote on 2023-04-21, 19:57:

Hi : ) […]
Show full quote

HanJammer wrote on 2019-06-25, 13:41:

My collection of Suntac motherboards... all working perfectly fine. […]
Show full quote

My collection of Suntac motherboards... all working perfectly fine.






Hi : )

I have got a board with pretty much the same layout as yours but there is no DIP Switch, making it hard to right config the 4 sipp (1mb each) I am trying to install. There is a space designed to be a DIP but it is empty. The supposed sw1 and sw2 have both a jumper each, the rest are empty.

The board POST appears to be normal with 1mb onboard.

I am planning to remove the 2 jumpers and add a switcher or just add more jumpers, but the question is which of the 3 contacts do I have to short?

Looking at the pictures (Re: Suntac 80286 Mainboards), board 2, 3, 4 & 5 all seem to be the same board. One of them has SIPP memory, the ohers DIPP. However, the switches that correspond with the two jumpers you have on your board seem to be same for all boards.

I guess you can try to jumper the two headers and see what happens?

Edit: this is the board from that post with the SIPPs installed (for anyone else who cares to take a look); download/file.php?id=65078&mode=view

zecahue wrote on 2023-04-21, 19:57:

Hi : ) […]
Show full quote

HanJammer wrote on 2019-06-25, 13:41:

My collection of Suntac motherboards... all working perfectly fine. […]
Show full quote

My collection of Suntac motherboards... all working perfectly fine.






Hi : )

I have got a board with pretty much the same layout as yours but there is no DIP Switch, making it hard to right config the 4 sipp (1mb each) I am trying to install. There is a space designed to be a DIP but it is empty. The supposed sw1 and sw2 have both a jumper each, the rest are empty.

The board POST appears to be normal with 1mb onboard.

I am planning to remove the 2 jumpers and add a switcher or just add more jumpers, but the question is which of the 3 contacts do I have to short?

I found even more of these Suntacs since the post with the pics above. All of them have these DIP switches. They are used to configure memory size but they show different behaviour on some of these boards. I would say - if your board works fine and detects all of 4 or 5 MB of installed memory (because some will support max of 1 in DIP chips or 4 in SIPP modules and some apparently can support both types at once, although I never tried to configure them like this) - leave it alone, there would be no advantage in installing more jumpers or dip switches.

Update... Well i have a pile (>10) of these suntac boards. All of them are dead. seems like the chipset and board were just not up to the Test of time. Shame as they could have been a nice board but are now a source of BIOS chips and RAM. They are a mix of DIP and SIP, Jumpers and switches.

Predator99 wrote on 2019-09-05, 22:05:

This one has BIOS "Award 0N3.03 NFS" with a "DISK STEP RATE" option. This is new to me, related to the floppy..? SUNTAC Award 0N […]
Show full quote

This one has BIOS "Award 0N3.03 NFS" with a "DISK STEP RATE" option. This is new to me, related to the floppy..?
SUNTAC Award 0N3.03 NFS.RAR
SUNTAC Award 0N3.03 NFS-A.JPG
SUNTAC Award 0N3.03 NFS-B.JPG

Can someone tell how to chance the C / H / S / P parametres on drive type 42 till 47.. I dont know how the switch to those columns.

Predator99 wrote on 2017-12-13, 17:15:

Hehe you cant compare this. When I remember 100 g of chocolate cost 0,49 DM in the 80s ... now its 1,29€ ;-) Therefore it would […]
Show full quote

Hehe you cant compare this. When I remember 100 g of chocolate cost 0,49 DM in the 80s ... now its 1,29€ 😉 Therefore it would be around 1000€. Which is still quite cheap for an up to date PC with Harddisk and Monitor.

Scanned the Manual.
TCI Trident Computer Inc. Oct 01 1987
Suntac TCI EMS-286.pdf

Wiring diagrams are exactly the same I posted above.

Is it possible to scan this sharper. I need it for diagnose. But its hardly readable.

Robin4 wrote on 2024-04-02, 02:22:

Is it possible to scan this sharper. I need it for diagnose. But its hardly readable.

Is that from Mainbaord-0016.jpg in the first page of the thread? This is not a problem with scanning, the original paper schematic is just poorly printed so some letters and digits have to be guessed. Nothing can be done about that unless someone finds (or draws) better quality schematic.

Original file looks better..

Predator99 wrote on 2024-04-02, 15:58:

Original file looks better..


Iam looking for the whole thing (layout) with the Keyboard controller (8742) on it too. I have to check these vias and traces if they all are working..

And that schematic is very handy for that purpose.

...

Predator99 wrote on 2017-11-24, 16:03:

Yeah got it :-) :-) :-) […]
Show full quote

Yeah got it 😀 😀 😀

Bought these (retro) hardware today

This is almost the exact board I was searching for a long time: ST62M02-B. The manual I posted above and belonging to my 1st Computer is a ST62M02-A. I remember the CPU was in standard PLCC socket and the DIPs were red.

Already desoldered the battery.

It came with an AMI Diagnostic BIOS I have not seen before:

(C)1987AMI,404-263-8181
01/03/88286-ROM DIAGNOSTICS.(C)1987, American Megatrends Inc.All rights reserved.
4025 pleasantdale road, Suite-320,GA.-30340, Phone-(404)-263-8181.

Will post the BIOS later...


Do you have the bios from this board?

Robin4 wrote on 2023-11-17, 12:23:

Can someone tell how to chance the C / H / S / P parametres on drive type 42 till 47.. I dont know how the switch to those columns.

Not sure if you got an answer to that or not but if the values are zeros and can't be changed it's probably a BIOS that can't accept custom values. In other words you need a HDD that matches one of the predefined entries, or exceeds the values and will not be fully used. In general these mobos/BIOSes expected MFM HDDs to be used. The easiest way to get around this problem (other than trying a different, newer BIOS) is to use XTIDE ROM extension or perhaps a SCSI card and HDD.

Deunan wrote on 2024-04-08, 10:15:

Robin4 wrote on 2023-11-17, 12:23:

Can someone tell how to chance the C / H / S / P parametres on drive type 42 till 47.. I dont know how the switch to those columns.

Not sure if you got an answer to that or not but if the values are zeros and can't be changed it's probably a BIOS that can't accept custom values. In other words you need a HDD that matches one of the predefined entries, or exceeds the values and will not be fully used. In general these mobos/BIOSes expected MFM HDDs to be used. The easiest way to get around this problem (other than trying a different, newer BIOS) is to use XTIDE ROM extension or perhaps a SCSI card and HDD.

Hi

Thank you for your reply.

Iam only know that a certain AMI bios have User Define type 47 settings for the harddisk.
Yeah i know about those predefined entrie HDDs.. Only dont like that small amount of HDD space in 2024. And matching old drives are hard to find.
I got a 40MB AT HDD that works with the board (only the Cylinder count is a little bit off) But i want a bigger drive like 200 - 420MB. Because most of the software is installed on the hdd anyway. (just for easy comfort)
I could override those bios settings to go with an ESDI driver (are hard to find now days) or SCSI driver (not very handy for the long run when the drive actually would fail, and have to look for another working drive.
Yeah iam looking for an other bios which matching the boards i have, but dont like the XTIDE stuf on those machines.

I was more looking if there was a Phoenix bios that also have those User define type 47 setting.. ( yeah i know that i have to look at the most recent bios as possible.)

I have added all ROMs I could find here:
Re: 80286 BIOS image collection

You should try MRBIOS, it has IDE autodetection.
