NonATX Power connector on a HP Compaq ML530 G1 \ VOGONS

NonATX Power connector on a HP Compaq ML530 G1

Topic actions

First post, by Jackhead

Posted on 2025-05-31, 12:26

Jackhead Offline

Rank Oldbie

Rank: Oldbie
Posts: 521
Joined: 2020-04-15, 12:10
Location: Germany

Im trying to find out what the pinout of this Power Connector is.
Its kind of ATX, it has the same length with a gap.
Anyone know more about this connector? What is the standard used for this?
I dont have any connector cables for it..

The server has also a Power board between the PSU and the Mainboard.

The attachment PXL_20250531_121154578.jpg is no longer available

The attachment PXL_20250531_121221305.jpg is no longer available

Dos 6.22: Asus VL/I-486SV2GX4 Rev 2.0 1Mb L2 - A5x86 X5 P75 - 64MB - AHA-2842A VLB - ET4000W32P VLB - CT2230 - GUS ACE - MPU-401AT with YucatanFX
Win98SE: Asus P5K-WS - E8600 @ 4,5GHz - Strange God Voodoo 5 6000 PCI-X - 2GB DDR2 1066 - Audigy 2 ZS

Reply 1 of 2, by Horun

Posted on 2025-06-01, 14:35

Horun Offline

Rank l33t++

Rank: l33t++
Posts: 6868
Joined: 2019-09-19, 02:19
Location: USA

Best guess is that power board splits the PSU odd pinout to the boards odd pinout.
PSU: 157793-001 HP 450W POWER SUPPLY FOR HP PROLIANT ML350 ML530 ML570 G1

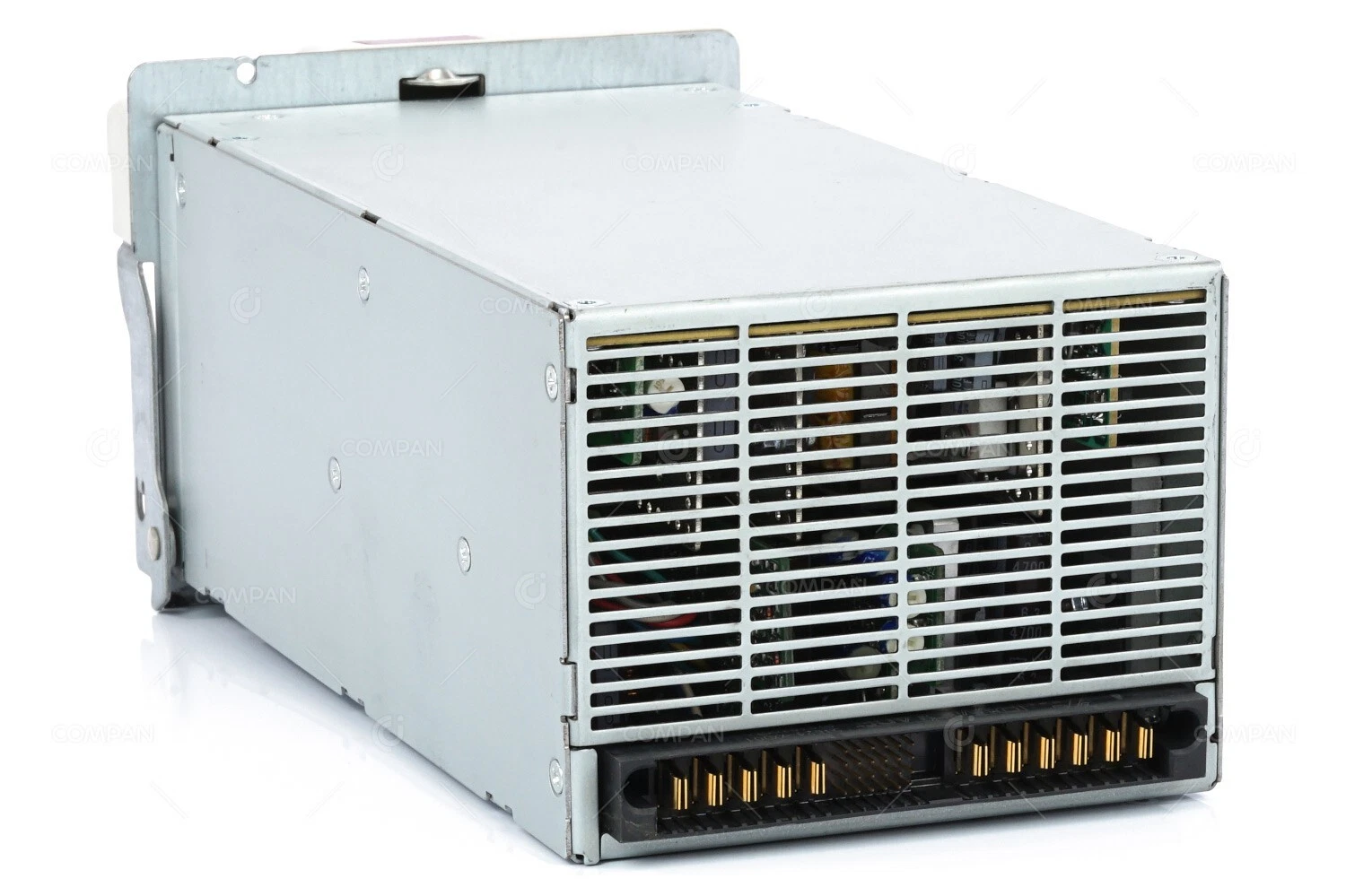

Picture of back of the PSU: https://i.ebayimg.com/images/g/IHIAAOSwkHJm2Yqc/s-l1600.webp
added: Can not find the pinout yet, maybe some one with better google skills can..

Hate posting a reply and then have to edit it because it made no sense 😁 First computer was an IBM 3270 workstation with CGA monitor. Stuff: https://archive.org/details/@horun

Reply 2 of 2, by Jackhead

Posted on 2025-06-02, 16:42

Jackhead Offline

Rank Oldbie

Rank: Oldbie
Posts: 521
Joined: 2020-04-15, 12:10
Location: Germany

i ordered me 2 cables from other Proliant server models. 1 x 10pin and one 12pin.
When they are 1:1, fit in the plug and dont have a twist they should work.
Im still missing the cable from the PSU to the Powerboard. Pretty sure a ATX PSU can deliver the same volatages.
