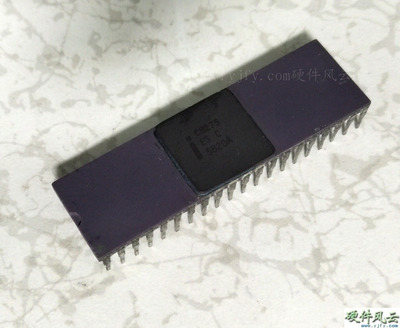

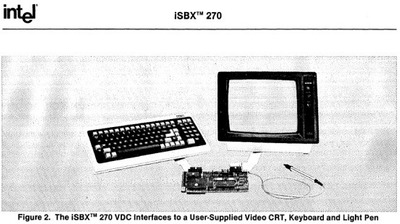

1.2 82720 Chip

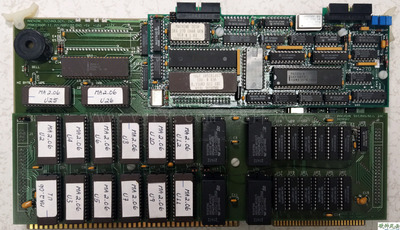

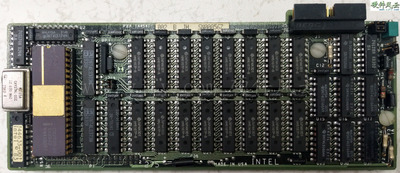

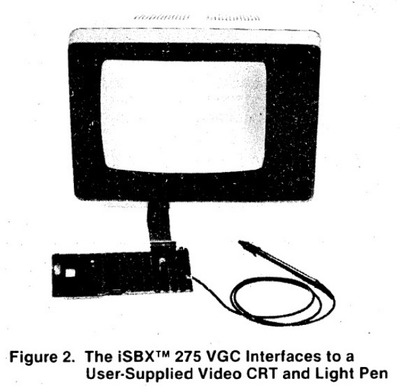

　　　Launched in 1982 iSBX275 VIDEO GRAPHICS CONTROLLER MULTIMODULE Board.The iSBX275 VGC contains 32K bytes of high speed display memory.

     Some people think that the iSBX275 is INTEL's first graphics card. Perhaps this view is from Intel Corporation annual report 1982:“The 82720 Graphics Display Controller enhances both development and execution speed of color graphics applications, making high quality color graphics affordable for general purpose business systems. It is the first in Intel's family of high-performance CRT controllers.”
　　　In 1981, after entering the PC era, intel did not immediately intervene in the field of PC graphics. Because Intel's main business is CPU, and Intel Single Board Computers an important task is to test and evaluate the CPU.

    NEC started the 7220 project in 1979 and released μPD7220 in 1981.NEC’s µPD7220 was the first integrated graphics controller chip.The chip aincorporated all the CRT control functions (known as the CRTC) as well as graphics primitives for arcs, lines, circles and special characters.At that time, the μPD7220 was very advanced. Intel was used to improve the display performance of the system. The μPD7220 directly cloned NEC was 82720.Announced in 1982, it was the first of what would become a long line of Intel graphics processing units.

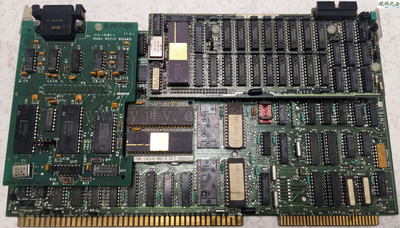

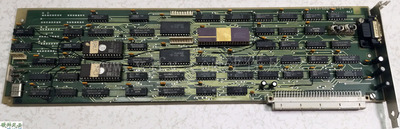

  The 82720 chip is also used in computer graphics cards, 1.13.120301-I4 graphics card of Robotron EC-1834.

1.3 82730 Chip
　　　In 1982, Intel introduced the 82730 chip. The Intel System Development Kit SDK-186 has 82730 chips. 82730 chip is Text coprocessor:Supports high-quality text displays with proportional spacing, subscript/superscript, character attributes, etc.Supports high-quality graphics with manipulation and display of bitmap strings.

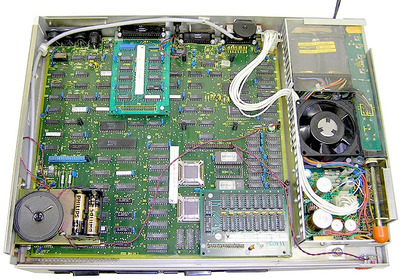

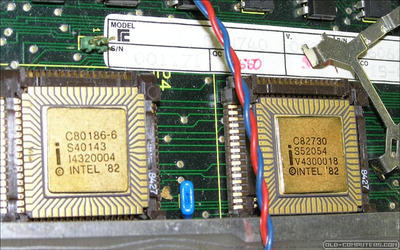

　　　The picture above shows the C82730 chip used on the REGNECENTRALEN RC759 PICCOLINE computer. Intel 80186 (or 80186) is Intel's embedded market for industrial control/communication. It is very rare for PCs like this, let alone the 82730 chip application.
　　　

(Source from www.old-computers.com collectibles)

1.4 82716 Chip

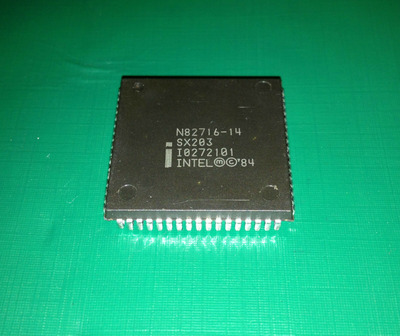

　　　The 82716 chip appeared in 1984.It is a video storage and display device. It is a low cost, highly integrated video controller. It displays texts and graphics. It can manage upto 16 display objects on the screen at any time. It can select upto 16 colours from a range of 4096.It contains on-chip DRAM controller and on-chip D/A converters. It can support upto 512 KB of display memory. It is compatible with 8.and 16-bit microprocessors and microcontrollers.
    I have not seen the graphics card of the 82716 chip, maybe it is used on professional equipment.

　　　　(Image courtesy of hitech-components from eBay.com)

1.5 82786 Chip
　　　In 1986, Intel introduced the 82786 chip, the first discrete graphics coprocessor. The 82786 integrates a graphics processor, a display processor with a CRT controller, a bus interface unit (BIU), and its DRAM/VRAM controller. Support 4 MB of DRAM / VRAM memory. Supporting up to 256 colors, systems with multiple 82786 designs can support virtually unlimited colors and resolutions.

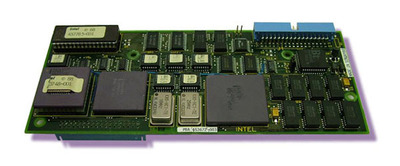

　　　The 82786 chip is used in the iSBX279 of the Intel Single Board Computers system.
　　
　　　(from www.intel-vintage.info)

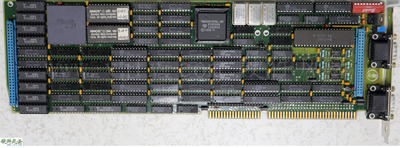

　　　The A82786 chip has also been produced by many manufacturers, such as the NUMBER NINE Pepper graphics card of the ISA interface of the PC system.

　　　　There is also COPLE SPACE graphics card from APPLE's NUBUS interface MASS MICRO SYSTEMS.

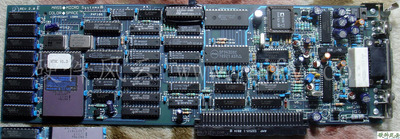

COLOR SPACE

    It is a CHMOS graphics coprocessor. It is compatible with all Intel microprocesors. It can support multiple graphics applications from multiple graphics bitmaps. It has high speed character drawing, fast polygon and line drawing capability. It can support upto 200 MHZ CRTs. It provides upto 256 simultaneous colours. It contains DRAM/VRAM controller for graphics memory upto 4 MB. It contains shift registers and DMA channels. It is a powerful device developed for microcomputer applications including PCs, engineering workstations, terminals and laser printers. High integration makes it cost-effective.

1.6 i750 Chip
    Intel's i750 chip consists of i750PA (82750PA pixel processor) and i750DA (82750DA display processor). The technical parameters are:The 82750PA is a 25 MHz wide instruction processor that generates and manipulates pixels. When paired with its companion chip, the 82750DA, and used to implement a DVI Technology video subsystem, the 82750PA provides real time (30 images/sec) pixel processing, real time video compression, interactive motion video playback and real time video effects.
　Intel's i750PA/DA chip was made in December 1986. The i750 design is so advanced that it is only viewed by DVI Technology (Digital Video Interactive), with the DVI (Digital Video Interactive) concept (all digital sound, text, graphics processing system, can support a variety of multimedia information sources and information formats.) Developed a DVI Pro 750 graphics card. Intel is optimistic about this concept and is more optimistic about the development prospects of digital multimedia technology. On November 14, 1988, it acquired the pioneer of digital media DVI Technology.

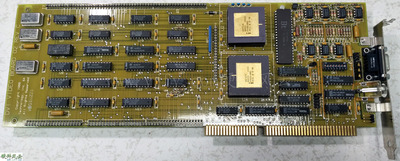

The picture below shows the main card of the DVI/intel Pro 750 graphics card. The full set has 3 ISA interface boards and 3 daughter cards.

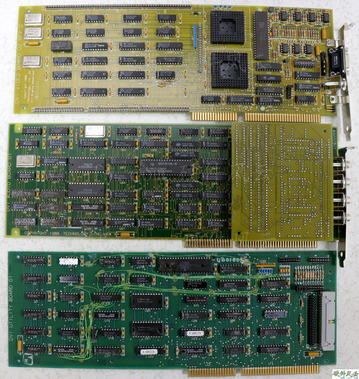

   The full DVI/intel Pro 750 is at least 3 boards (Video, Audio, Utility/CD-ROM) and 3 daughter cards（Video Digitizer, Audio Digitizer, 4MB of VRAM memory） “actually three boards (Video, Audio, Utility/CD-ROM) in three slots (with possible overhang), plus add-in piggyback modules for a Video Digitizer, Audio Digitizer, and 2 GB of VRAM memory.” DVI/intel Pro 750.

　 In my collection of DVI/intel Pro 750 engineering samples, the date is the Utility card and the PCB date is 8809. Explain that in March of the same year, DVI has produced the Pro 750 prototype card, but it was not officially released by INTEL and Microsoft until July 21, 1989.

1.7 KAMA 芯片
　　　See only the Vlask collection of Intel Kama graphics cards from www.vgamuseum.info.
　　　Kama
　　　
　　　Failed to find information about the KAMA chip. However, it is judged from the shape and label of the chip that it is associated with the i750DB chip.
　　　The KAMA chip is labeled as:
　　　KAMA SX094
　　　K8909B-25 V1.6
　　　I9082207
　　　INTEL m ©  '87
　　　Can be seen:
　　　The "-25" in K8909B-25 has a meaning of 25MHz. It can be seen that it is also a display processor.
　　　2. I9082207 shows that the production date is 08th week of the year 89.
　　　3, INTEL m © '87, indicating the development of 87 years, i750DA, PGA pin structure developed later than 86 years. In 1989, the i750DB chip was upgraded to the PQFP patch structure.
It can be seen that the KAMA chip is based on the i750DB chip and is improved using the DRAM memory display chip.Also similar to the 82706 chip.

1.8 82716 chip
This chip and graphics card are not seen. There is a small amount of information on the Internet showing that the 82716 chip appeared in 1987, and there are some data:t is a video storage and display device. It is a low cost, highly integrated video controller. It displays texts and graphics. It can manage upto 16 display objects on the screen at any time. It can select upto 16 colours from a range of 4096.It contains on-chip DRAM controller and on-chip D/A converters. It can support upto 512 KB of display memory. It is compatible with 8.and 16-bit microprocessors and microcontrollers.

1.9 82706 芯片
    Intel launched 82706 in 1988.    It is an Intel video graphics array(VGA)compatible display controller for IBM PC/XT/AT and PS/. All video monitors developed for IBM PS/2 system are provided with VGA controller. The 82706 can support 256 KB video memory. It is designed to be compatible with 80286 and 80386 and other microprocessors. It has EGA/CGA/MDA BIOS compatibility. It acts as CRT controller and video memory controller.
    Only Hercules VGA card is made by Hercules with this chip.
Hercules VGA


1.10 i860 Chip
 On February 27, 1989, Intel launched the i860. At that time, i860 was the most advanced 64 bit microprocessor, adopting RISC design technology, which was a general-purpose high-performance microprocessor. It integrates the core components of integer RISC, floating-point processing, page memory management, instruction cache, data cache and 3D image processing into a VLSI microprocessor. In short, i860 is like core I3 / i5 in 20 years. Advanced design leads to its high price, and its graphics card only appears in the high-end professional field.
  DATAPATH DGC0BD

2. The first fledgling (1989-1996)
   I introduced the i750 chip in the previous section. After Intel acquired DVI, the DVI Pro750 graphics card was renamed Intel Pro750. However, INTEL is very dissatisfied with the design of the PRO 750 graphics card, and re-developed the ACTIONMEDIA series of graphics cards, thus officially entering the field of PC graphics.
The Intel i750 graphics card project lasted for 6 years and it is obvious that it is doing its best. In order to expand the impact, even with the PC giant IBM. Unfortunately, in the era of the heroes, Intel's efforts still have no breakthroughs, gradually disappeared. So senior hardware enthusiasts only think that Intel's first graphics card starts with the i740 chip...
2.1 ACTIONMEDIA 750 Series Graphics Card
ACTIONMEDIA can be understood as universal media. The first generation of ACTIONMEDIA graphics cards was the migration of Intel Pro 750 commercial digital media development technology to the consumer consumption digital multimedia graphics card ACTIONMEDIA 750.
2.1.1 ACTIONMEDIA 750 Prototype Card DS1AT
  In March 1987, a chip evaluation board for the i750 chip, codenamed Tower, was made.The i750 product evaluation board DS1 was not developed until 1989.The CS1 Delivery Board is matched with the DS1Capture Board.
   DS1-AT is the ISA interface version prototype card. This board is missing the original i750 chip, specially purchased the Intel i750PA/DA chip, and the other two are missing VLSI VTG8001/8002.
DS1-AT Prototype

DS1-AT & CS1AT

　　　    The board below is a blank PROTOTYPE board without a chip.Also very rare.
DS1-AT PCB Board


2.1.2 ACTIONMEDIA 750 ISA Version Engineering Sample
　　　The ACTIONMEDIA 750 attracted widespread attention after its display at the COMDEX/Fall '89 show from November 13 to 17, 1989.
ACTIONMEDIA 750 Engineering Sample

ACTIONMEDIA 750 & CS1AT


2.1.3 ACTIONMEDIA 750 MCA Version Engineering Sample
　　　The MCA interface ACTIONMEDIA 750 DVI once appeared on behalf of the ACTIONMEDIA series on March 5, 1990, "INFO WORLD", the only ACTIONMEDIA 750 DVI picture that can be seen on the Internet.
 ACTIONMEDIA 750 MCA Version Engineering Sample

ACTIONMEDIA 750 MCA Version & CS1MCA

2.1.4 ACTIONMEDIA 750
At that time, both Intel Pro 750 and ACTIONMEDIA 750 were "Only available in limited quantities", making it difficult to see pictures of these products.
The picture below shows the boxed ACTIONMEDIA 750, with a lot of floppy disks, CDs and manuals attached.



The ACTIONMEDIA 750 documentation contains the prototype card information for ACTIONMEDIA II. It can be seen that the ACTIONMEDIA 750 is just a transitional product. This buyer spent $9,998 to buy but has never used it.
　　The following is a schematic diagram of the connection used. It can be seen that the ACTIONMEDIA 750 can be used as a discrete graphics card.



　　The boxed ACTIONMEDIA 750 has 3 boxes, which are quite large. Below is a comparison of the boxed cards of the ACTIONMEDIA series. The first column is ACTIONMEDIA 750, and the second and third columns are the ACTIONMEDIA II and Smart video Recorder in the next section.


2.2 ACTIONMEDIA II Series Graphics Card
　　In the late 1980s, the patch manufacturing process of the board was mature, and intel was naturally the leader. The i750PA/DA chip of the PGA pin structure is upgraded to the i750PB/DB chip of the PQFP chip structure, and the chip package is changed from a gold seal to a plastic package.
2.2.1 INTEGRATOR Chip Evaluation board
　　   Based on the mature design of the previous generation, the chip evaluation board INTEGRATOR was developed. So the INTEGRATOR looks like the ACTIONMEDIA 750 DVI for the replace chip, or the CS1 card.
INTEGRATOR Chip Evaluation board

　　　The ISA interface version of the detachable Chip Evaluation board INTEGRATOR's two i750PB/DB chips are ES.


2.2.2 INTEGRATOR Chip Evaluation Board MCA Version
The figure below shows the INTEGRATOR of the MCA interface version. The i750PB/DB ES chip date is very early.
INTEGRATOR Chip Evaluation board MCA Version

　　　The release date of the ACTIONMEDIA 750 DVI was officially released in March 1990. From the above figure i750 chip date 9014, it can be seen that at least on the ACTIONMEDIA 750 DVI release date, Intel began to work on the development of ACTIONMEDIA II. The unsuccessful ACTIONMEDIA 750 DVI has a lot to do with Intel's lack of effort in making this project a transition. The INTEGRATOR of the MCA interface above has another unusual point, that is, most of the chips on the card may be blacked out due to confidentiality. Obviously it has been shown, it is estimated to pull the IBM cooperation together with the deputy card to demonstrate the feasibility of the project.
　　　MCA Interface Version The secondary card of the INTEGRATOR is the secondary card CS1MCA that directly uses the previous generation ACTIONMEDIA 750 DVI.


2.2.3 DS2AT Product Evaluation board
    ACTIONMEDIA II was released on October 17, 1991 and was exhibited at COMDEX Fall '91 on October 21-25, 1991 and won the Best of Show Award and Best Multimedia Product Award. Intel's ACTIONMEDIA II graphics card is to further optimize the structure of the ACTIONMEDIA 750 DVI primary and secondary cards as the main daughter card structure, and also designed three QFP-structured i750 series auxiliary chips for the i750PB/DB chip. These 5 chips are:
82750PB pixel processor 82750DB display processor 82750LA Keying and Audio Gate Array (KAGA) 82750LH Host Interface Gate Array (HIGA) 82750LV VRAM SCSI Capture Gate Array (VSCGA)
DS2AT Product Evaluation board

CS2 Prototype

 2.2.4 DS2MCA Product Evaluation board
　　　The ACTIONMEDIA II Product Evaluation board is codenamed DS2. The following MCA interface version ACTIONMEDIA II is DS2MCA, which has five i750 chips. The i750PB/DB is obviously the ES version. The only three codes of the ceramic seal are not the unlabeled models. It is the ES chip of the early i750LA/LH/LV.
 DS2MCA Product Evaluation board


2.2.5 ACTIONMEDIA II Engineering Sample ISA Version
ACTIONMEDIA II Engineering Sample ISA Version

2.2.6 ACTIONMEDIA II Engineering Sample MCA Version
ACTIONMEDIA II Engineering Sample MCA Version

CS2 Engineering Sample

2.2.7 ACTIONMEDIA II Qualified Product
ACTIONMEDIA II Qualified Product

子卡盒装

http://www.yjfy.com/images/oldhard/video/QUAKR.jpg2.3 ACTIONMEDIA III Series Graphics Card
    Around 92 years, Intel began to develop ACTIONMEDIA III.ACTIONMEDIA III was originally designed to be the same as the ACTIONMEDIA II as the main daughter card structure, and later adjusted to a single card.
2.3.1 QUARK Chip Evaluation Board
   ACTIONMEDIA III should update the i750PB/DB and launch the i750PC/DC Chip Evaluation board. In fact, it is an evaluation of the update of the auxiliary chip. Presumably, the chip to be evaluated integrates the functions of the original 82750LA, 82750LH, and 82750LV3 chips. The chip to be evaluated should be i750SN, which will be introduced later.
 QUARK Chip Evaluation Board

2.3.2 QUARK II Chip Evaluation Board
QUARK II Chip Evaluation Board

　　　QUARK's REV 2 version compared with the above REV 1 version, QUARK's REV 2 version of the chip evaluation board is about one-third wider than the REV 1 version of the standard ISA full-length board, the extra place is loaded two One function, one on the right, is the function chip evaluation board area of ​​the daughter card, and the function of the daughter card is directly extended on the main card. As the integration level is improved and the memory is processed in two slots, the ISA interface master card has enough functions to directly accommodate the daughter card, and the daughter card function can be cut by the empty soldering。
Chip evaluation board QUARK 2.5 chip in order i750PB, i750DB, F122164PPM and TC160G54ES, this TC160G54ES chip is very special, Intel not only set a PGA chip socket on the graphics card, but also equipped with a DVI THUMPER secondary card to deploy. This interface has not been made on the QUARK 2.5 graphics card, but the above socket can be indirectly debugged using Altera's EPM7192GC160-1 PGA chip that has been processed by the DVI THUMPER secondary card.
QUARK II Chip Evaluation Board & DVI THUMPER

    The i750 chip project began in 1986 with the i750PA/DA chip, and finally the 1993 i750PD chip, which lasted 8 years. The i750 chip was undoubtedly excellent at the beginning of its birth. Intel did not update or replace the PCI interface. In the latter stage, its excellent performance index became a congenital deficiency. In the end, it had no potential to be dug and had to end. The 2D graphics project of Intel's i750 chip is also finished. This was followed by the development of video cards.
