#: 112
Manufacturer/Identifier: NO NAME
Chipset: OPTI 82C495SX
BIOS/Version: AMI
BIOS ID : 40-0101-001107-00001111-060692-OPWB4SXB-F

Images : W27C512

#: 113
Manufacturer/Identifier: 386-GT OPTIMUS
Chipset: VT82C486
BIOS/Version: AWARD
BIOS ID : 10/22/93-VT82C486-214L1000-00

Images : W27C512

#: 114
Manufacturer/Identifier: NO NAME
Chipset: MXC306AFC , MX83C305AFC
BIOS/Version: AMI
BIOS ID : 30-0200-001453-00101111-111192-MXIC-F

Images : W27C512

#: 115
Manufacturer/Identifier: LMI04101
Chipset: HT321/B , HT322/B
BIOS/Version: PHOENIX
BIOS ID : LMI04101 IT9203

Images : W27C512

#: 116
Manufacturer/Identifier: M321 REV3.0
Chipset: PCChips 4L40F1282 (CHIP 5) , PCChips 4L04F1666 (CHIP6) , PCChips 82C206
BIOS/Version: AMI
BIOS ID : 30-0201-ZZ1347-00101111-050591-M320-8

Images : W27C512

#: 117
Manufacturer/Identifier: NO NAME 386SX / 40MHZ
Chipset: ALI M1217-40
BIOS/Version: MRIBIOS
Photo:

Images : W27C512

tomaszdko wrote on 2023-09-30, 23:07:

#: 117 Manufacturer/Identifier: NO NAME 386SX / 40MHZ Chipset: ALI M1217-40 BIOS/Version: MRIBIOS […]
Show full quote

#: 117
Manufacturer/Identifier: NO NAME 386SX / 40MHZ
Chipset: ALI M1217-40
BIOS/Version: MRIBIOS

Acer makes crisp little boards don't they?

I'm still looking for the MR Bios M1209 images referenced in this legend ...

https://docs.google.com/spreadsheets/d/1vtPso … dit?pli=1#gid=0

#: 118
Manufacturer/Identifier: M321 REV2.5
Chipset: PCChips 4L40F1282 (CHIP 5) , PCChips 4L04F1666 (CHIP6) , PCChips 82C206
BIOS/Version: AMI
BIOS ID : 30-0201-ZZ1347-00101111-050591-M320-F

Images : W27C512

#: 119
Manufacturer/Identifier: QD-U386DX
Chipset: UM82C481AF , UM82C482AF , UM82C206F
BIOS/Version: AMI
BIOS ID : 30-0200-428003-10101111-070791-UMC480A-F

Images : W27C512

#: 120
Manufacturer/Identifier: 8517 REV2.1
Chipset: ALI M1217 A1
BIOS/Version: AMI
BIOS ID : 30-0100-428029-00101111-070791-ACER1217-H

Images : W27C512

This is a variant of the motherboard of the Multitech / Acer MPF-PC 1100-16
The series were one of the first 386 models next to the Compaq 386 and they were manufactured at least for demonstration and exhibition purposes before the end of 1986.
My even older board has Multitech at the bottom left of the 1100/16 label. At that time this was covered with a layer of white varnish and ACER lettering. This shows that there was excess stock from 1986 before the renaming from Multitech to Acer. Both motherboards in my possession have the same bios version.

As in the original version, this is the 386 with 16 Mhz but without the 387 processor

Acer has fitted 1024Kb plus parity RAM on the board

Acer has listed the lower of the two memory expansion cards for expansion in the Technical Reference Manual

here is the view of the bios ( CTRL-ALT-ESC )

#: 122
Manufacturer/Identifier: Tandon MYSA-002
Chipset: VL82C311 SCAMP-SX
BIOS/Version:
BIOS ID :

#: 123
Manufacturer/Identifier: V-1 P9-8M
Chipset:
BIOS/Version:
BIOS ID :

https://theretroweb.com/motherboards/s/dataex … -80386-sx-16-20

#: 124
Manufacturer/Identifier: DFI 386-33EC
Chipset: ETEQ ET82C491/2A "COUGAR"
BIOS/Version: AMI 386 BIOS PLUS 05/05/91
BIOS ID: 30-0400-ZZ1211-00101111-050591-ET/386H

#: 125
Manufacturer/Identifier: Intel, made in Japan, Product ID: "PB-455103-001"
Chipset: 2x 8237, 2x 8259, 8253, 8742, LS612 address extender, 64KB cache SRAM
BIOS/Version: Phoenix

BIOS screens:

ZIP with images

erocdraH_XAM wrote on 2023-12-25, 16:53:

In addition to my post I have something very important here, for the early versions of the MPF-PC 1100/16 which can be recognized by the 4 Rom sockets. the jumper setting is very different and misleading to the one found on the Internet.
A sticker with the positions and jumper settings is located in the housing cover ex works.

A further note should also be made: some of the mainboards appear to require the lock for operation. I have a version (following post) where the key switch has 3 positions and in one position the computer shows no screen display and no error message.

Now I am also pleased to have received a later version of the mainboard and I would also like to show it here.

The mainboard is labeled 1100/16/SE (88110) M8 48.11016.201F.
The layout looks similar at best at first glance, but is different in many places.

The first detail is that there are only 2 ROM sockets, which are numbered U9 and U10 in relation to the numbering further forward.

This version is also equipped with 16 Mhz, the lock like a sticker on the board, possibly indicate that it could be an OEM product for a Siemens PC or an industrial machine.
However, I could not find any information on the Internet.

On closer inspection, it is also noticeable that the circuits of the chipset (top left) are distributed differently. I have not yet made a deeper comparison.

In addition to facelift innovations, there is also technological progress. At the bottom right there are no longer 4 ram banks containing a total of 1024Kbyte Dram, but it is now permanently equipped with 16x256k DIP20 Drams from Oki and has 8x256k DIP16 as parity. and it could be upgraded from 2 to 4 megabytes of RAM with the same amount.

my first action was to backup the Bios ROMs and a first bootup test. The Bios layout looks almost identical and without having read out the hard disk table there are again type 1-47 and type 60-83, but there were also empty values in the table for the types (do not confuse with userdefined)

#: 127
Manufacturer/Identifier: PCChips M396F ver. 3.0
Chipset: SARC RC2016A5
BIOS/Version: AMI (06/06/92) VER. 5.20
BIOS ID: X0-0100-000000-00101111-060692-2016A
BIOS Sign-on: AMIBIOS (C)1992 American Megatrends Inc., VER. 5.20

Working BIOS ROM dump for AMI BIOS VER. 5.20:

#: 128

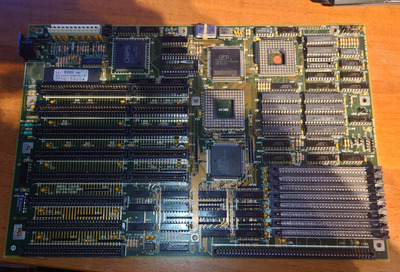

I have 1 unknow board to identify- First i need to help to identify it and after i can post a bios (unless of use of some programmer). With a bit of luck we if we identify it we could be able to find bios online.
Multiple photos so i created own identify thread there are all other labels and text info:
386 mainboard identification help , it has Opti 82C381 + 82C382 chips

Manufacturer/Identifier: Unknown - 386XO cache
Chipset: main Chips used - Opti 82C381+82C382
BIOS/Version: AMI

ruthan wrote on 2025-12-01, 03:43:

#: 128 I have 1 unknow board to identify- First i need to help to identify it and after i can post a bios (unless of use of some […]
Show full quote

#: 128
I have 1 unknow board to identify- First i need to help to identify it and after i can post a bios (unless of use of some programmer). With a bit of luck we if we identify it we could be able to find bios online.
Multiple photos so i created own identify thread there are all other labels and text info:
386 mainboard identification help , it has Opti 82C381 + 82C382 chips

Manufacturer/Identifier: Unknown - 386XO cache
Chipset: main Chips used - Opti 82C381+82C382
BIOS/Version: AMI

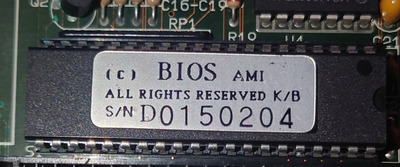

Well in my opinion, what you think is the BIOS chip (in the photo), it is actually the BIOS chip of the keyboard, the real BIOS chip is not there, it should be between the two square chips, one is a chips.
